9-3/16" (23.34cm)
GENERAL DESCRIPTION:
INSTALLATION:
Lighting Systems
NOTES:
1.
Tools needed: hacksaw, screwdrivers, drill & pliers.
2.
Self-driving type "tek" screws may be used in certain
applications to assist in installation and preparation.
3.
Be sure to keep fixture runs "As straight as possible"
8-1/4"
for best results.
(20.96cm)
We reserve the right to change details of design, materials and finish.
IS_CD12

Advertisement

loading
Need help?

Need help?

Do you have a question about the IS_CD12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lightolier IS_CD12

Summary of Contents for Lightolier IS_CD12

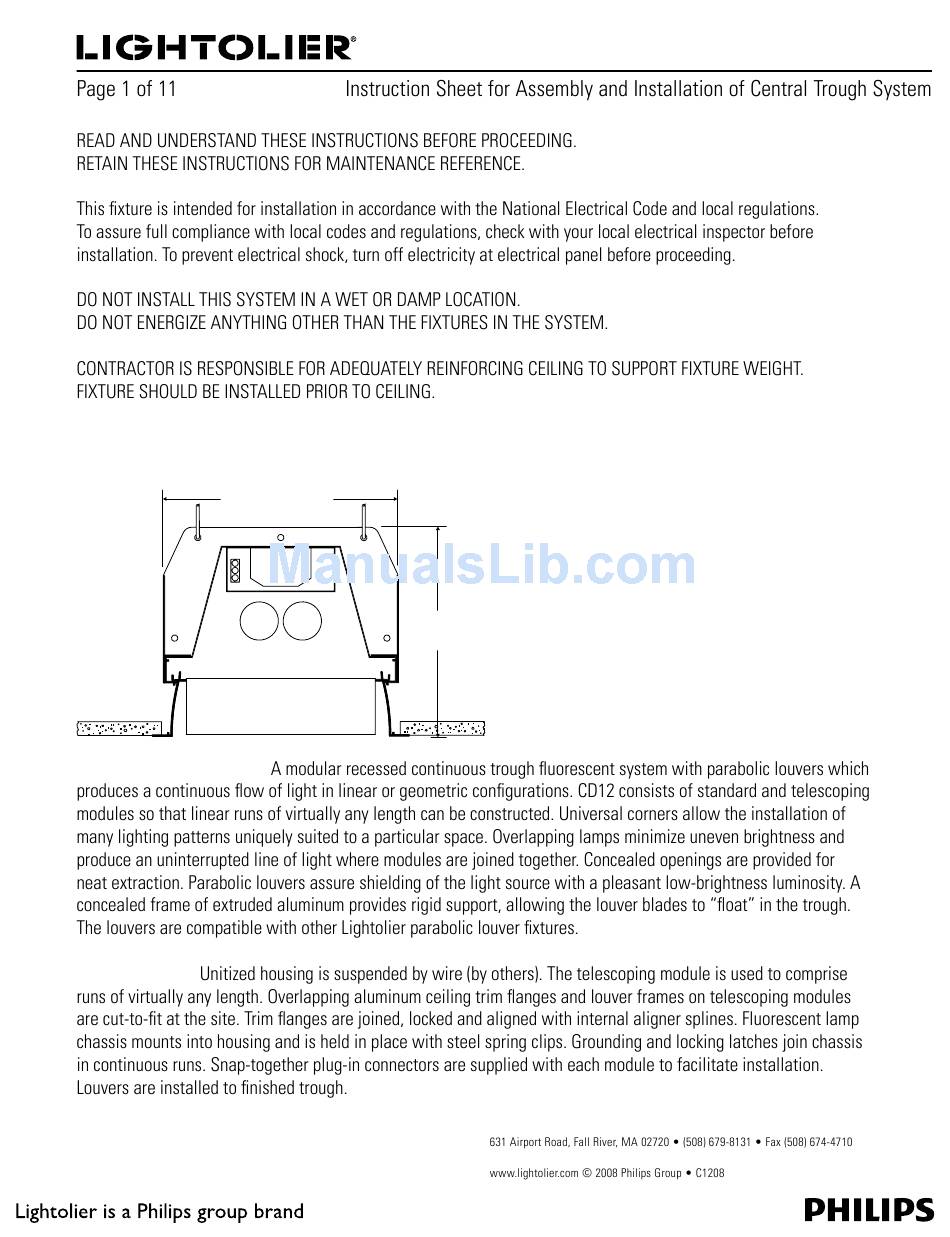

  • Page 1 Self-driving type “tek” screws may be used in certain applications to assist in installation and preparation. Be sure to keep fixture runs “As straight as possible” 8-1/4" for best results. (20.96cm) We reserve the right to change details of design, materials and finish. IS_CD12...
