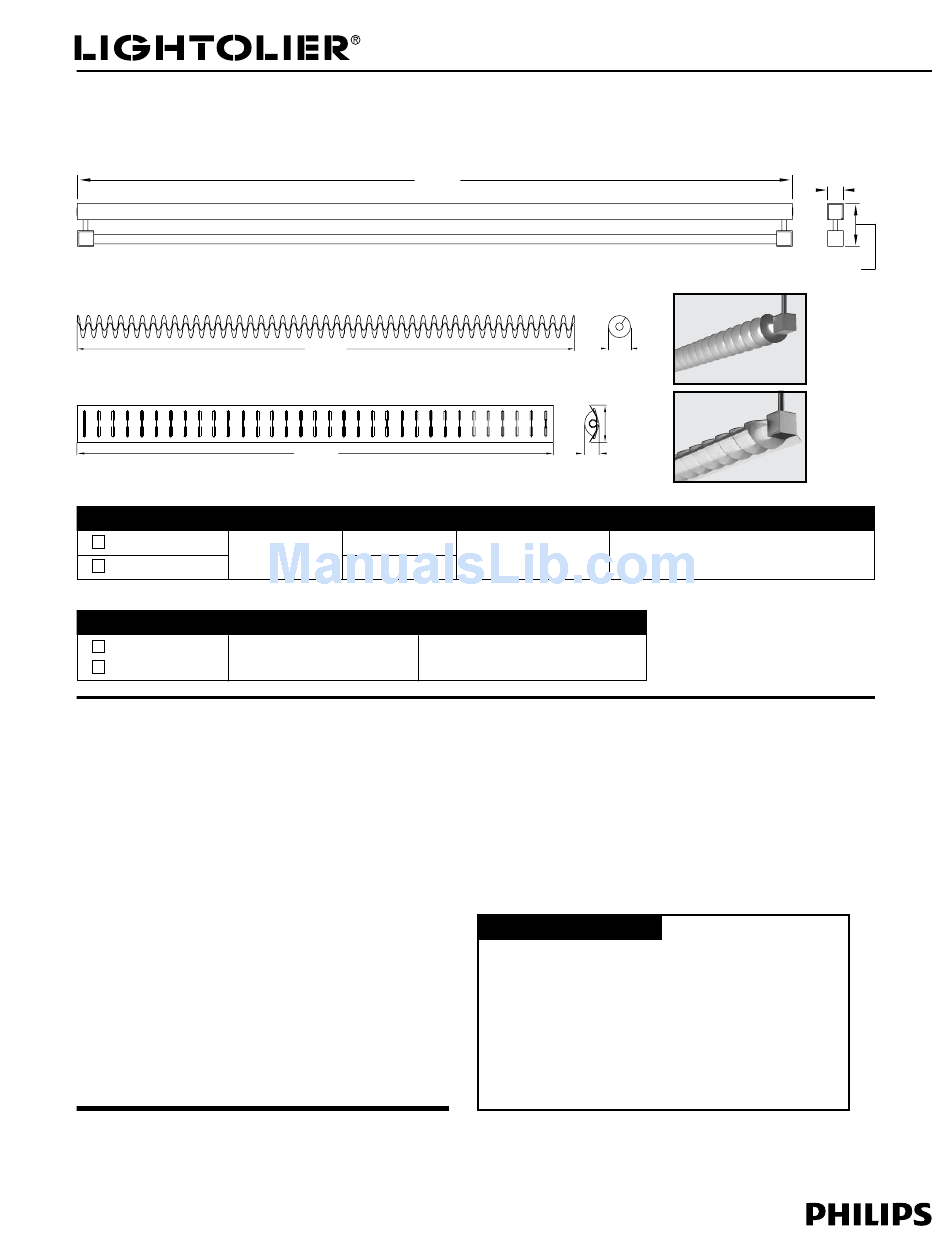

Lightolier SL110B Specification

Page 1 of 5
Dimensions
Louver accessories
Spiral Louver
Orbit Louver (1 part)
Ordering guide
(complete luminaire consist of unit & power feed)
Cat. No.
SL110A28IA1
SL110A28IA2
Accessories/Options
Cat. No.
SL002ALG Spiral Louver
SL002C Orbit Louver
Features
Stand-Off Unit: 2-3/4" overall height, meets ADA requirements.
Channel: 1" x 1" brushed and anodized extruded aluminum ballast channel.
Provided with KO's and threaded holes to accept all mounting accessories.
Cover: Brushed and anodized aluminum ballast cover. Press-fit installation.
No visible hardware.
Multi-fonction bloc (2): Retains lampholder to the ballast channel. Also
functions as a wireway for continuous rows and patterns. Brushed and anodized
aluminum finish.
Lampholder Stem: Small 5/16" diameter aluminum wireway stem for lampholder,
suitable distance to permit the installation of the shielding options. Hold in place
by ball plungers to ease relamping.
Lampholder Housing (2): 1" square brushed and anodized aluminum with turret
style locking socket.
Mounting
Direct Mount: Square canopies or invisible feed suitable for plaster ceiling, exposed
ceiling or T-Bar ceilings mounts. See details on page 2.
Suspended Mount: Single stem or aircraft cable with round canopy suitable for mounting
on a standard outlet box for plaster ceiling, exposed installation or T-Bar ceilings mounts.
Stem and cable mounts can both be used on the same fixture.
Wall Mount: can be wall mounted vertically or horizontally.
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2008 Philips Group • SL110B.pdf
Lightolier is a Philips group brand
46-3/16"
(1173mm)
44-1/2"
(1130mm)
43-1/2"
(1105 mm)
Lamp Volts
120V
1 -28W T 5
277V
Description
www.lightolier.com
2"
(51mm)
3-1/2"
(89 mm)
1-3/8"
(35 mm)
Description
4 ft Bare Lamp Flush unit
Finish
Textured light grey (paint)
Semi-diffused aluminum anodized
Labels
cULus Certified. Suitable for damp locations.
Electrical
Ballast: Electronic rapid start extra slim profile 1 lamp 28W T5 linear ballast. Not available
in universal voltage.
120V: 0.25 amps
277V: 0.11 amps
Lampholder: G5 plug-on base, miniature Bi-pin.
Finish
Natural brushed and anodized aluminum. All suspension parts and Spiral louver painted
with powder coat paint process.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Canlyte
3015 Louis-Amos, Lachine, Québec H8T 1C4 • (514) 636-0670 • (514) 636-0460
SL110B
KUBIK 1.0
Bare Lamp Stand-Off Unit
1-28W T5 Linear
(25mm)
2-3/4"
(70mm)
SPR: Add to unit. The
Spiral louver produces
refined, effective lengthwise
shielding to minimize
add to direct view of
the light source.
ORB: Add to unit. The
Orbit louver displays perfect
balance as it rotates into
any number of positions
from uplight to downlight
to wall washing.
(Position shown below).
Finish
Brushed and Anodized Aluminum
Type:
www.canlyte.com
1"
