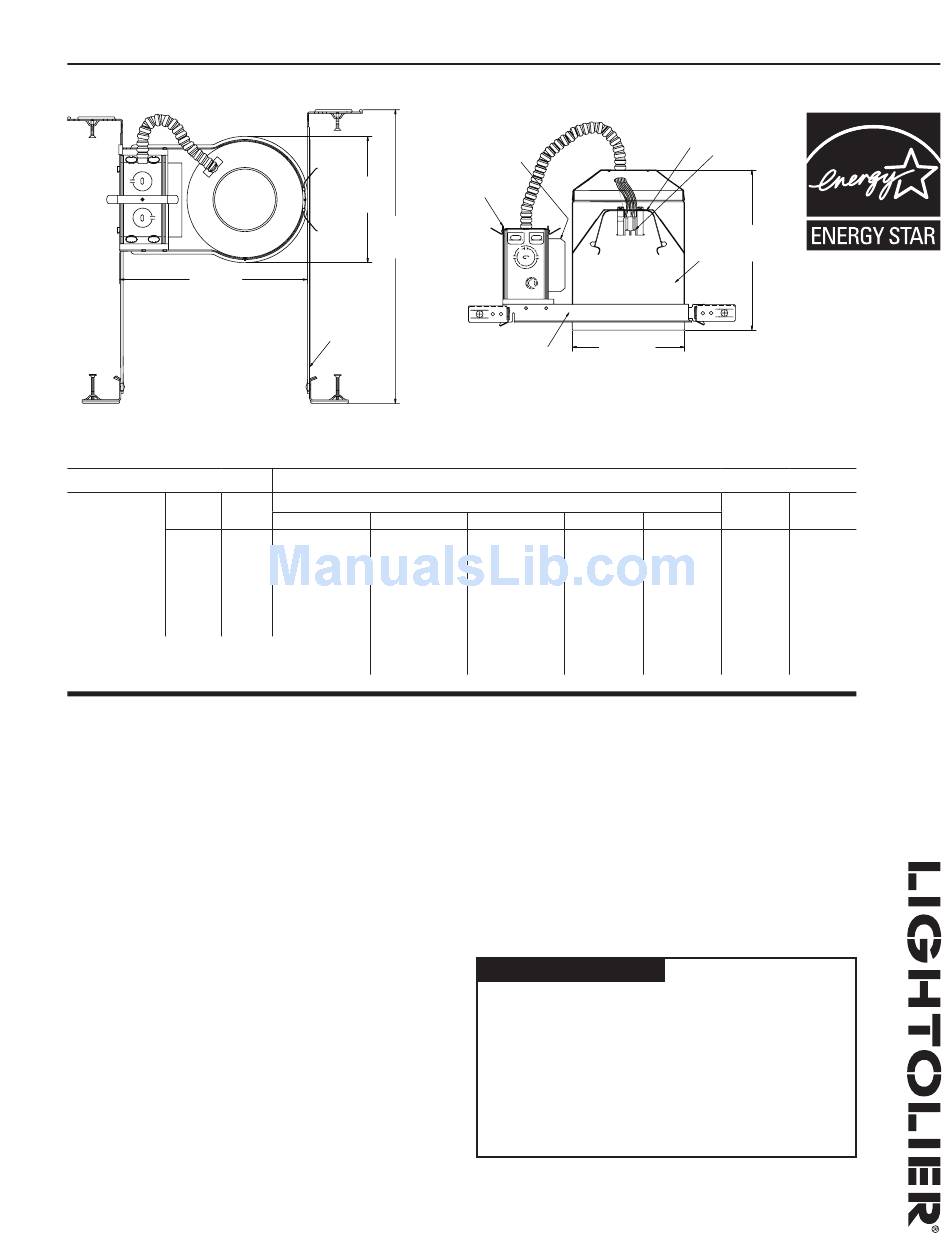

Lightolier Lytecaster 1004F26ES Specification

Page 1 of 1 5" Aperture
9"
OVERALL
LENGTH
Ceiling Opening 5 3/8" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage Lamp
1004F26ES 120V 26W
Quad or
1004F26ESN
Triple
Tube
* Recommend Triple Tube Lamp for Optimal Performance
** Use Triple Tube Lamp Only.
Features
1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Mounting Frame: .048" (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
cable without tools or additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after
a slight field modification (see Instruction Sheet). Features integral
self-tapping phillips screws for secure attachment to wood or metal
construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
6. Socket: (4 Pin, GX24q-3) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
7. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
Electrical
Input Watts: 27
Amps: .47
Ballast Factor: 1.0
Lytecaster Recessed Downlighting
®
0
1 Lt 26W Quad / Triple Tube Compact Fluorescent IC Frame-In Kit
®
5 3/4"
OVERALL
WIDTH
13" MIN.
24" MAX.
4
Reflector Trims — See Individual Reflector Trim Specification Sheets
Anodized Reflector Anodized Cone
1045* 1012*
1046* 1012NM*
1046CD* 1013*
1013BK*
1013BKNM*
1013CD*
1013CDNM*
1013NM*
1013WH*
housing minimizes
®
®
qualified.
®
7
3
5"
APERATURE
2
Open Downlight
Satin Cone Baffles
1008* 1005*
1008NM* 1005BNM*
1010* 1005NM*
1010NM* 1005WH*
1076*
1076WH*
Electrical (cont.)
Power Factor: 98
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal Kit: LAS56 (Optional)
®
Note: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
1004F26ES
5
6
7 1/2"
OVERALL
HEIGHT
1
Enclosed Wall
Diffusers Washer
Basic White
1071* 1021 1035**
1024 1035WH
1078** 1085**
1095*
1096*
1096CD*
Type:
www.lightolier.com
