Lightolier SL200A Specification

Page 1 of 2
Ordering Guide (complete unit only)
Cat. No. Lamp (circular)
SL200APZU 4-40W CT5
Features
1. Form: The circle in square form emphasizes the lamp image on the glass.
There are 4 identical square glass assemblies held in place by 4 steel ballast
housings. The assembly is suspended by 4 steel cables to a square canopy
assembly
2. Optics: Direct / indirect light distribution. Lamp image seen on glass to cre-
ate the circle in square lamp optic. Etched glass supported by an aluminum
turning post and secured by a heavy aluminum plate.
3. Hardware: Exposed hardware adds high design element to the design form.
4. Suspension: Four 3/64" (1.2mm) steel cables with glider adjusting hard-
ware for leveling.
5. Lamp Screen: Round perforated steel around the lamps. (Medium Grey)
6. Ballast housing: Steel ballast housing contains ballast socket and glass
support.
7. Glass: Glass held in place by pins in ballast housing.
Mounting
Canopy: Single mount canopy. Must be held in place by additional hardware
(supplied). Additional structure support required to support heavy weight
luminaire.
Luminaire Weight: 48 lbs.
Adjustable Steel Cable: Four steel cable adjust for height level.
Mounting Height: Luminaire comes standard with 6.5 feet (2 meters) of mount-
ing steel cables and electrical wires.
Electrical
Ballast: Electronic Program Rapid Start T5 circular lamp ballasts. Universal volt-
age "U" ballast automatically detect 120 volts or 277 volts operation.
Lampholder: 2GX13 base, 4 Pin.
Cord: Lightolier cords 300 volts for 120/277 volts operation or 600 volts for 120/
277/347 volts operation. 18AWG AWM leads, 10 Amps maximum. Black color.
Spectral Architectural Lighting

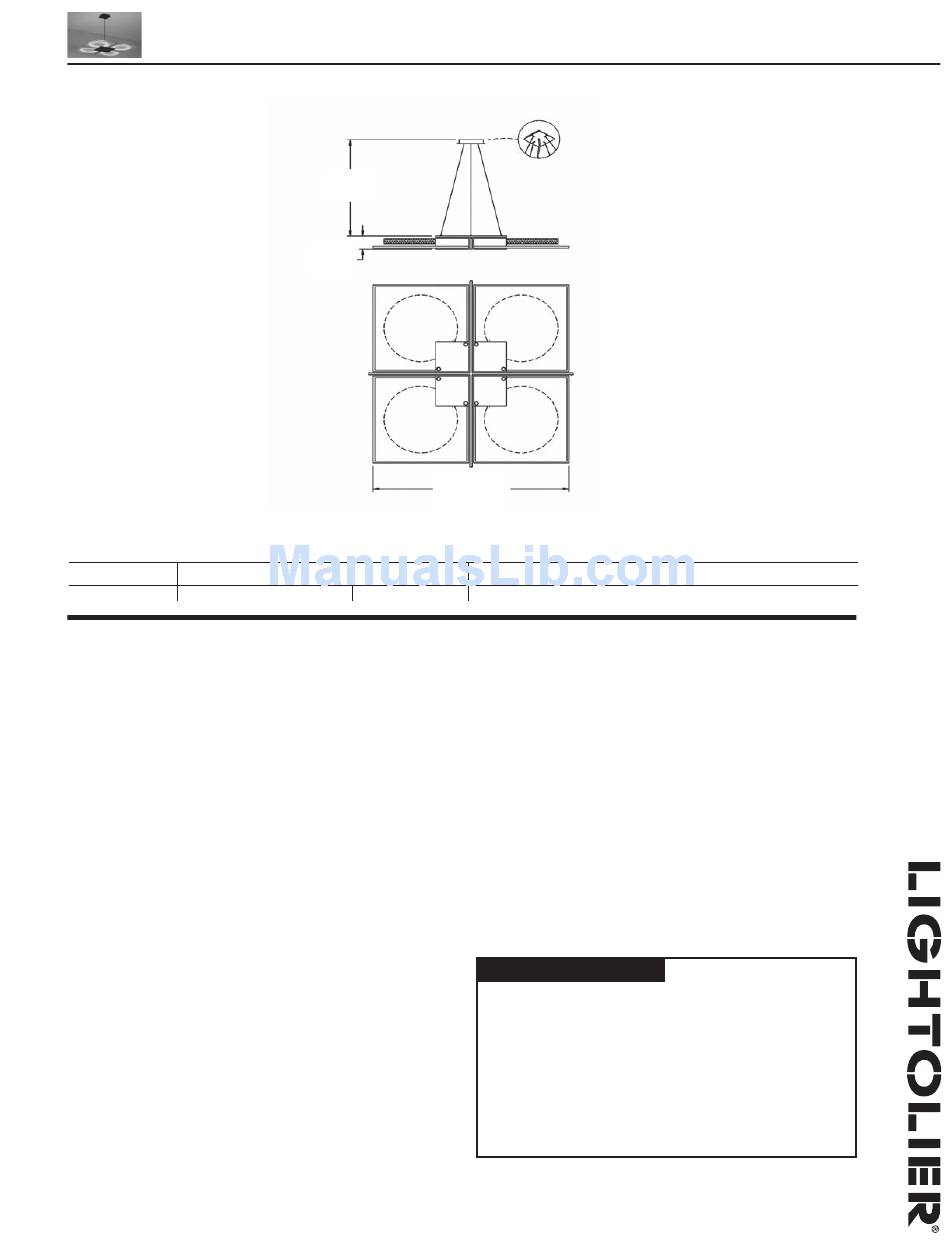

Circle in Square Pendant Round Forms 4-40W T5 Circular
78"
(2000mm)
2 5/8"
(66.7mm)
33 5/8"
(854mm)
Volt Finish
120/277V Textured Black Paint & Etched Glass

Options and Accessories

For wall and/or ceiling units, see Circle in Square Surface series SL201.
Dimming Ballast: Consult your Lightolier representative for more information.
Finish
All painted parts are with powder coat paint process.
Labels
UL "c/us" Listed. Suitable for damp locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0605
Type:
a Genlyte company
SL200A
www.lightolier.com
