Lightolier Lytecaster 1052LV Specification

Page 1 of 2
F 2011
6 5/8"
1052LV/1000LV
Standard MR16
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim

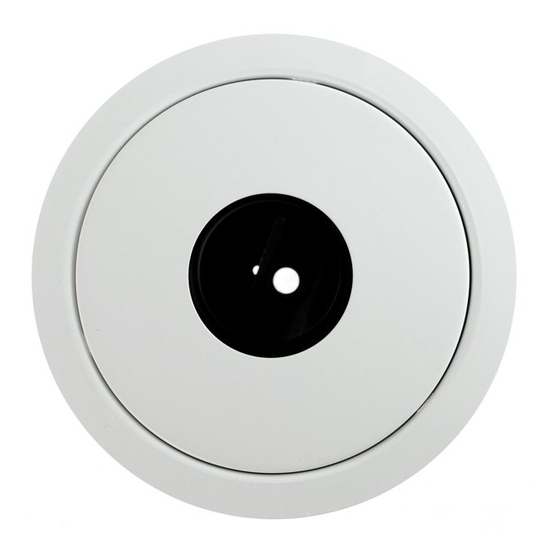

1052LV
Matte White
Features

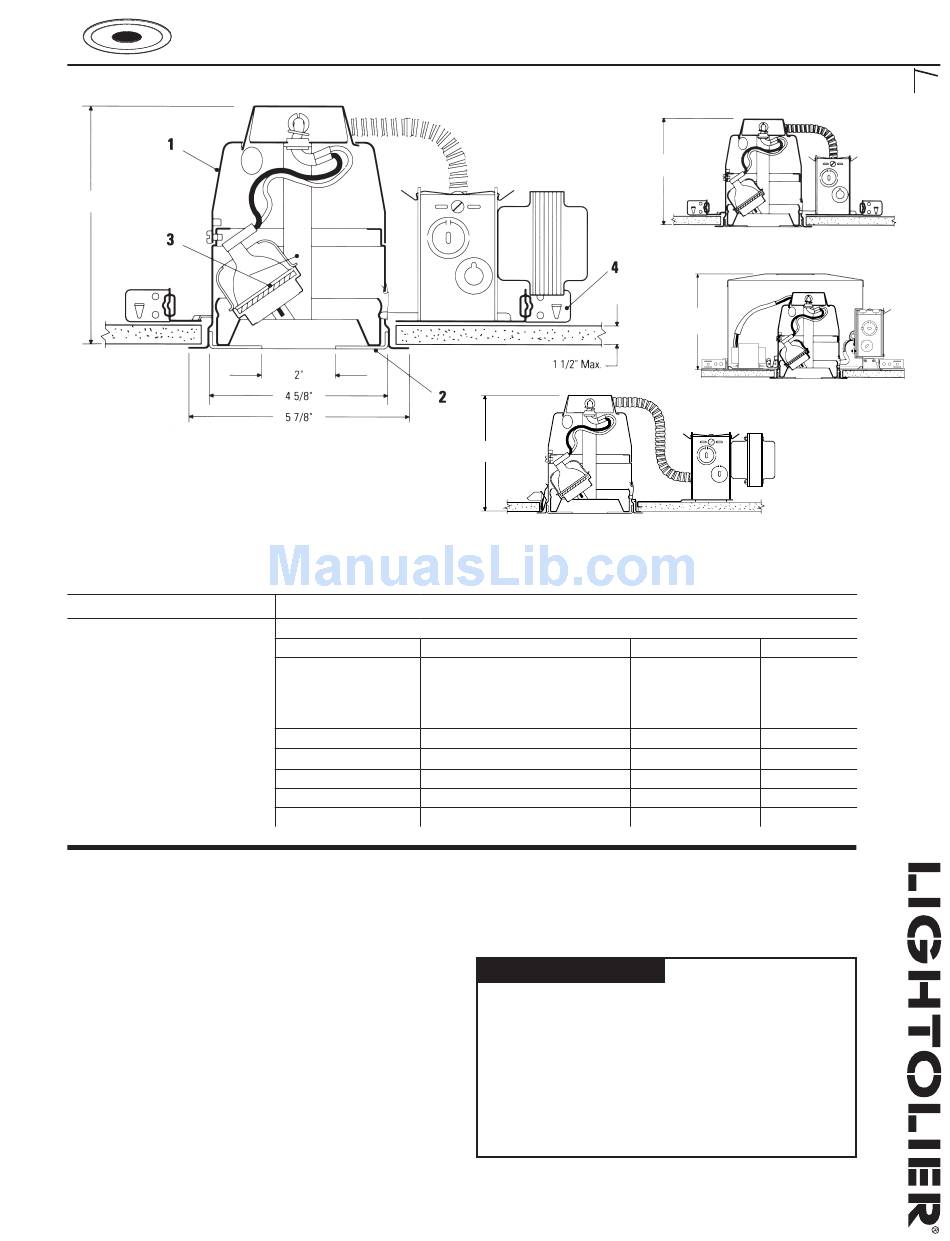

1. Housing: Hydroformed aluminum, .040" thick (18 ga.); matte white trim
flange.
2. Aperture Plate: Die-formed, 20 ga. steel, matte white finish. Inner shield
welded to aperture plate; matte black finish; cuts off glare at normal viewing
angles.
3. Support Ring Assembly: Provides 358° horizontal rotation and 0° to 35°
vertical adjustment. Matte white finish.
4. Frame-In Kit: (1000LV standard frame shown) Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Options & Accessories
Retaining Clips: 1955 - For Installing in Existing Ceiling
Extra Wide Trim Flange: 1957 - 7" Outside diameter.
MR16 Replacement socket: 1975B
Lytecaster
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Installation Type
1000LV
Non-IC
1000LVE1
1000LVE2
1000LVRE1
1000LVR Non-IC Remodeler
1000LVNT Non-IC Remote Trans
1004ICV/N AirSeal
1000ICV IC
1920LV Conversion Kit
Recessed Downlighting
®
5" Aperture Low Voltage Pinhole Reflector Trim
6 5/8"
1052LV/1000LVR
Remodeler/Non-IC
Low Voltage
Lamping
42W - 65W MR16
42W - 65W MR16
20W - 65W MR16
IC 20W - 37W MR16
®
20W - 35W MR16
20W - 50W MR16
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • H0811
1052LV
6 5/8"
1052LV/1000LVNT
MR16 Remote Transformer
7 1/4"
1052LV/1004ICV/N
0
AirSeal Insulated Ceiling
™ ®
Height
6 5/8"
6 5/8"
6 5/8"
6 5/8"
7 5/16"
6 5/8"
Type:
www.lightolier.com
35˚
