Lightolier ProSpec PA1A1175 Specification

Page 1 of 2
8"
13"
5"
Ceiling Cutout: 8 3/16"L x 8 3/16"W

Ordering Information: AR 111 Series A

Cat. No. Lamp
PA1A117EBL
(1) 75W AR 111
PA1A117EWL
(1) 75W AR 111
PA1A117EBTL (1) 75W AR 111
PA1A117EWTL (1) 75W AR 111
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories (including lamp cover glass; lamp cover glass may be replaced
with solid glass accessory). Easily installed and removed for lamping with a
simple twisting motion. Constructed of die-cast aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 40° (on
length) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die-formed 22 ga. steel. Finish: Black.
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC, UL , and CSA requirements.
9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
12. Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.
13. Transformer Housing: Die-formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible
from below for servicing. 12V Secondary.
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers. Low Voltage fixtures may produce audible sound
when used with dimmers, which may be objectionable in acoustically
critical areas.
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 2 AWG
90° C.
ProSpec

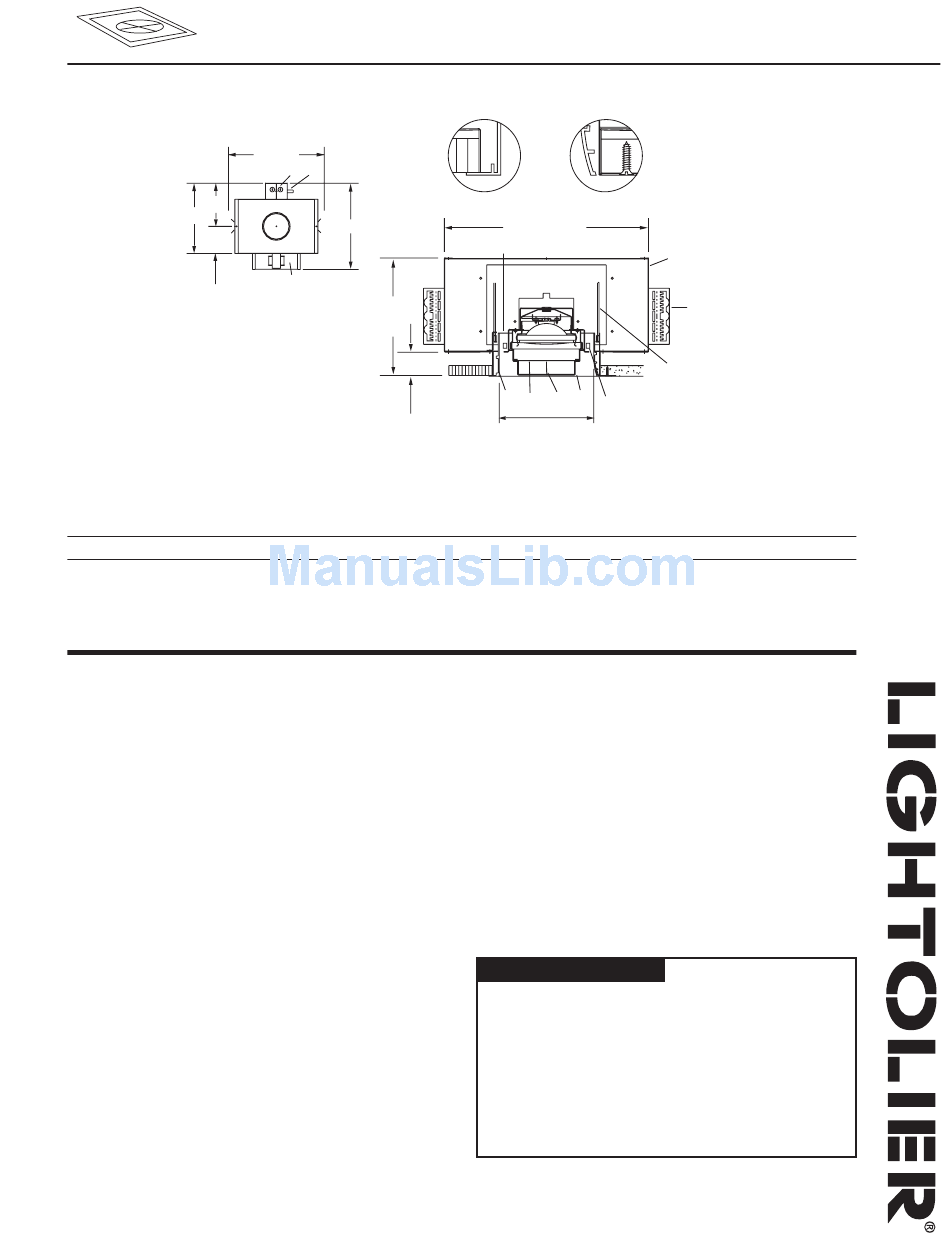

Top View
18 1/8"
8
9
16"
13
8 3/4"
Depth
1 3/4"
PA1A117EBL = (Flanged) Black/White
PA1A117EWL = (Flanged) White
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage
Linear Downlight
®
Trimless
Flanged
15 3/8" L X 10" W
10
3 2 4
11 12
1
7" L X 7" W Opening
PA1A117EBTL = (Trimless) Black
PA1A117EWTL = (Trimless) White
Ceiling Trim
Overlap
Overlap
Trimless
Trimless

Finish

All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. series, filters, lenses, screens and louvers. (2) acces-
sories maximum, including lamp cover glass. Lamp guard glass may be replaced
with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • D0711
PA1A1175
1 Light AR 111 Series A
6
7
5
Aperture Finish
Black with White Flange
White with White Flange
Black
White
Type:
www.lightolier.com
