Lightolier Lytecaster 1182 Specification

Page 1 of 2
9 1/4"
1182/1100 DEEP IC Series
Insulated Ceiling
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
1182
Gloss White
Features
1. Housing: Hydroformed aluminum, .040" thick (18 ga.); Perma white or
polished brass trim flange.
2. Eyeball Housing: Die-formed, one piece, aluminum, .040" thick (18 ga.);
provides 358° horizontal rotation and 0° to 40° vertical adjustment, non-
yellowing, scuff-resistant Perma-White.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Medium Base Socket Extender: 1968 - For short neck PAR30
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Lytecaster
7 1/2"
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Incandescent
Frame-In Kit Installation Type
1102P1
Non-IC
1103R Non-IC Remodeler
1100IC IC
1100AICM AirSeal IC
®
1100DICM Deep IC
1100DAICM Deep AirSeal IC
®
1104IC/N
AirSeal ® IC
1104ICR IC Remodeler
1104ICX/N AirSeal IC
®
1104IC/N Non-IC
1104ICR Non-IC Remodeler
Recessed Downlighting
®

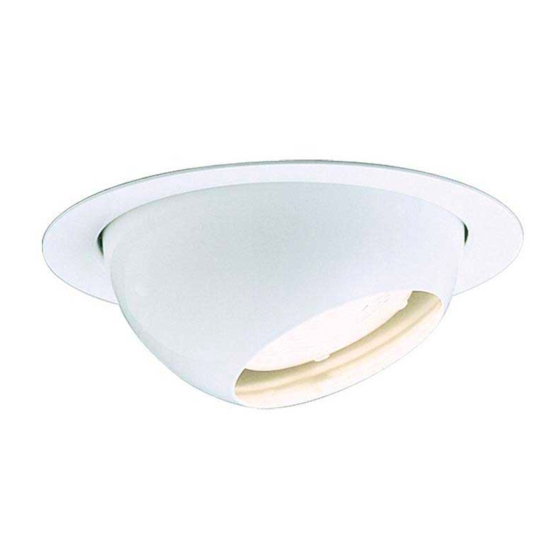

6 3/4" Aperture Basic Eyeball Reflector Trim
7 1/2"
1182/1104IC
0
Convertible
™
IC/Non-IC
1182/1102P1 Series
Standard Incandescent
Lamping Height
75W, PAR30* 7 1/2"
85W BR30 7 1/2"
7 5/16"
7 5/16"
75W PAR30* 9 1/4"
85W BR30 9 1/4"
7 1/2"
7 1/2"
7 1/4"
75W PAR30 7 1/2"
85W BR30 7 1/2"
* Use socket extender 1968 for short neck PAR30 lamp.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2012 Genlyte Group LLC • G0212
1182
1182/1103R
0
Non-IC
™
Remodeler Ring
Type:
www.lightolier.com
40˚
