Lightolier SLB1SFSVA232 Specification

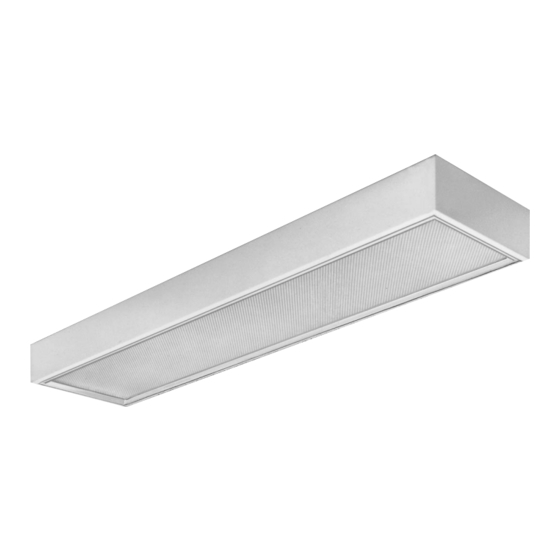

SLB Surface Box 1' x 4' Fluorescent
Page 1 of 2
Features
• Shallow 4" deep body.
• Positive cam-action latches frame on either side.
• Efficiency 56.2% (2 T8).
• Center mounted ballast compartment (2 lamps).
• Snap-on wiring channel cover removed without tools.
• Matte black light seal on both sides to prevent light leaks.
• Spot welded one-piece construction.
Mounting Methods
FS: Flat Steel lens frame (standard)
RA: Regressed aluminum lens frame
Stem mounting (four per fixture is required)
Flat Steel or Regressed Aluminum Frame, 2 Lamp T8 or T12
One-piece construction
SLB1SFSVA232
Dimensions
12" (305mm)
19" (483mm)
2" (51mm)
Dia. K.O.
24" (610mm)
48" (1219mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2002 Lightolier
4"
(102mm)
3" (76mm)
2-1/2"
(64mm)
7/8" (22mm)
Dia. K.O.
11 Places
Type:
www.lightolier.com
Section 3A/Folio H70-10
