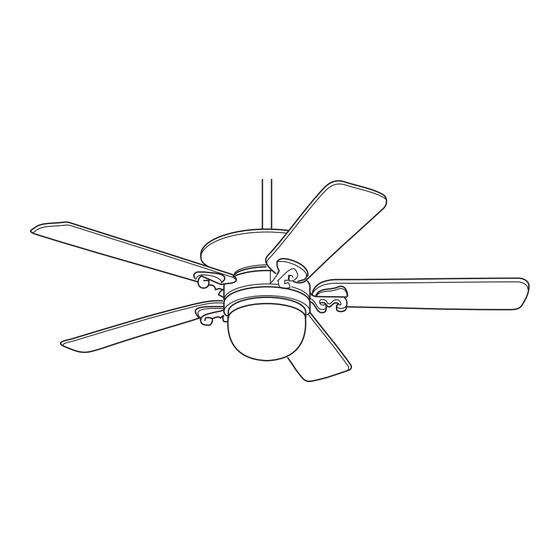

Emerson BANFF CF720ORB00 Owner's Manual

52” ceiling fan

Advertisement

BP7309 BANFF
1/5/06
9:59 AM
READ AND SAVE THESE INSTRUCTIONS
BANFF
52" Ceiling Fan
Owner's Manual
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a Class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-approved equipment or
unshielded cables is likely to result in interference to radio and TV reception. The user is
cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user's authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Part No. F40BP73090000
Page 1
CF720ORB00
CF720PW00
CF720WB00
Net Weight:
INSTRUCTION TO THE USER
(if device contains a digital device)
Model No.
22.2
Lbs.
Form No. BP7309
UL Model No. CF720

Advertisement

Table of Contents
loading

Summary of Contents for Emerson BANFF CF720ORB00

  • Page 1 This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Part No. F40BP73090000 Model No. CF720ORB00 CF720PW00 CF720WB00 22.2 Net Weight: Lbs.
  • Page 2: Safety Instructions

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan.
  • Page 3: Unpacking Instructions

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. 1. Open styrofoam unit containing fan.
  • Page 4: Electrical Requirements

    Electrical Requirements IMPORTANT: Your ceiling fan will not function properly, damaged, if used with any wall dimmer switch or control other than the Emerson Electric SW101 Fan/Light Wall Control supplied with the fan, or an optional Emerson Electric Remote Control.
  • Page 5: How To Assemble Your Ceiling Fan

    1/5/06 9:59 AM Page 5 Ceiling Fan Procedures General Your Emerson ceiling fan comes supplied with a SW101 Fan/Light Wall Control and a Remote Control Receiver. This system allows you to regulate your ceiling fan speed and light intensity. NOTE: An optional Emerson Electric SR100 Remote Control may also be used to control your ceiling fan.
  • Page 6 Install the second screw in the same manner and securely tighten both screws. Repeat steps 2 and 3 for the remaining four blade assemblies. NOTE: Take care not to scratch the fan housing when installing the blade assemblies. 4. Remove the hanger ball by loosening...
  • Page 7: Your Ceiling Fan How To Hang

    UPPER can now proceed with hanging and GLASS wiring your fan. How to Hang Your Ceiling Fan WARNING The fan must be hung with at least 7' of clearance from floor to blades (Figure 7). CEILING LEAST FLOOR Figure 7...
  • Page 8: How To Wire Your Ceiling Fan

    HANGER OUTLET BOX BRACKET Figure 8 2. Carefully lift the fan and seat the hanger ball/downrod assembly on the hanger bracket that was just attached to the outlet box (Figure 9). Be sure the groove in the ball is lined up with the tab on the hanger bracket (Figure 8).
  • Page 9 Page 9 1. Position the supply wires to the left side of the outlet box (Figure 10); position the fan wires to the right side. Partially insert the remote control receiver (flat side up) until one end rests on the hanger ball as shown in Figure 10.
  • Page 10 1/5/06 9:59 AM Page 10 SW101 FAN/LIGHT WALL CONTROL (SUPPLIED) BLACK (HOT) LIGHT 120- FAN OFF VOLT EMERSON SUPPLY WHITE GROUND TWO-CONDUCTOR CABLE (WITH GROUND) GREEN WIRE (GROUND) FROM HANGER BALL AND HANGER BRACKET Figure 11 3. Push the wires and connectors up into the outlet box while inserting the receiver fully into the hanger bracket.
  • Page 11: Operating Your Ceiling Fan

    NOTE: Make sure that the ON/OFF slide switch on the Fan/Light Wall Control is in the ON position. 2. To set the desired fan speed, press the HI, MED, or LOW buttons to operate your fan on high, medium, or low speed (Figure 15).
  • Page 12: Maintenance

    This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co.
  • Page 13: Troubleshooting

    BP7309 BANFF 1/5/06 9:59 AM Page 13 WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN. Trouble Shooting TROUBLE PROBABLE CAUSE 1. Fan will not 1. Fuse or circuit breaker start.
  • Page 14: How To Order Repair Parts

    WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: • PART NUMBER • NAME OF ITEM • PART DESCRIPTION • MODEL NUMBER The model number of your Fan will be found on a label attached to the top housing. For repair parts, phone 1-800-654-3545.
  • Page 15 Lower Glass Wall Control SW101 Harness Housing Uplight Assembly Housing Downlight Assembly Blade Assembly (set of 5) Owner's Manual — Part Numbers Model No. Model No. Model No. CF720ORB00 CF720PW00 CF720WB00 761655-41 761655-42 761655-40 — — — — — —...
  • Page 16: Limited Warranty

    If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan. WE WILL...

This manual is also suitable for:

Banff cf720pw00Banff cf720wb00Cf725ges00Cf725gbz00
