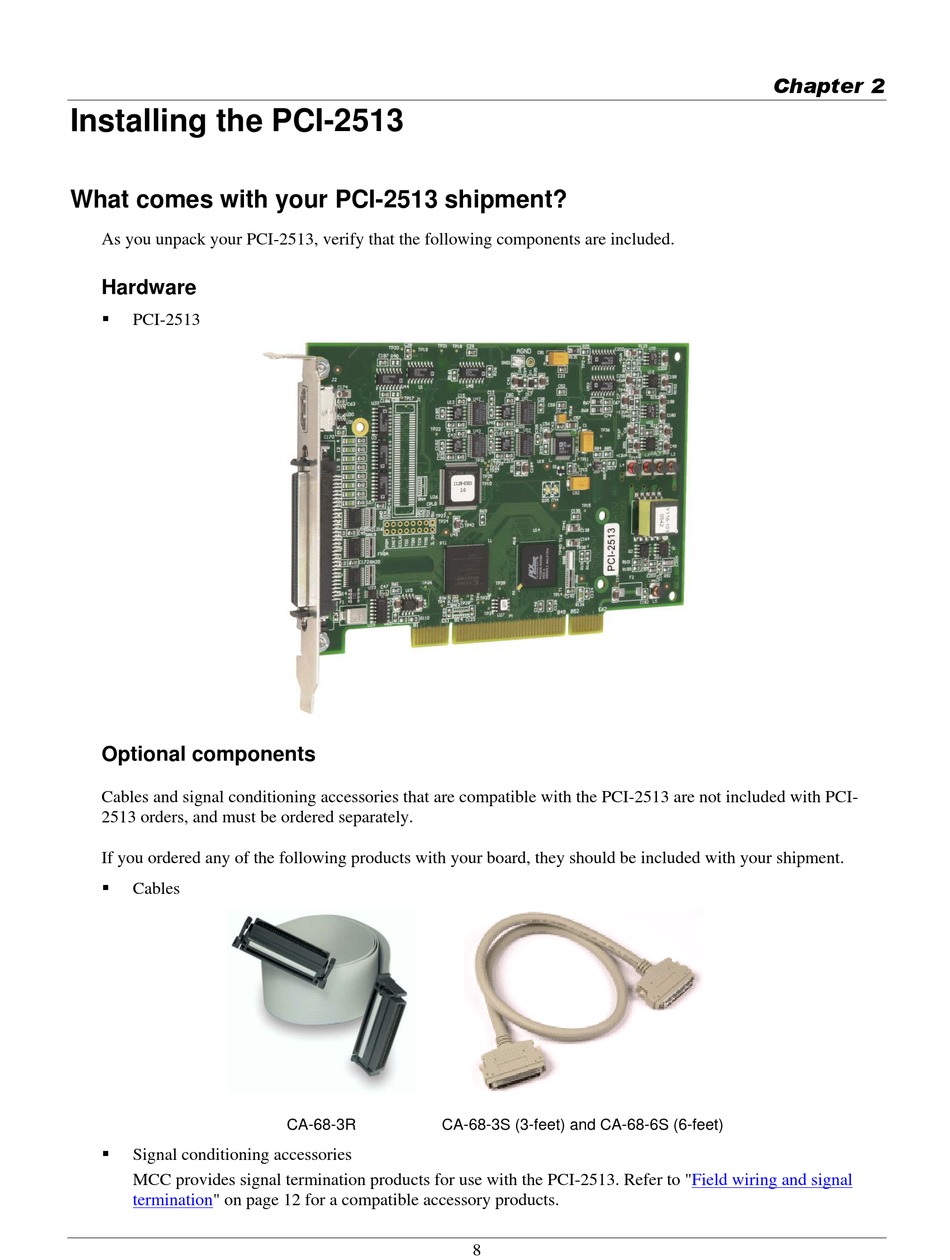

Installing the PCI-2513

What comes with your PCI-2513 shipment?

As you unpack your PCI-2513, verify that the following components are included.

Hardware


PCI-2513

Optional components

Cables and signal conditioning accessories that are compatible with the PCI-2513 are not included with PCI-
2513 orders, and must be ordered separately.
If you ordered any of the following products with your board, they should be included with your shipment.

Cables

Signal conditioning accessories
MCC provides signal termination products for use with the PCI-2513. Refer to
termination" on page 12 for a compatible accessory products.
CA-68-3R CA-68-3S (3-feet) and CA-68-6S (6-feet)
8
Chapter 2
"Field wiring and signal
