Upgrading The Computer

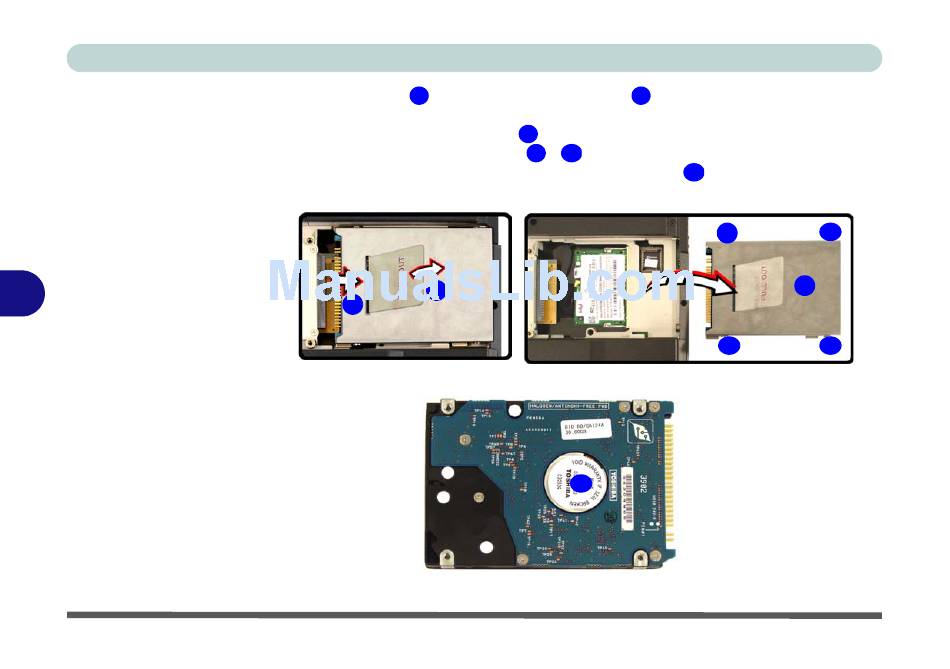

Figure 6 - 4
HDD Assembly
Removal
6
6 - 6 Upgrading the Hard Disk Drive
4. Pull the tab in the direction of the arrow
6
assembly from the connector.
5. Lift the hard disk assembly
6. Remove screws from points
in order to separate the bracket from the hard disk
7. Reverse the process to install a new hard disk(s).
