Upgrading The Computer
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
6
module's
mance.

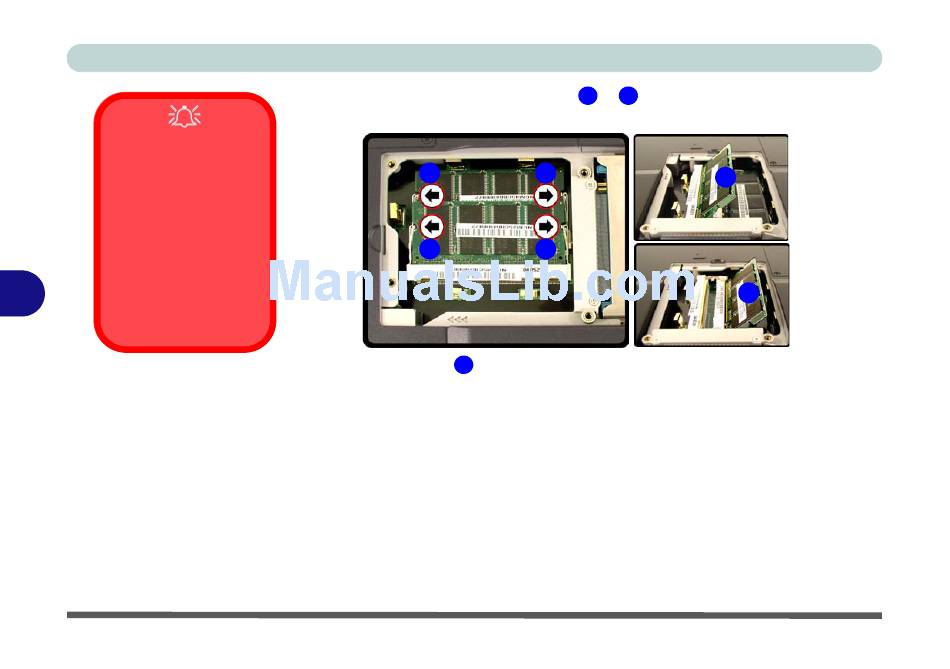

Figure 6 - 7
RAM Module
Removal
6 - 10 Upgrading the System Memory (RAM)
4. Gently pull the two release latches (
socket in the direction indicated by the arrows in
perfor-
5. The RAM module
6. Pull the latches to release the second module if necessary.
7. Insert a new module holding it at about a 30° angle and fit the connectors
firmly into the memory slot.
8. The module's pin alignment will allow it to only fit one way. Make sure the
module is seated as far into the slot as it will go. DO NOT FORCE the
module; it should fit without much pressure.
9. Press the module in and down towards the mainboard until the slot levers
click into place to secure the module.
10. Replace the memory socket cover and the 4 screws.
11. Restart the computer to allow the BIOS to register the new memory
configuration as it starts up.
&
