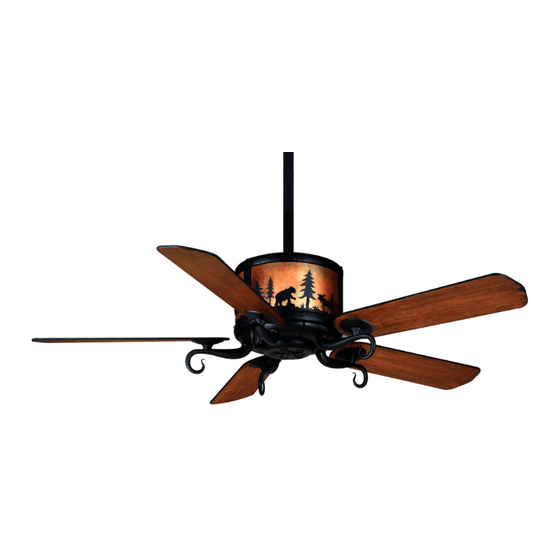

Casablanca Wilderness Owner's Manual

INTRODUCTION
mOUNTINg ReCOmmeNDaTIONs
faN INsTaLLaTION
OpTIONaL exCLUsIve LIghT fIxTURe INsTaLLaTION
CONTROL feaTURes:
Versa•Touch 2
TROUbLeshOOTINg
safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product
and proper installation; therefore, before attempting to install and operate your Casablanca fan, read this
owner's manual completely and carefully. Retain this manual for future reference.
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off at the
circuit breaker or fuse box before attempting any installation procedure.
• cauTIoN: rIsK oF eLecTrIcaL shocK! all wiring must be performed in accordance with national and local elec-
trical codes. If you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and
possible damage to other equipment, do not install control to a receptacle, fluorescent light fixture, motor operated
appliance, or transformer-supplied appliance.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be uL Listed for ceiling fan
installations, if it is not, a new box must be installed. casablanca extension poles are available for sloped or high ceiling
installations.
• This ceiling fan requires a grounded electrical supply of 120 Vac, 60 hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make
sure all wires are within the canopy and that no wires are being pinched.
use only genuine Casablanca blades, light fixtures, and accessories.
• The blades in each pack are matched for equal
weight to assure smooth fan operation. If
more than one fan is being installed, be careful
not to mix blades from different cartons.
• Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized casablanca dealer.
• It is always a good idea to have an assistant
to help with the installation.
• When cleaning, painting, or working near
your fan, be very careful of the fan and blades.
always turn the power Off to the ceiling fan
before servicing it, working on it, or replacing
light bulbs.
• Never insert anything into the path of the fan
blades while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged in
any way. Contact Casablanca fan Company by
calling 1-888-335-5247, or contact your local
authorized casablanca dealer for assistance
in obtaining service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS

SAFETY FIRST

BEFORE YOU START
For best performance and for your warranty to be valid,
NOTES
(Remove fuse foR the
ciRcuit you will be
CIRCUIT BREAKER
(tRip bReakeR foR the
ciRcuit you will be
woRking on)
PN 8643520 AT1008
FUSE BOX
woRking on)
11
13
18"
70"
84"
1
1
2
3
9
