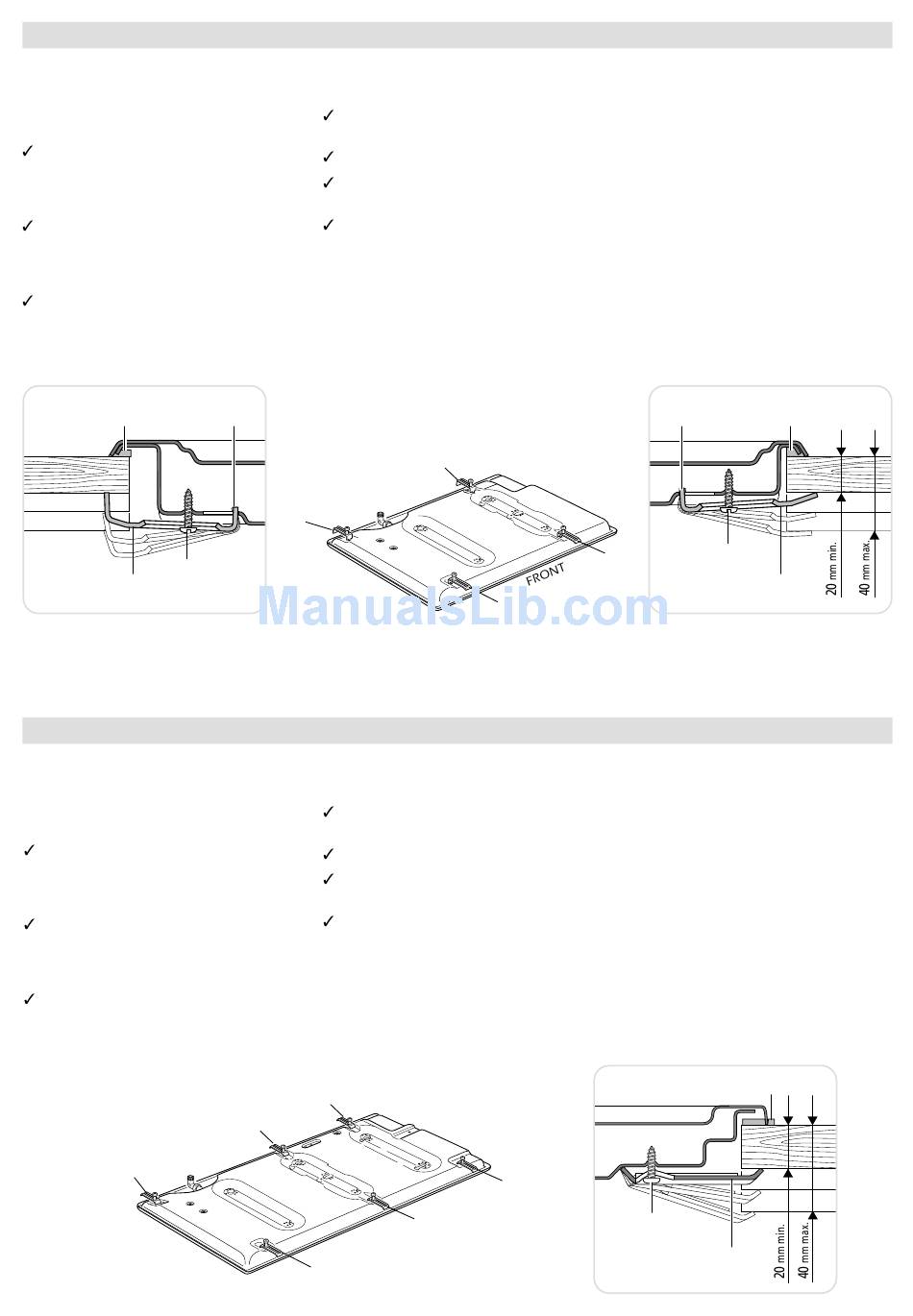

FASTENING THE
INSTALLATION BRACKETS
(figs. 4.8, 4.9, 4.10)
Each cooker top is provided with an
installation kit including brackets and
screws for fastening the top to fixture
panels from 2 to 4 cm thick.
Turn the cooker top upside down and
fasten the brackets "F and R" to the
appropriate socket holes, without tigh-
tening the screws "B" for the moment.
Make sure that the brackets are faste-
ned as shown in figure 4.8.
D
B
R
Fig. 4.9
FASTENING THE
INSTALLATION BRACKETS
(fig. 4.11)
Each cooker top is provided with an
installation kit including brackets and
screws for fastening the top to fixture
panels from 2 to 4 cm thick.
Turn the cooker top upside down and
fasten the brackets "A" to the appro-
priate socket holes, without tightening
the screws "B" for the moment.
Make sure that the brackets are faste-
ned as shown in figure 4.11.
Fig. 4.11
A
COOKING HOBS - P60 series
FASTENING THE COOKER TOP
Spread the sealing material "C" out along the fixture hole, making sure that the junc-
tions overlap at the corners.
Insert the cooker top into the hole and position it correctly.
Adjust the position of the brackets "F and R" and tighten screws "B" to block the
cooker top firmly in position.
With a sharp cutter or trimmer knife trim the excess sealing material around the edge
of the cooker top.
C
R
COOKING HOBS - P90 series
FASTENING THE COOKER TOP
Spread the sealing material "C" out along the fixture hole, making sure that the junc-
tions overlap at the corners.
Insert the cooker top into the hole and position it correctly.
Adjust the position of the brackets "A" and tighten screws "B" to block the cooker top
firmly in position.
With a sharp cutter or trimmer knife trim the excess sealing material around the edge
of the cooker top.
A
A
A
Fig. 4.8
R
F
A
A
(figs. 4.9 and 4.10)
C D
B
F
F
Fig. 4.10
(fig. 4.12)
C
B
A
Fig. 4.12
