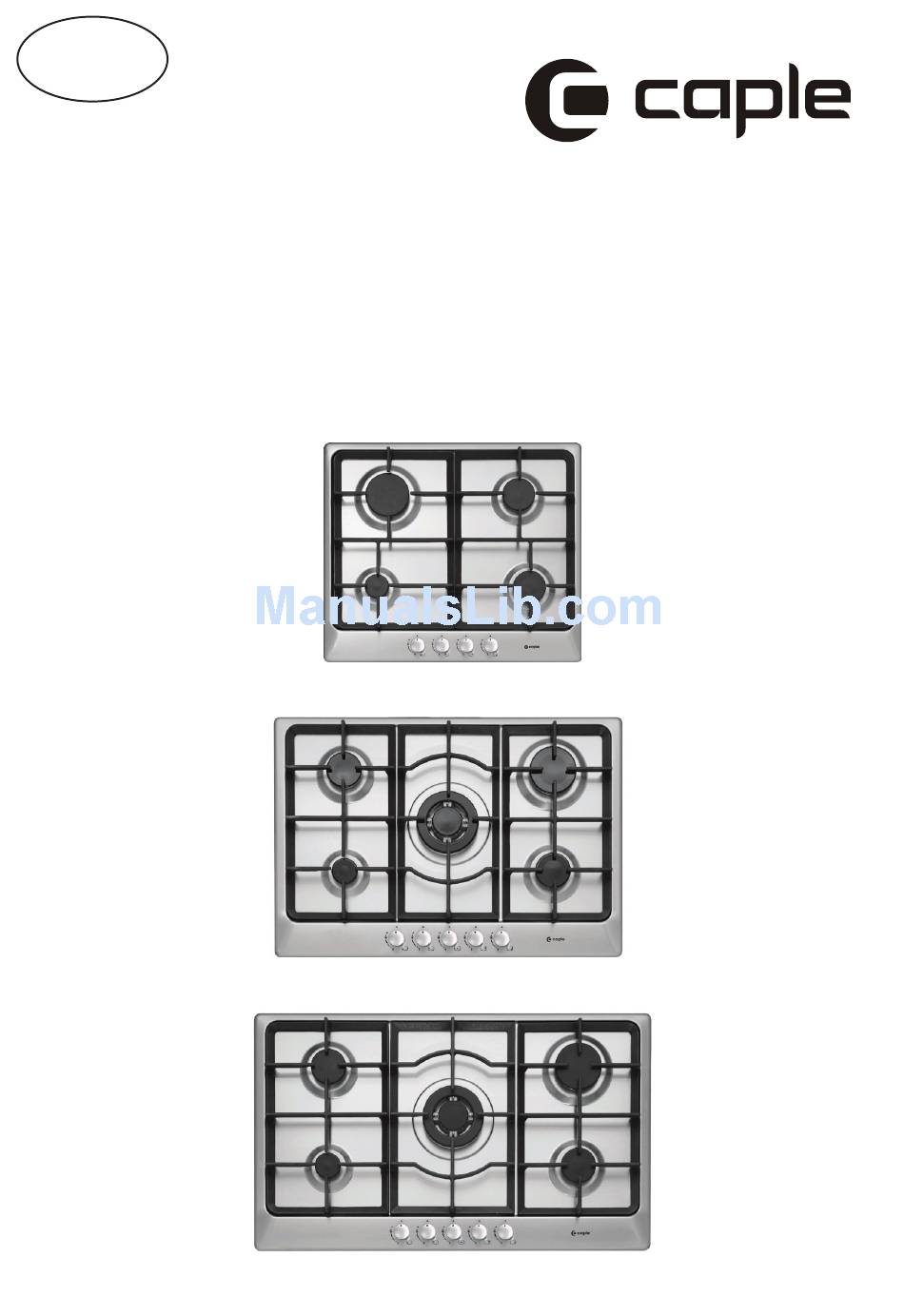

  • Page 1 Instruction manual for gas hobs Model code: C748G Model code: C766G Model code: C773G Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
  • Page 2 Dear Customer, We thank you and congratulate you on granting us your preference, by purchasin one of our products. We are sure that this new appliance, manufactured with quality materials, will meet your requirements in the best possible way. The use of this new equipment is easy. However, we invite you to read this booklet carefully, before installing and using the appliance.
  • Page 3 INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. USING THE BURNERS as to prevent them from overturning or overflowing.
  • Page 4 V adjacent walls. screws of the fastening hooks G (fig.6 / 6A). MODEL L (mm) P (mm) C748G / C766G 480-490 (*) Installation room This appliance is not provided with a device for C773G 480-490 (*) exhausting the products of combustion.
  • Page 5 INSTRUCTIONS FOR THE INSTALLER Gas connection Adjusting the burners Make sure that the appliance is adjusted for the gas The lowest flame point must always be properly type available (see the label under the appliance). adjusted and the flame must remain on even if there Follow the instructions indicated in the chapter “gas is an abrupt shift from the maximum to the minimum transformations and adjustments”...
  • Page 6 Closed Maximum Minimum 10/A...
  • Page 7 C748G C766G C773G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3800 W 8 Control knob for burner...
  • Page 8 TECHNICAL CHARACTERISTIC TABLES NOMINAL TAPE BY NORMAL NOMINAL INJECTOR BURNERS HEAT INPUT PASS PRESSURE RATE DIAMETER DIAMETER 1/100 N° mbar 1/100 mm Max. Min. DESCRIPTION G30-G31 28 - 30 3000 RAPID 115Y Reg. 3000 G30-G31 28 - 30 1750 SEMI-RAPID Reg.
