- Page 1 Instruction manual for gas hob Model code: C743G Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 2 This appliance is intended for household use only and not for similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if...
-
Page 3: Table Of Contents
Contents Important Information Description of Hob Operation Maintenance and cleaning Troubleshooting Instruction for installer Technical data Important safety requirements Installation Please read this instruction manual before using the appliance! Important Information You MUST read these warnings carefully before installing or using the hob. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 4: Description Of Hob
appliance are compatible. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. This appliance must be installed and serviced by a competent person This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Remove all packaging before using the hob Ensure that the gas and electrical supply complies with the type stated on the rating label Do not attempt to modify the hob in any way. -
Page 5: Operation

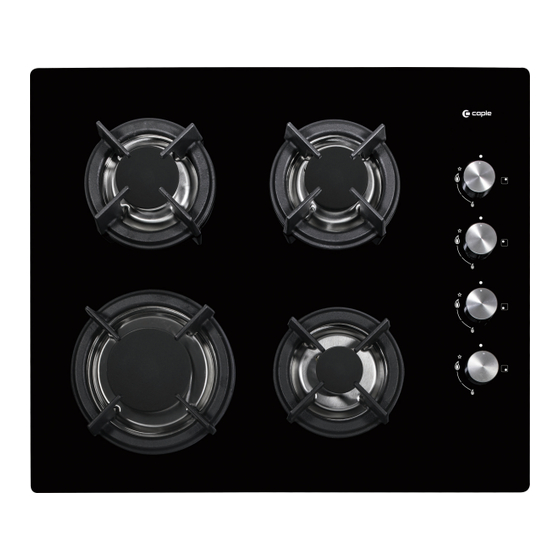

Wok burner Rapid Burner Semi-rapid Burners Auxiliary Burner Control knobs Operation – Lighting Burners Simply press the knob in, turn anticlockwise to maximum and the burner will ignite. Before releasing knob, ensure a flame is established, if the burner fails to ignite, put into off position and try again. If in case of a power failure or failure of the ignition, a match or lighting devise can be used. -
Page 6: Troubleshooting
The Burners The burner caps and crowns can be removed for cleaning. Wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap steel wool pad can be used with caution, if the marks are particularly difficult to remove. After cleaning, be sure to wipe dry with a soft cloth. -
Page 7: Important Safety Requirements
Gas category LU,NL,DK,FI,SE,CY,CZ,EE,LT,MT,SK,SI,BG,IS,NO,TR,HR,HU,RO,IT,LV 3B/P(30) BE,FR,IT,LU.IE,GB,GR,PT,ES,CY,CZ,LT,SK,CH,SI,LV 3+(28-30/37) 3B/P(37) DE,AT,CH,LU,SK 3B/P(50) FR,IT,BE,NL,DK,IE,GB,GR,ES,PT,AT,FI,SE,CZ,EE,HU,LV,LT,SK,SI,IS,NO,CH,TR,BG,HR,RO 2H(20) DE,LU,PL 2E(20) BE,FR 2L(25) DE,PL,RO 2E3B/P CH,CY,CZ,GB,GR,IE,IT,LT,PT,SI,SK 2H3+ AT,CH,CY,CZ,DK,EE,FI,GR,IT,LT,NO,RO,SE,SK,SI 2H3B/P Note: when injectors are changed, the new one should be marked by the gas technician. Appliance Class: 3 This appliance complies with the following E.E.C. Directives: 2006/95, 93/68, 2004/108 and 90/396. 0845- 15 Electric: BS plug (230 V 50 Hz supply, 3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse.):... - Page 8 the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device. Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. Installation IMPORTANT : The hob must be installed by a competent person to the relevant Gas Standards.
- Page 9 Fix the hob with the relevant fixing clamps and screws, as shown in the diagram. When the screws have been tightened, the excess seal can be removed. (See Figure 7*) The edge of the hob forms a double seal which prevents the build-up of liquids. Check the hob after installation &...
- Page 10 Figure 3 Figure 4 Figure5 Figure6 Figure7 Figure8...
- Page 12 Caple Fourth Way Avonmouth Bristol BS11 8SW www.caple.co.uk...
