- Page 1 Instruction manual for gas hob Model code: C767G Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 2 Thank you for choosing a Caple appliance. To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance. Keep these instructions in a safew place for future reference. If you are unsure of any of the information contained in these instructions, please contact our customer care centre.
-
Page 3: Table Of Contents
contents Safety Warning Safety Instructions Installation Safety Cleaning and Service Environmental Information Instructions for use and maintenance Description of the appliance How to Use the appliance Safety and Energy saving advice Cleaning and Maintenance Technical instructions Installation instructions Positioning Installing the appliance Gas Connection Gas Specifition Electrical Connection... -
Page 4: Safety Instructions
safety instructions ■ Please take the time to read this Instruction Manual before installing or using the appliance. ■ This instruction booklet must be kept with the appliance for any future reference. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user. - Page 5 installation Warning ■ Prior to installation, ensure that the ■ This appliance must be installed in accordance with regulations in force gas and electrical supply complies and only used in a well ventilated with the type stated on the rating space.
-
Page 6: Safety Warning
Safety Warning ■ Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled. Caution ■ This appliance is designed to be operated by adults. ■... -
Page 7: Use
Warning ■ Only use the appliance for preparing ■ Do not modify this appliance. Burner panel is not designed to operate food. from an external timer or separate remote control system. comes ■ The use of a gas cooking appliance results ■... - Page 8 ■ Do not use or store flammable ■ Perishable food, plastic items and materials in the storage drawer aerosols may be affected by heat and should not stored above or below the near this appliance. appliance. ■ Do not spray aerosols in the vicinity of ■...
-
Page 9: Cleaning And Service
Clean with warm soapy repaired or serviced by an authorised water and a soft damp cloth. Service Engineer and only genuine Caple approved spare parts should be used. Caution ■ Before attempting to clean the appliance, it should be disconnected from the mains and cooled. -

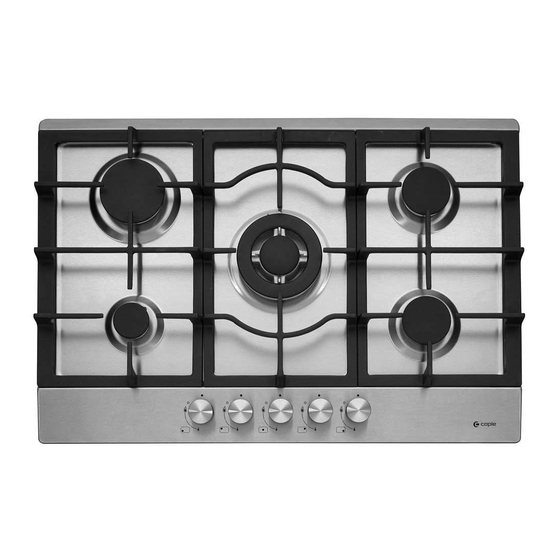

Page 10: Description Of The Appliance
M M odel C767G C C ast Iron Pan S S upport Wok pa a n Support Stai i nless Steel Top p Plate 750 0 *510*90 Dimensio o n(W*D*H) Continuous Ignition Type e Ignitio o n device... -
Page 11: How To Use The Appliance
description of the appliance A ccessories ( 4 ) Screw Bracket ( 4 ) Sponge ( 4 ) Gas-pipe bend Instruction Manual(1) I nj ector ( 4 ) and washer (1) how to use the appliance The following symbols will appear on the control panel, next to each control handle : Black circle: gas off Large flame: maximum setting Small flame: minimum setting... - Page 12 how to use the appliance Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out.
-
Page 13: Safety And Energy Saving Advice
safety and energy saving advice - The diameter of the bottom of the pan should correspond to that of the burner. PANS BURNERS min. max. Triple-Crown 220mm 260mm of the Rapid 180mm 220mm burner. Semi-Rapid 180mm Auxiliary 120mm 180mm Do not use small diameter cookware on Always use cookware that large burners. -
Page 14: Cleaning And Maintenance
cleaning and maintenance completely and can remove the symbols with a damp cloth Do not use cream cleaners, for example Cillit Bang or Cif creams. Metal Brush Nylon Brush Soft cloth Acidic/Alkali Edible Oil Detergent Neutral Detergent Abrasive rasive Thinner/Benzene Pan supports and controls ■... - Page 15 cleaning and maintenance Burners ■ Remove the burner lids and Flame Spreaders by pulling them upwards and away from the top plate. ■ Soak them in hot water and little detergent or washing up liquid ■ After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry.
-
Page 16: Installation Instructions
installation instructions Warnings work The hose must be manufactured in accordance with BS669 part 1 and be of the correct construction for the type of gas being used. • Gas hoses designed for natural gas MUST NOT be used for supplying LPG gas (LPG gas hoses can be identified by a either a red band or stripe on the rubber outer coating of the hose). -
Page 17: Positioning
IMPORTANT NOTE It is a legal requirement that all gas appliances are Installed & Serviced by a competent person in accordance with the current editions of the following Standards & Regulations or those regulations appropriate to the geographical region in which they are to be installed: •... -
Page 18: Installing The Appliance
installing the appliance 1. Remove the pan supports, the burner lid and flame spreader and carefully turn the appliance upside down and place it on a cushioned mat. Take care that the Ignition devices and flame supervision devices are not damaged in this operation. -
Page 19: Gas Connection
gas connection and LPG o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations . o It is in your interest and that of safety to ensure compliance with the law. o In the UK, GASSAFE registered installers work to safe standards of practice. -
Page 20: Gas Specifition
Rapid burner Semi-rapid Semi-rapid 3.3kW(241g/h) 3.0kW(219g/h) 1.75kW(127g/h) 1.75kW(127g/h) 1.0kW(73g/h) 10.8kW(787g/h) G31 37mbar 0.93 0.85 0.65 0.65 0.50 110-240Vac √ C767G G30 29mbar 0.93 0.85 0.65 0.65 0.50 50/60Hz G20 20mbar √ 1.28 1.30 0.97 0.97 0.72 G25 25mbar 1.40 1.22 0.95... -
Page 21: Electrical Connection
AC INPUT Switch 3 Switch 4 Switch 5 IGNITION If the mains cable is damaged it must be replaced by the manufacturers authorised customer service agent or similarly qualified personnel. Contact Caple Service on 0117 938 7420 or by email service@caple.co.uk. - Page 22 gas adustment Remove the pan support, Burner lid and Flame spreader. Unscrew the injector using a 7 mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components. After injectors are replaced, it is advisable to strongly tighten the injector in place.
-
Page 23: Trouble Shooting
Stop using the product and close the middle valve. Open the window to ventilate. Contact our service centre by using a phone outside. If the problem cannot be solved, please contact Caple Service on 0117 938 7420 or email service@caple.co.uk. - Page 24 Serial number: Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
