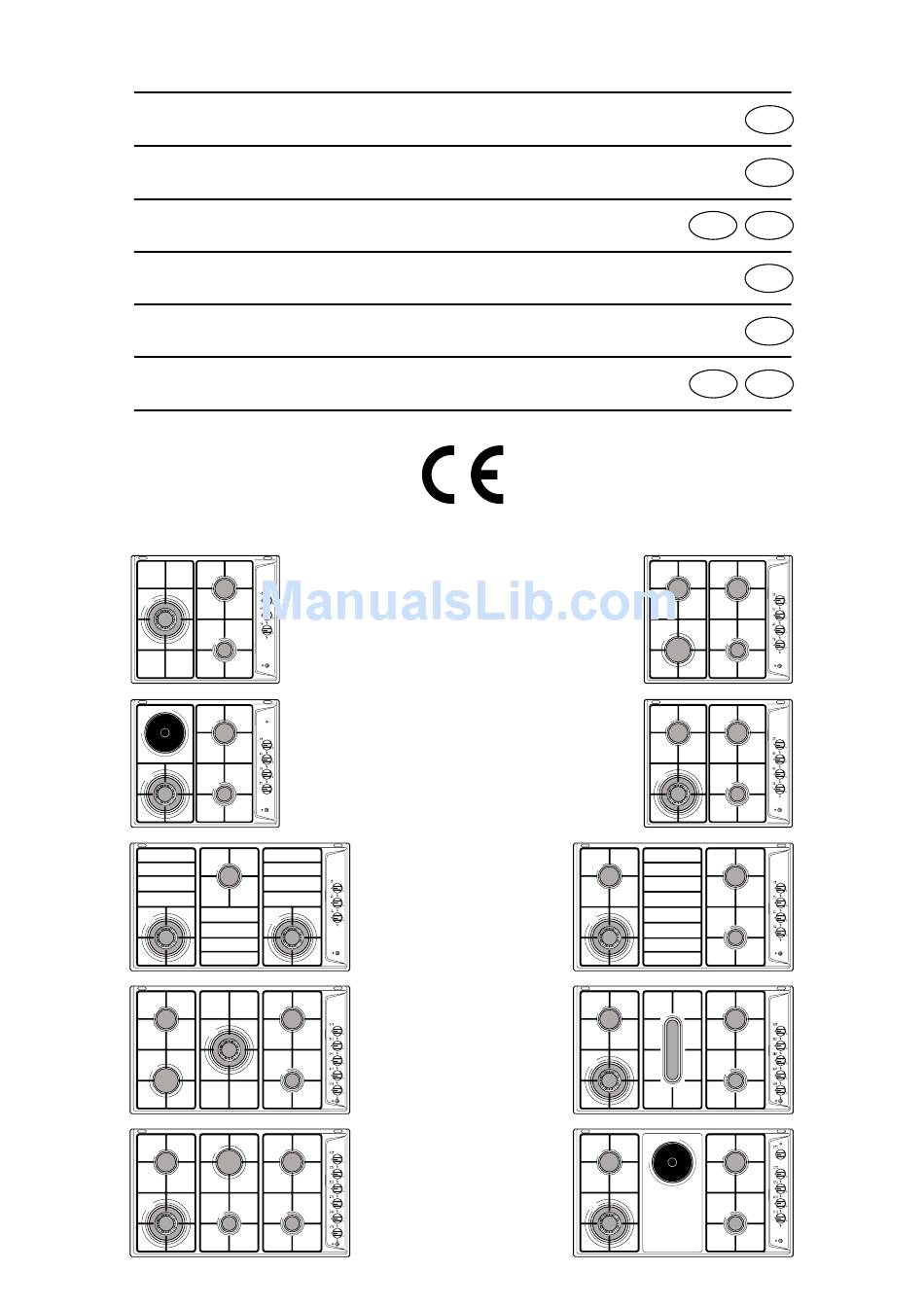

- Page 1 PIANI COTTURA DA INCASSO BUILT-IN COOKING HOBS TABLES DE CUISSON ENCASTRABLES PLACAS DE COCCIÓN EMPOTRABLES FOGÃO POR ENCAIXE INBOUWKOMFOREN TRUZIONI PER L’USO • INSTRUCTIONS FOR USE • MODE D’EMPLOI • INSTRUCCIONES PA • MANUAL DE USO • ISTRUZIONI PER L’USO • INSTRUCTIONS FOR USE • MODE D’EMP RUCCIONES PARA EL USO •...
- Page 2 ITALIANO Istruzioni per l’uso Pagina La Casa Costruttrice non risponde delle possibili inesattezze, imputabili ad errori di stampa o trascrizione, contenute nel presente libret- to. Si riserva il diritto, pregiudicare le caratteristiche essenziali di funzionalità e sicurezza, di apportare ai propri prodotti, in qualunque momento e senza preavviso, le eventuali modifiche opportune per qualsiasi esigenza di carattere costruttivo o commerciale.
-
Page 3: Important Precautions And Recommendations
ENGLISH Instructions for use Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please preserve this booklet carefully. - Page 4 FEATURES Fig. 1.1a Fig. 1.2a Fig. 1.1b Fig. 1.2b Fig. 1.1c Fig. 1.2c Fig. 1.1d Fig. 1.2d...
- Page 5 The appliance has class 3 NOTE: If the appliance has a safety valve system fitted (beside every burner is a T-shaped probe, as in Fig. 3.1 - not to be confused with the S-shaped electrode of the gas-lighter), the flow of gas will be stopped if and when the flame should accidentally go out.
-
Page 6: Gas Burners
HOW TO USE THE COOKER TOP GAS BURNERS N.B. If your local gas supply makes it dif- ficult to light the burner with the knob set Gas flow to the burners is adjusted by tur- to maximum, set the knob to minimum ning the knobs (illustrated in figs. -
Page 7: Choice Of Burner
CHOICE OF BURNER AUXILIARY GRATE FOR SMALL (fig. 2.4) ELECTRIC HOTPLATES PANS “ “ On request (fig. 2.5). The symbols printed on the panel beside the gas knobs indicate the corresponden- This grate is to be placed on top of the Never cook food directly on the ce between the knob and the burner. - Page 8 PROPER USE OF THE ELEC- ELECTRIC HOTPLATE TRIC HOTPLATE Hob controlled by USAGE TABLE (fig. 2.8) 7-position switch When the pan comes to the boil, turn the 0 - 6 Position heat down to the level desired. TYPE OF COOKING of switch Remember that the hotplate will continue to produce heat for about five minutes...
-
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE GLASS LID (optional) GENERAL ADVICE Do not close the glass lid when the electrical plates are still Before you begin cleaning you must ensure that the hob is switched off. hot and when the oven, installed below the cooking hob is on or still hot. - Page 10 CORRECT REPLACEMENT OF THE BURNERS It is very important to check that the burner flame spreader “F” and the cap “C” have been correctly positioned (see figs. 3.1 and 3.2 ). Failure to do so can cause serious problems. In appliances with electric ignition, check that the electrode “S”...
-
Page 11: Installation Advice
Installation advice INSTALLATION IMPORTANT The appliance must be housed in heat-resistant units. The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTAL- These tops are designed to be embedded into kitchen LATION TECHNICIAN. - Page 12 CHOOSING SUITABLE SUR- ROUNDINGS Extractor hood The room where the gas appliance is to for products of be installed must have a natural flow of combustion air so that the gas can burn (in compliance with the current laws in force).
- Page 13 COOKING HOBS - P60 series FASTENING THE FASTENING THE COOKER TOP (figs. 4.9 and 4.10) INSTALLATION BRACKETS Spread the sealing material “C” out along the fixture hole, making sure that the junc- (figs. 4.8, 4.9, 4.10) tions overlap at the corners. Each cooker top is provided with an Insert the cooker top into the hole and position it correctly.
-
Page 14: Gas Section
GAS SECTION GAS CONNECTIONS Type 1 connection Make sure that the hob is adapted to function with the type of gas supply available (see label). If not, refer to the section headed “Adapting the appliance to function with diffe- rent types of gas”. GASES The gases used for the operation of cooking appliances may be grouped by their cha- racteristics into two types:... - Page 15 TABLE FOR THE CHOICE OF THE INJECTORS Cat: 2H3+ NOMINAL REDUCED Ø INJECTOR Gas type: PRESSURE BURNERS POWER POWER (1/100 mm) (mbar) (HS - kW) (HS - kW) Auxiliary (A) 1,00 0,30 72 (X) Semi-rapid (SR) 1,75 0,45 97 (Z) Rapid (R) 3,00 0,75...
-
