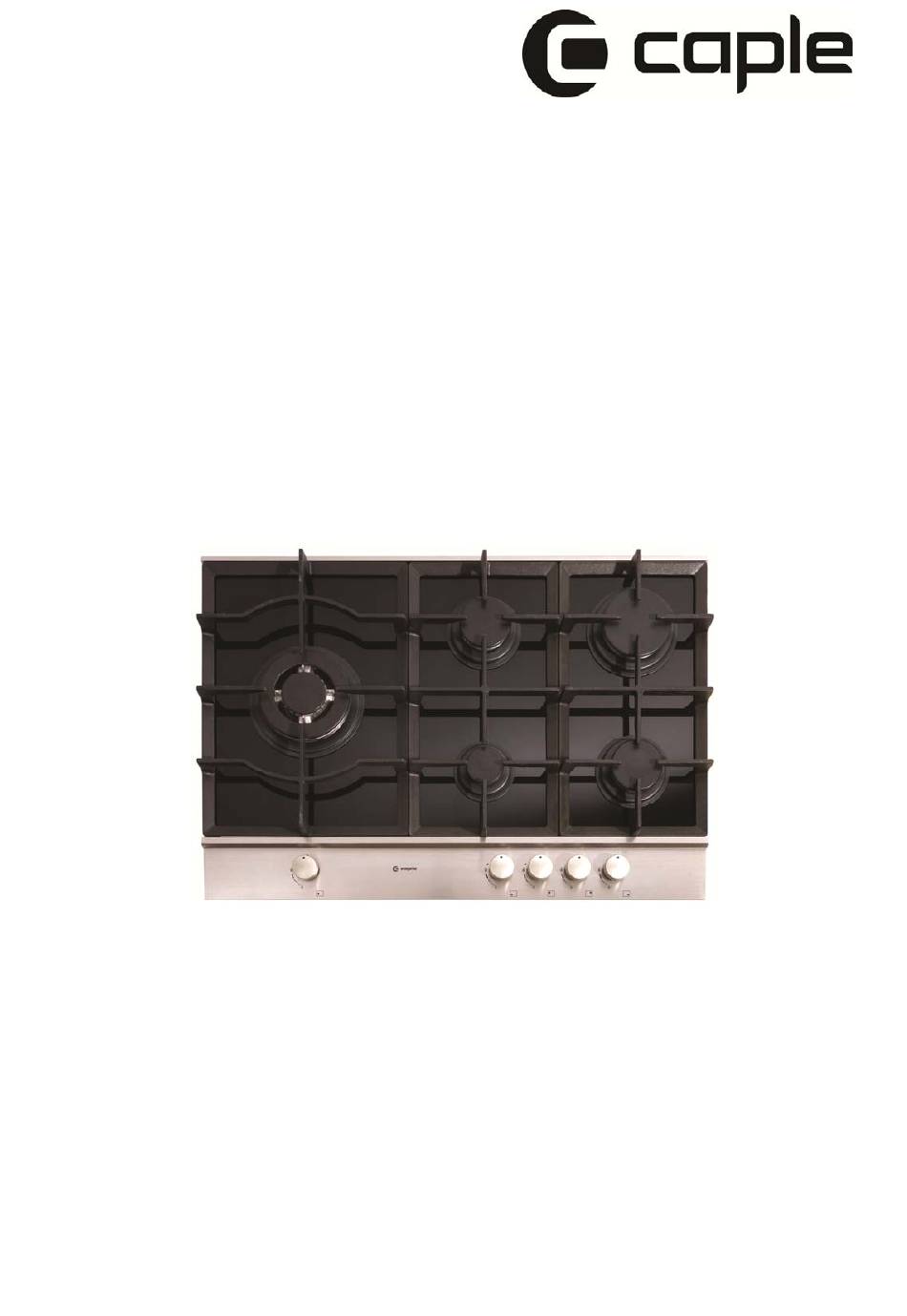

- Page 1 Instruction manual for gas on glass hobs Model code: C739G C759G C769G Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
- Page 2 Dear Customer, We thank you and congratulate you on granting us your preference, by purchasing one of our products. We are sure that this new appliance, manufactured with quality materials, will meet your requirements in the best possible way. The use of this new equipment is easy. However, we invite you to read this booklet carefully, before installing and using the appliance.

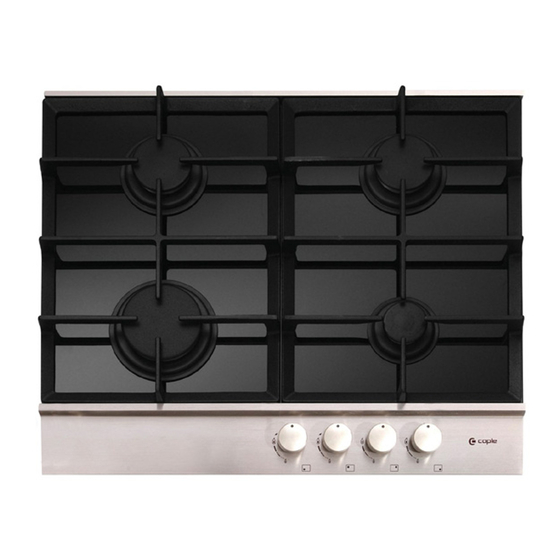

- Page 3 DESCRIPTION HOBS MODEL: C739G MODEL: C759G MODEL: C769G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3800 W 8 Control knob for burner...
- Page 4 INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer.
- Page 5 V screws of the fastening hooks G (fig. 6). MODEL L (mm) P (mm) Installation room C739G This appliance is not provided with a device for exhausting the products of combustion. Therefore, C759G it is necessary to discharge these smokes outside.
- Page 6 INSTRUCTIONS FOR THE INSTALLER If there are other fuel burning appliances in Adjusting the burners the same room BS 5440: Part 2:1989 should be The lowest flame point must always be properly consulted to determine the air vent requirements. adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the Gas connection minimum position.
- Page 7 CLOSE Maximum Minimum...
- Page 8 TECHNICAL CHARACTERISTIC TABLES TYPE BY NOMINAL NORMAL NOMINAL I N J E C T O R BURNERS PASS HEAT INPUT PRESSURE RATE DIAMETER DIAMETER N° mbar 1/100 mm 1/100 mm Max. Min. DESCRIPTION 28 - 30 3000 3000 RAPID 115Y Reg.
