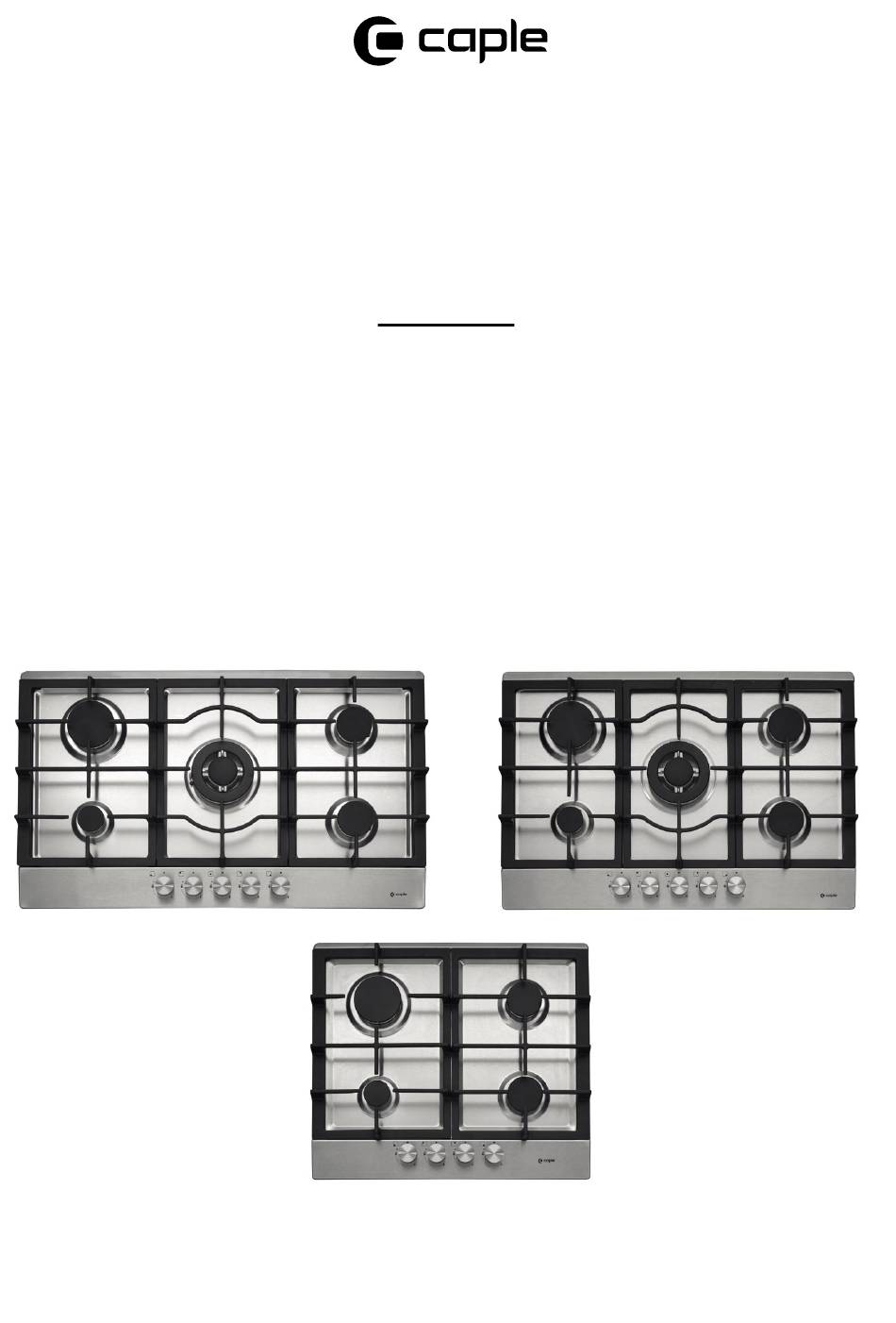

- Page 1 I n s t r u c t i o n M a n u a l C 77 5 G / C7 6 8G / C 7 50G Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
How to use Your Appliance Safety & Energy Saving Advice Care and Maintenance Installation Instructions Gas Connection Gas Specification Electrical Connection Gas Adjustment Troubleshooting Technical Specification Caple Contact Details Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... -
Page 3: Introduction
I N T R O D U C T I O N Congratulations on the purchase of your new Caple hob. It is important that you spend some time reading this instruction manual in order to fully understand how to correctly install and operate your hob. - Page 4 - Do not use large cloths, tea towels or similar as the ends could touch the flames and catch fire. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 5 Small flame: minimum setting - This appliance should only be repaired or serviced by an authorised Service Engineer and only genuine Caple > The minimum setting is at the end of the anti approved spare parts should be used.
- Page 6 * The gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic or egg) ev 1/1000 of the gas is in the air. ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 7 - Use heat-resistant pot holders or gloves when handling hot pots and pans. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 8 - Always turn burner controls off before removing cookware. - Carefully watch foods being fried at a high flame setting, they can easily ignite. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 9 - You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance. - Cleaning and user maintenance shall not be made by children without supervision. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 10 * The gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic or egg) eve 1/1000 of the gas is in the air. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
-
Page 11: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only available from Caple Service and spare parts authorised centres. -

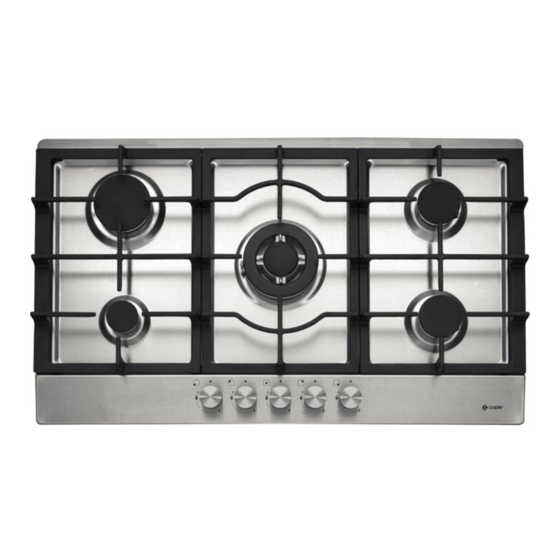

Page 12: Parts Of The Appliance
Auxiliary gas burner 2. Semi-rapid burner 2. Semi-rapid burner 3. Rapid burner 3. Rapid burner 4. Triple ring burner 4. Triple ring burner Control Knobs 5. Control Knobs Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... - Page 13 Bracket ( 4 ) Screw ( 4 ) Sponge ( 4 ) I nj ector Instruction Manual Gas-pipe C775G / C768G (5 ) bend and C750G (4) washer (1) Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
-
Page 14: How To Use Your Appliance
>You should hold down the control knob for 15 seconds after the flame on the burner has lit. If a burner has not lit, stop operating the device and open the compartment door and/or wait at least attempting a further ignition of the burner. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... -
Page 15: Safety & Energy Saving Advice
* The gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic or egg) ev 1/1000 of the gas is in the air. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... - Page 16 Must Do No Access As soon as a liquid starts boiling, turn down the flame so that it will keep the liquid simmering. liquid simmering. Must Do Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
-
Page 17: Care And Maintenance
Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid the risk of corrosion. Instruction manual C775G, C750G, C768G > Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid the risk of Please keep this instruction manual for future reference Stainless steel parts of the appliance may become discoloured over time. - Page 18 The locating pins must fit exactly into the notches. Replace parts in the correct order after cleaning. Do not mix up the top and the bottom. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference No naked flames...
-
Page 19: Installation Instructions
› The installation must confirm to all current installation standards and regulations in force. * The gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic or egg) ev Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... - Page 20 Health and Safety Executive. Failure to install the appliance correctly could invalidate any manufacturer’s warranty and lead to prosecution under the above quoted regulation. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 21 WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE CLEARANCES REQUIRED WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE 600mm 600mm 700mm 700mm 400mm 400mm 400mm 400mm Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 22 - Check the dimensions of the oven in the installation manual. - The cut out size must be as shown in the drawing relevent to the model being installed. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 23 - The cut out size must be as shown in the drawing relevent to the model being installed. › The cut out size must be as shown in the drawing relevent to the model being installed. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
- Page 24 1 Stop using the product and close the middle valve. 2 Open the window to ventilate. 3 Contact our service centre or gas supplier by using a phone outside. Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
-
Page 25: Gas Connection
20mbar CH, CZ,ES,GB,GR,IE, IT,PT,SI ane at 30mbar and G31 propane at 37mbar thane at 20mbar Instruction manual C775G, C750G, C768G BE, FR, Please keep this instruction manual for future reference ane at 30mbar and G31 propane at 37mbar... -
Page 26: Gas Specification
Work burner Rapid burner Semi-rapid Auxiliary-rapid 3.3KW(241g/h) 3.0KW(219g/h) 1.75KW(127g/h) 1.0KW(73g/h) 7.5KW(546g/h) C 7 5 0 G G20 20mbar 230V~50Hz 1.30 0.78 G30 29mbar 230V~ 50Hz 0.87 0.66 0.50 Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... -
Page 27: Electrical Connection
3 Contact our service centre or gas supplier by using a phone outside. similarly qualified personnel. Contact Caple Service on 0117 938 7420 or by email service@caple.co.uk. service agent or similarly qualified personnel. Contact Caple Service on 0117 938 7420 or by IGNITION email service@caple.co.uk. -
Page 28: Gas Adjustment
1/1000 of the gas is in the air. from maximum flow to minimum flow. If it does, by-pass screw control knob and make further adjustments to th Instruction manual C775G, C750G, C768G again once the adjustment has been made. Please keep this instruction manual for future reference... - Page 29 ‘V’ mark. to the correct gas category to match with the setting on the Rating Label. Make sure to Must Do remove the previous ‘V’ mark. DANGER Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference...
-
Page 30: Troubleshooting
Open the window to ventilate. Contact our service centre by using a phone outside. If the problem cannot be solved, please contact Caple Service on 0117 938 7420 or email service@caple.co.uk. �� Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... -
Page 31: Technical Specification
230Vac, 50Hz, 2W 230Vac, 50Hz, 2W TOTA L C O M B I N E D 10.8kW 7.5kW 10.8kW G A S O U T P U T Instruction manual C775G, C750G, C768G Please keep this instruction manual for future reference... -
Page 32: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
