CORRECT REPLACEMENT
OF THE BURNERS

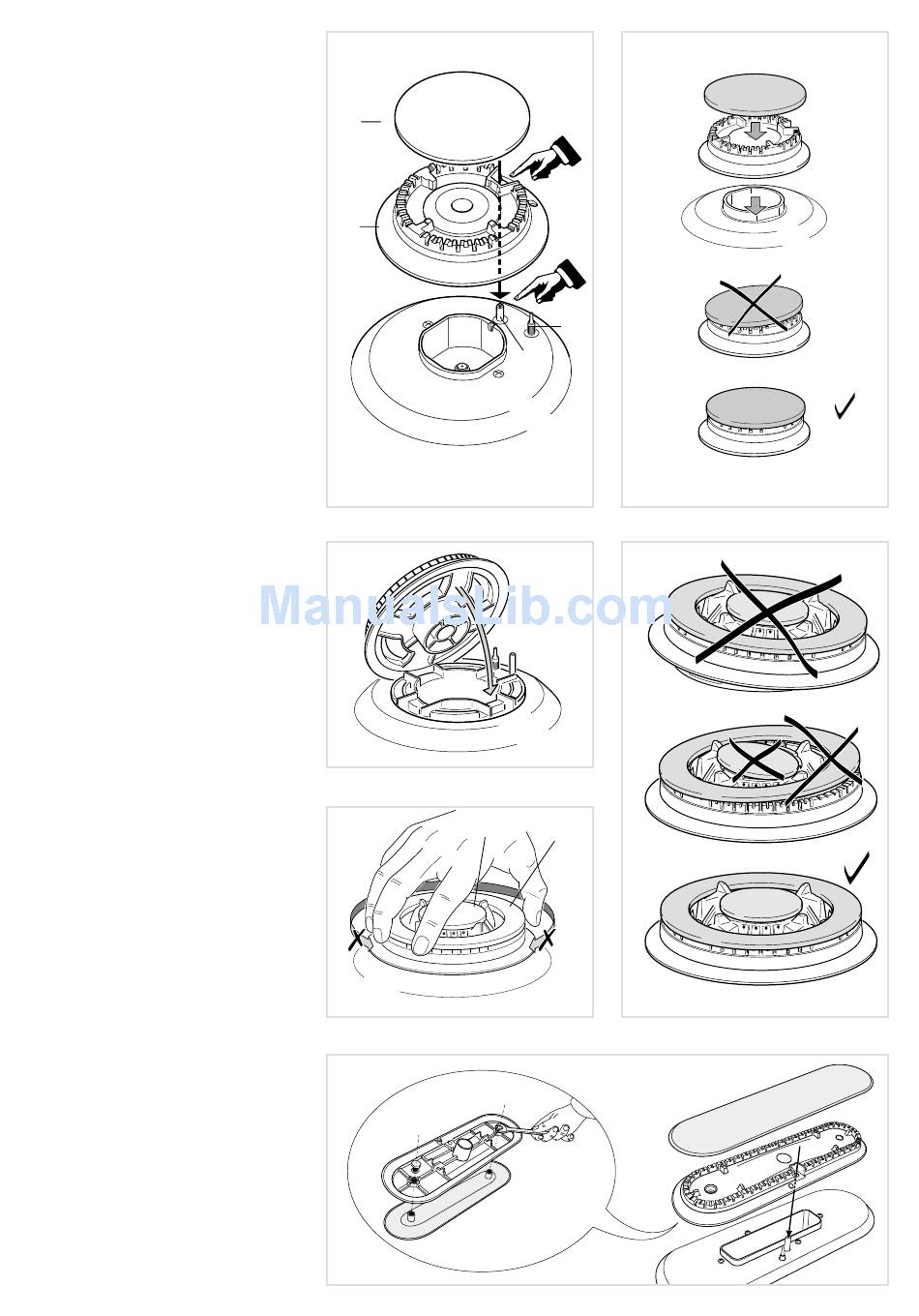

It is very important to check that the
burner flame spreader "F" and the cap
"C" have been correctly positioned (see
figs. 3.1 and 3.2 ).
Failure to do so can cause serious
problems.
In appliances with electric ignition, check
that the electrode "S" (fig. 3.1) is always
clean to ensure trouble-free sparking.
In the models with safety device, check
that the probe "T" (fig. 3.1) next to each
burner is always clean to ensure correct
operation of the safety valves.
Both the probe and ignition plug must
be very carefully cleaned.
CORRECT POSITION OF
TRIPLE RING BURNER
The triple ring burner must be correctly
positioned (see fig. 3.3); the burner rib
must be fitted in their housing as shown
by the arrow.
The burner correctly positioned must not
rotate (fig. 3.4).
Then position the cap A and the ring B
(fig. 3.4 - 3.5).
CORRECT POSITION OF THE
FISH BURNER
This burner must be correctly positioned
as shown in the figure 3.6.
26
C
F
Fig. 3.1
A
Fig. 3.6
T
S
Fig. 3.2
Fig. 3.3
B
Fig. 3.4
Fig. 3.5
