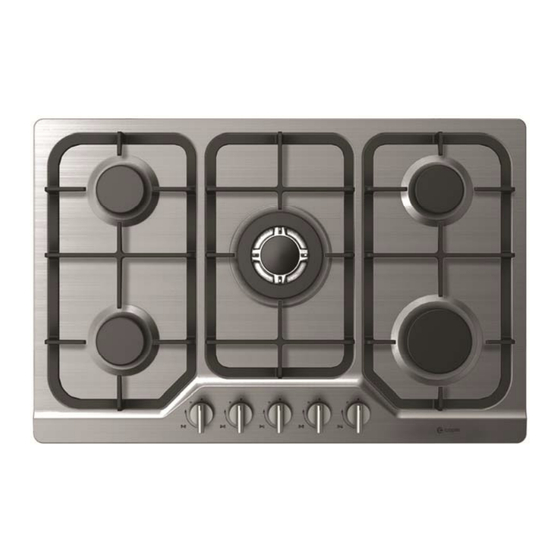

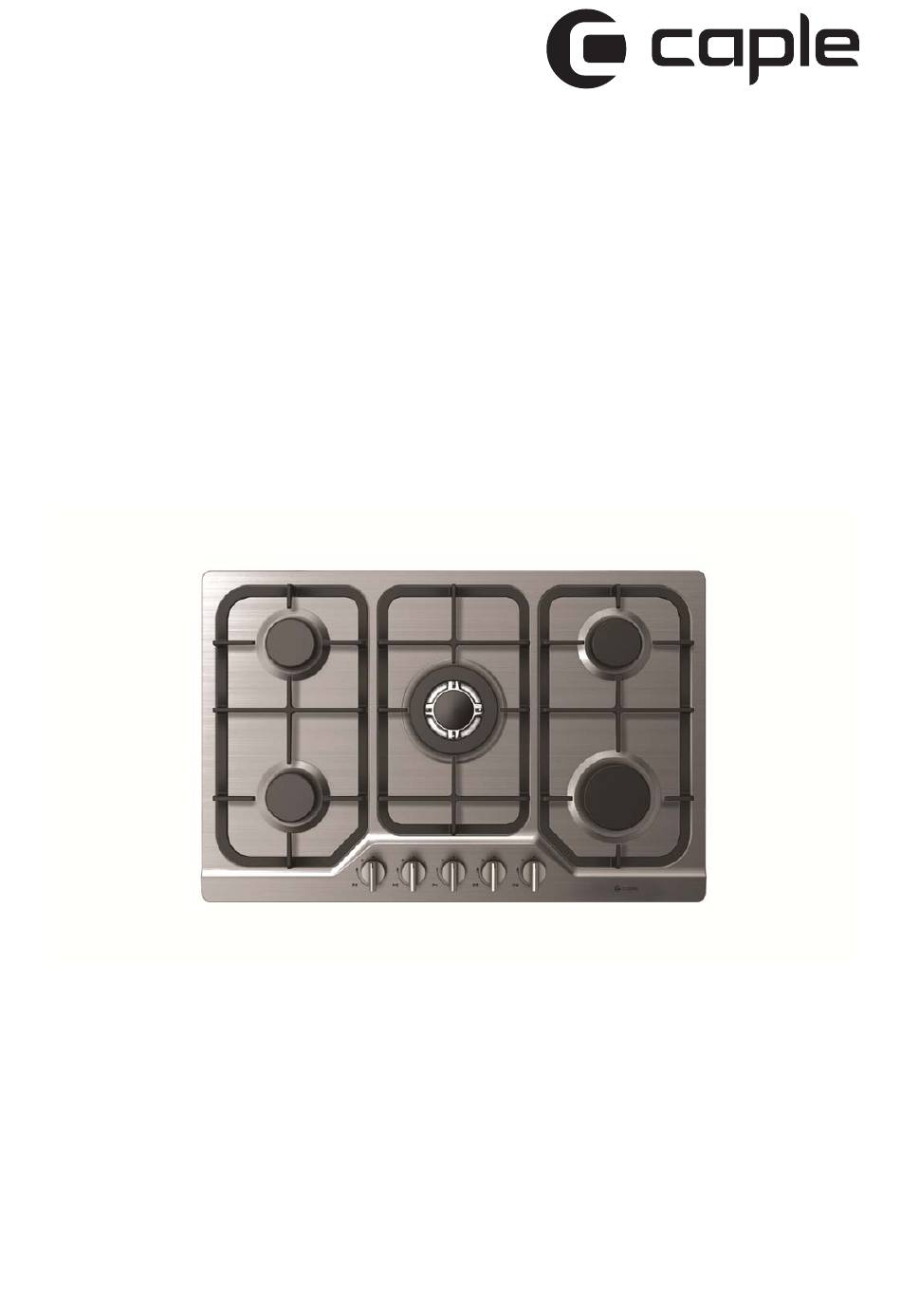

- Page 1 Instruction manual for gas hob Model code: C714G Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Contents Important Information Description of Hob Operation Maintenance and cleaning Troubleshooting Instructions for the installer Technical data Important safety requirements Installation Conversion from NG to LPG or from LPG to NG... -
Page 3: Important Information
Perishable food, plastic items and aerosols may be affected by heat and should not be stored above or below the hob unit. ● Service The hob should only be repaired or serviced by an authorized Service Engineer and only genuine approved spare parts should be ● used. Please contact Caple Service by telephoning 0844 800 3830. -
Page 4: Description Of Hob
Environmental Information After installation, please dispose of the packaging with due regard to safety and the environment. ● When disposing of an old appliance, make it unusable, by cutting off the cable. ● The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it ●... -
Page 5: Maintenance And Cleaning
Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite. Warning: As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering. If the control knobs become difficult to turn, please contact your local service centre. -
Page 6: Technical Data
Cut out dimensions Width: 730mm Depth: 473mm Technical Data Burner configuration Injector Dia. (mm) Injector Dia. (mm) √ Gas category I2H(20)/ I2E(20)/ I2E+ I2Ls I3B/P(30)/ I3+ I3B/P(37) I3B/P(50) I2Lw Wok burner 1.36 1.48 1.95 0.92 0.86 0.84 3.3 (241g/h) Rapid burner 1.18 1.47 0.80... -
Page 7: Important Safety Requirements
Important safety requirements Provision for ventilation The hob should not be installed in a bedsit room with a volume of less than 20m³. If it is installed in a room of volume less than 5m³ an air vent of effective area of 110cm²is required. If it is installed in a room of volume between 5m³and 10m³, an air vent of effective area of 50cm²... -
Page 8: Conversion From Ng To Lpg Or From Lpg To Ng
It is important to install the elbow correctly, with the shoulder on the end of the thread, fitted to the hob connecting pipe. Failure to ensure the correct assembly will cause leakage of gas. End of shaft with 1/2 BSP male thread Washer C: Connector nut D: Barb connector for hose (See Figure 5*) - Page 9 Method Ensure that the gas taps are in the “ ” position ● Isolate the hob from the electrical supply Remove all pan supports, burner caps, rings, crowns and control knobs With the aid of a 7mm box spanner the burner injectors can then be unscrewed and replaced by the appropriate injectors. To adjust the gas rate With the aid of a thin bladed screwdriver completely tighten down by the pass adjustment screw, which is located down the center of the gas tap control shaft.
- Page 10 Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
