Connecting Serial Ata Cables; Fan Connections - Zotac IONITX-F series User Manual

NVIDIA ION PCIEx16 series Motherboard

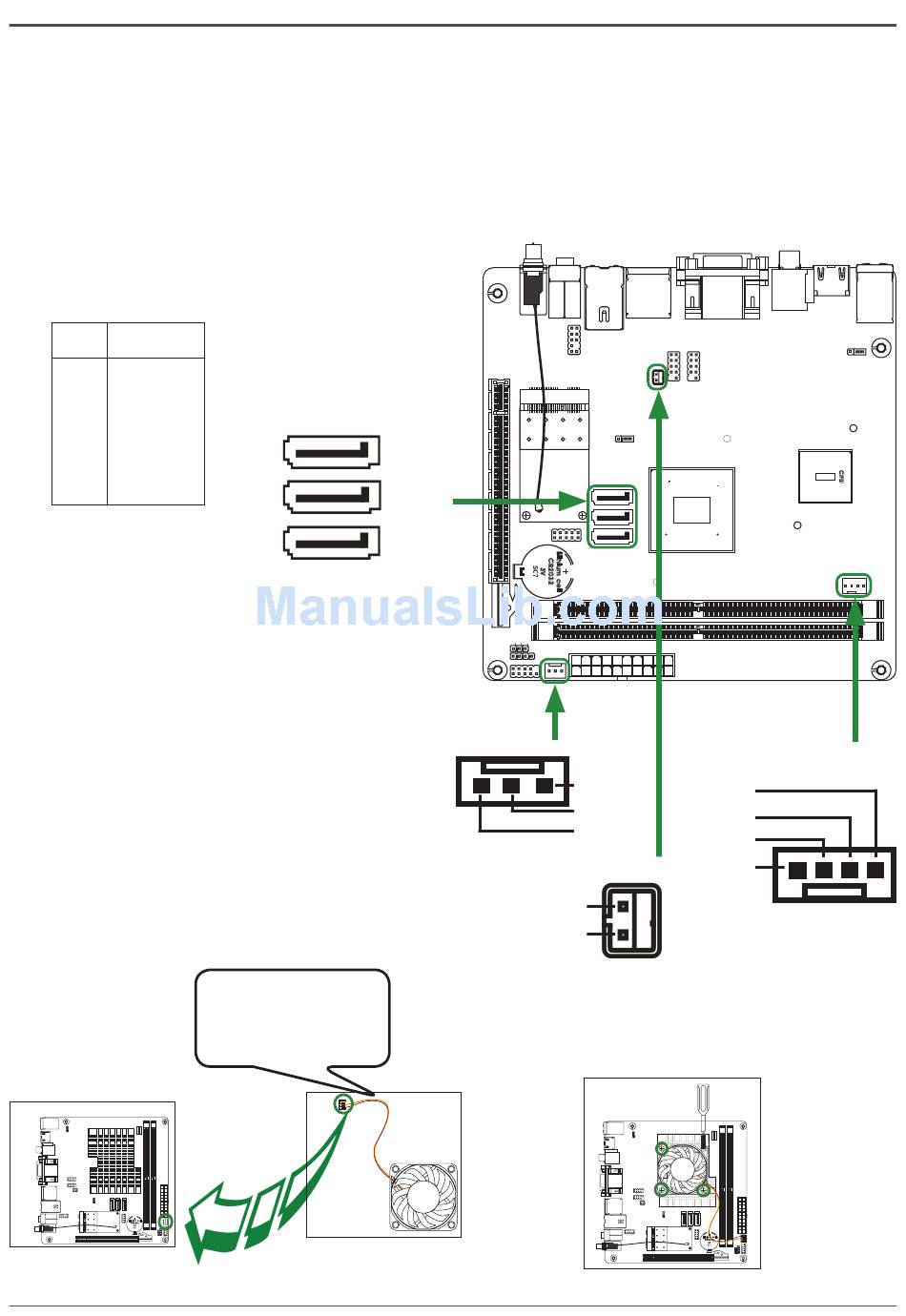

Connecting Serial ATA II Cables
The Serial ATA II connector is used to connect the Serial ATA II device to the
motherboard. These connectors support the thin Serial ATA II cables for primary
storage devices. The current Serial ATA II interface allows up to 3Gb/s data transfer
rate.
There are three serial ATA II connectors on the motherboard that support AHCI and
RAID configurations.
SATA II Pin Definition
PIN SIGNAL
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

Fan Connections

There are three fan connections on
the motherboard. The fan speed
can be detected and viewed in the
PC Health Status section of the
CMOS Setup.
If your system working at a torrid
room,you can append a FAN to the
heatsink.Connect the FAN cable(as
picture 11) to SYS fan connector(as
picture 10) and fixup the FAN on the
heatsink with screw(as picture 12).
10
121 121
CPU
+
Lithium cell
120 240 120 240
CR2032
3V
SC7
6
1
1
1
note:
Fan is only for
330 CPU board!
11
SATA -1
SATA -2
SATA -3
SYS FAN Connector
CHIP FAN Connector
GND
CPU FAN Connector
GND
Control
+12V
Sense
Sense
+12V
GND
5V
12
121
CPU
+
Lithium cell
120 240 120
CR2032
3V
SC7
121
240
