AMD A75ITX series motherboard

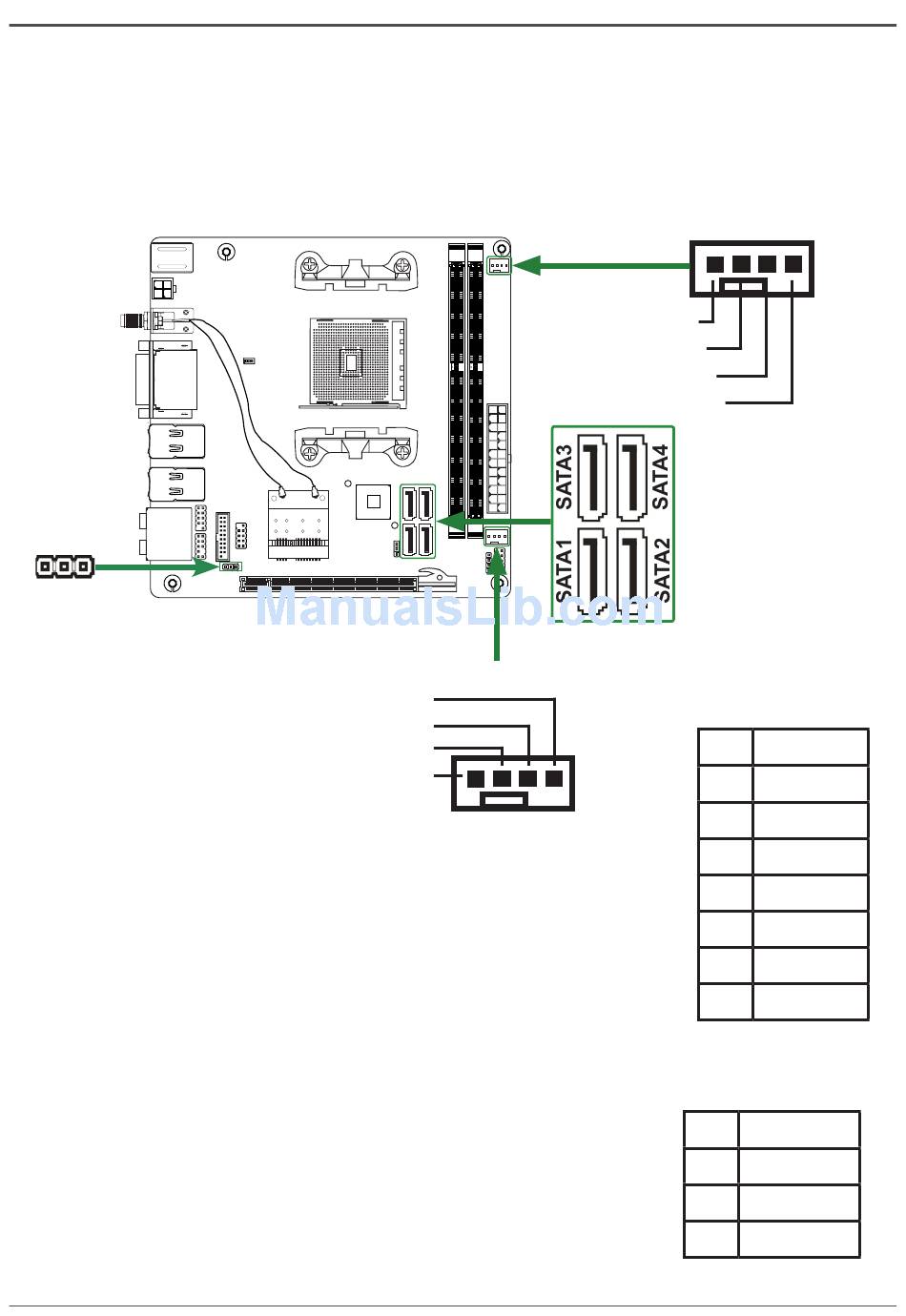

Connecting Serial ATA Cables (optional)

The Serial ATA III connector is used to connect the Serial ATA III device to the
motherboard. These connectors support the thin Serial ATA III cables for primary
storage devices. The current Serial ATA III interface allows up to 6 Gb/s data transfer
rate. There are four serial ATA connectors on the motherboard.
1
CN5

Fan Connectors

There are two fan connectors on the motherboard.
The fan speed can be detected and viewed in the
PC Health section of the CMOS Setup.

SPDIF-Out Connector

This connector provides a SPDIF (Sony/Philips
Digital Interface) output to digital multimedia device
through coaxial connector.
18
121 121
120 240 120 240
SYS FAN Connector
Control
Sense
+12V
GND
CPU FAN Connector
GND
+12V
Sense
Control
SATA-Pin Definition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
CN5 - Pin Definition
Pin Signal
1 GND
2 SPDIF-out
3 VCC
