Zotac IONITX-F series User Manual page 8

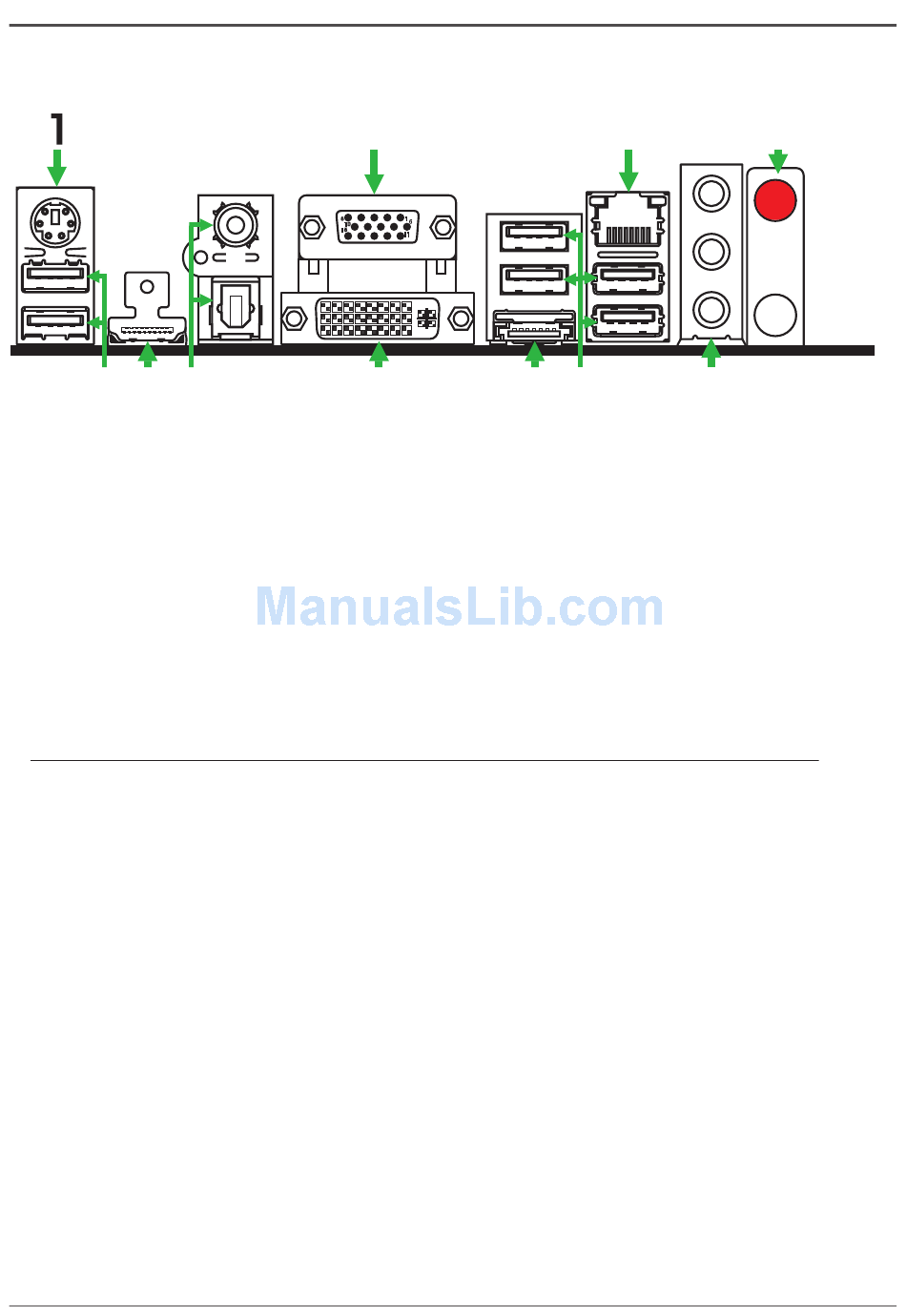

Figure 2: Backpanel connectors
3 4
2
1. PS/2 keyboard connector
2. USB Connectors
3. HDMI Port
4. SPDIF Out(Coaxial / Optical)
5. DVI Connector
6. eSATA Connector
7.Port 2-Channel
Blue Line-In
Green Line-Out
Pink Mic In
8. LAN Connector
Lan Port with LEDs to indicate status.
· Yellow/Light Up/Blink = 10 Mbps/Link/Activity
· Yellow and Orange/Light Up/Blink = 100 Mbps/link/Activity
· Yellow and Orange/Light Up/Blink = 1000 Mbps/link/Activity
9. VGA Port
9
5
6
10
15
11
5
4-Channel
Rear Speaker Out
Front Speaker Out
Mic In
8
6
2
6-Channel
Rear Speaker Out
Front Speaker Out
Center/Subwoofer
Rear Panel
10
7
7
