Motherboard Layout - Zotac IONITX-F series User Manual

NVIDIA ION PCIEx16 series Motherboard

Motherboard Layout

Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.
13
PT3

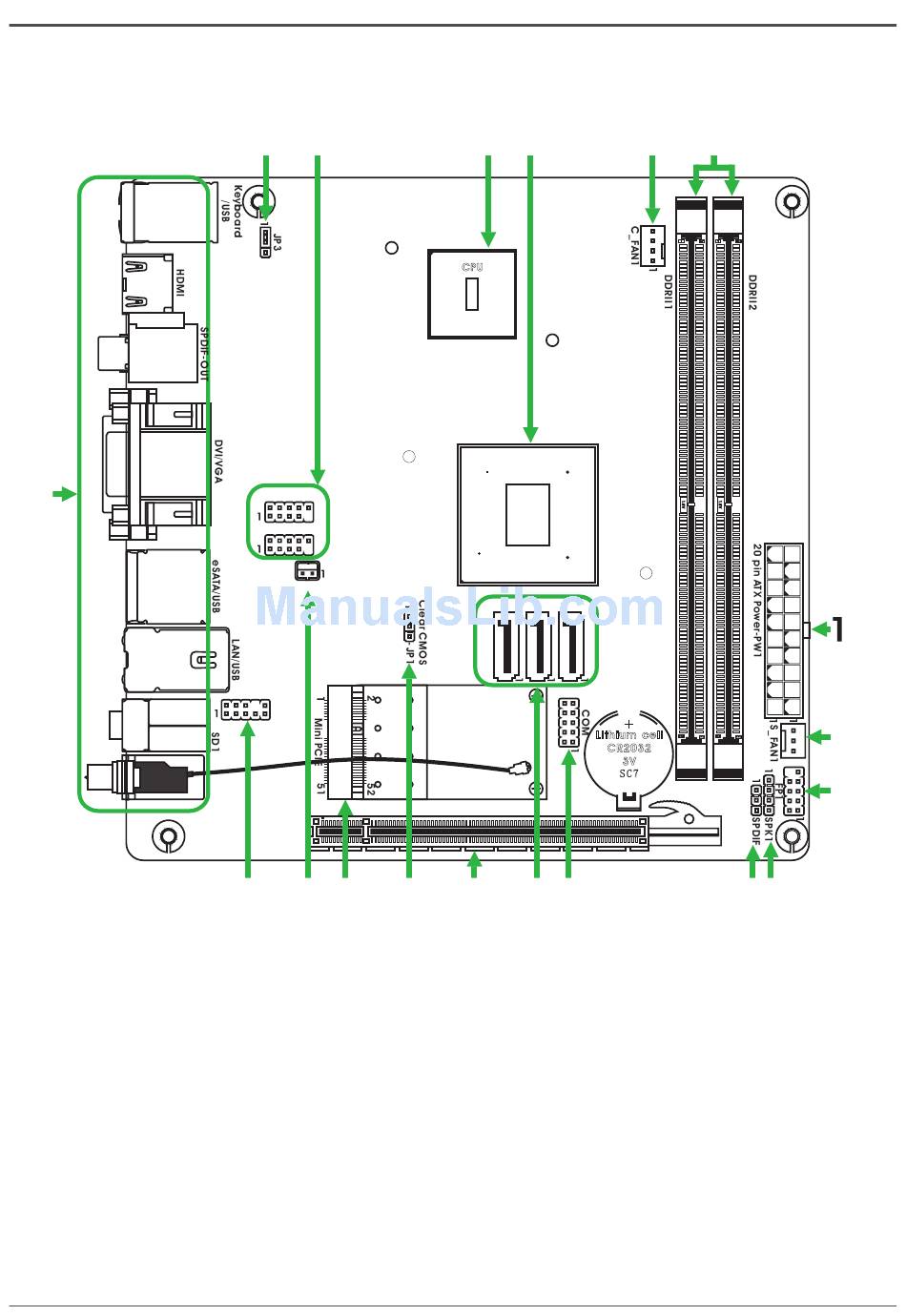

Figure 1. Board Layout
1. 20-pin ATX Power Connector
2. System Fan Connector
3. Front Panel Header
4. Speaker Header
5. SPDIF-out Header
6. COM Header
7. Serial-ATA (SATA) Connectors
8. PCI Express x16
9. Clear CMOS Jumper
10. Mini PCIE Slot
6
14 15
USB-FP_U2
USB-FP_U1
CHIP_FAN- J2505
Front Audio
-FP_S1
PCIE1
12 11 10
1617
CPU
Chiset
+
SATA1 SATA2 SATA3
6
9 8 7
11. Chip Fan Connector
12. Front Audio Header
13. Backpanel Connectors
14. USB power Jumper(PCB Ver:01)
15. USB Headers
16. CPU
17. Chipset
18. CPU Fan Connector
19. DDRII DIMM Sockets
18 19
121 121
Lithium cell
120 240 120 240
CR2032
3V
S C 7
5 4
2
3
