NVIDIA ION PCIEx16 series Motherboard

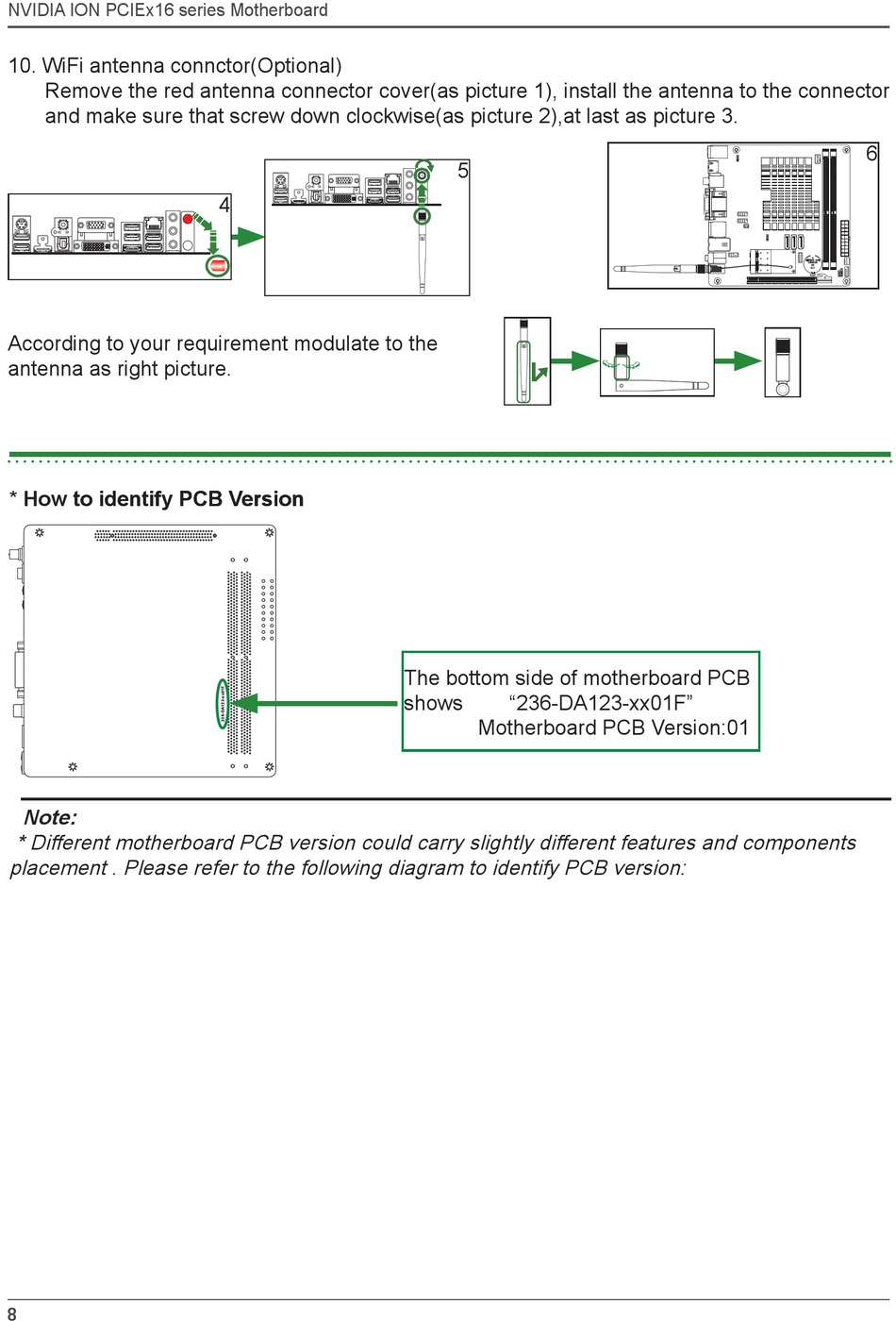

10. WiFi antenna connctor(Optional)
Remove the red antenna connector cover(as picture 1), install the antenna to the connector
and make sure that screw down clockwise(as picture 2),at last as picture 3.
5
6
10
15
11
According to your requirement modulate to the
antenna as right picture.
* How to identify PCB Version to identify PCB Version
Note:
* Different motherboard PCB version could carry slightly different features and components
placement . Please refer to the following diagram to identify PCB version:
8
5
10
15
4

PCB Version
5
6
11

The bottom side of motherboard PCB
shows "236-DA123-xx01F"
Motherboard PCB Version:01

