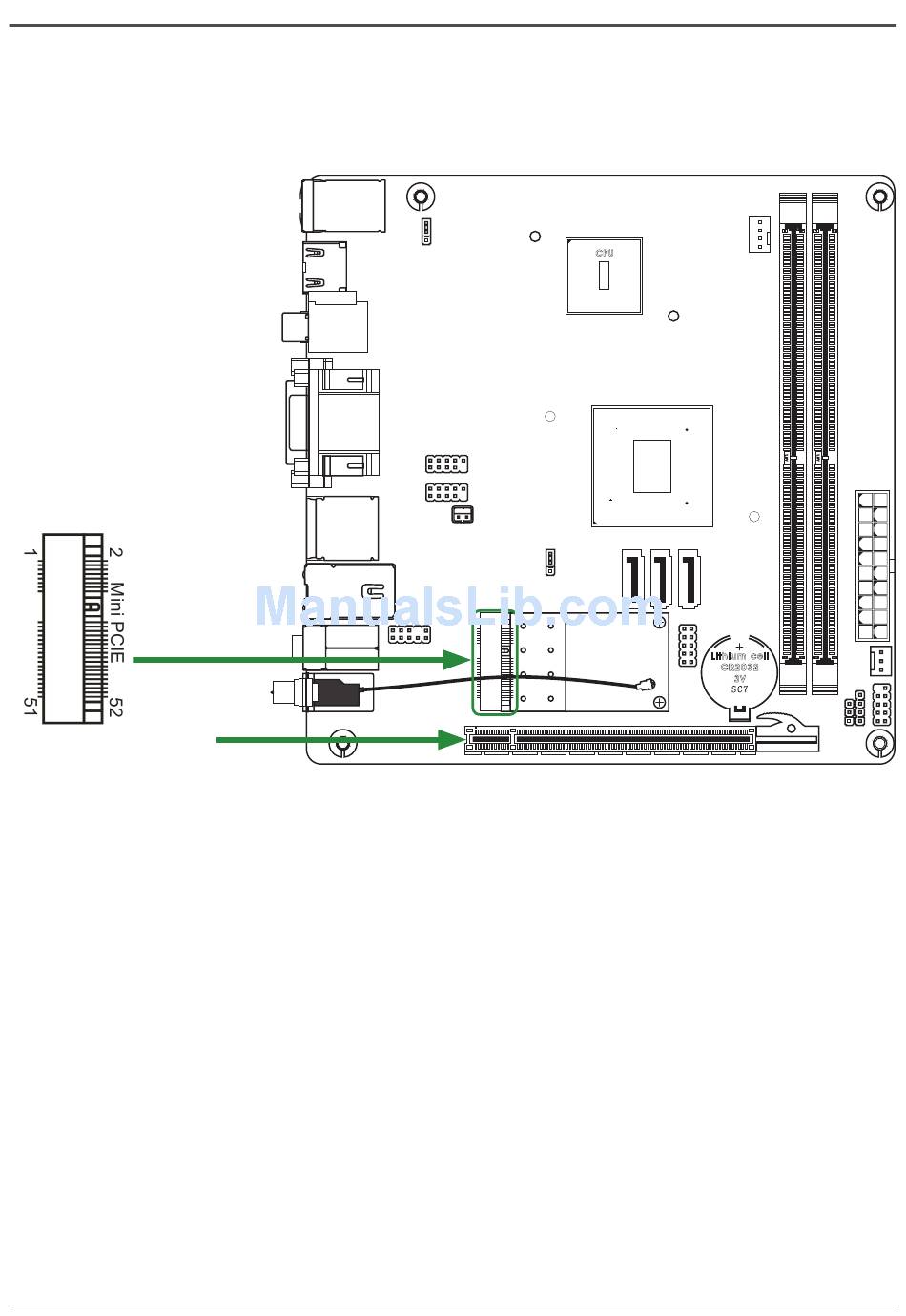

Expansion slots

The NVIDIA MCP7a motherboard provide one expansion slot.
PCI Express x16 slot

Mini PCIE slot

There is one Mini PCI Express slot,reserved for WiFi Module.

PCI Express x16 slots

There is one PCI Express x16 slot reserved for graphics or video cards. The band-
width of the x16 slot is up to 4GB/Sec complianting with PCIE 1.1 specification.
When installing a PCI Express x16 card, be sure the retention clip snaps and locks
the card into place. If the card is not seated properly, it could cause a short across the
pins. Secure the card's metal bracket to the chassis back panel with the screw used
to hold the blank cover.
Hardware Installation
CPU
+
Lithium cell
CR2032
3V
S C 7
121 121
120 240 120 240
7
