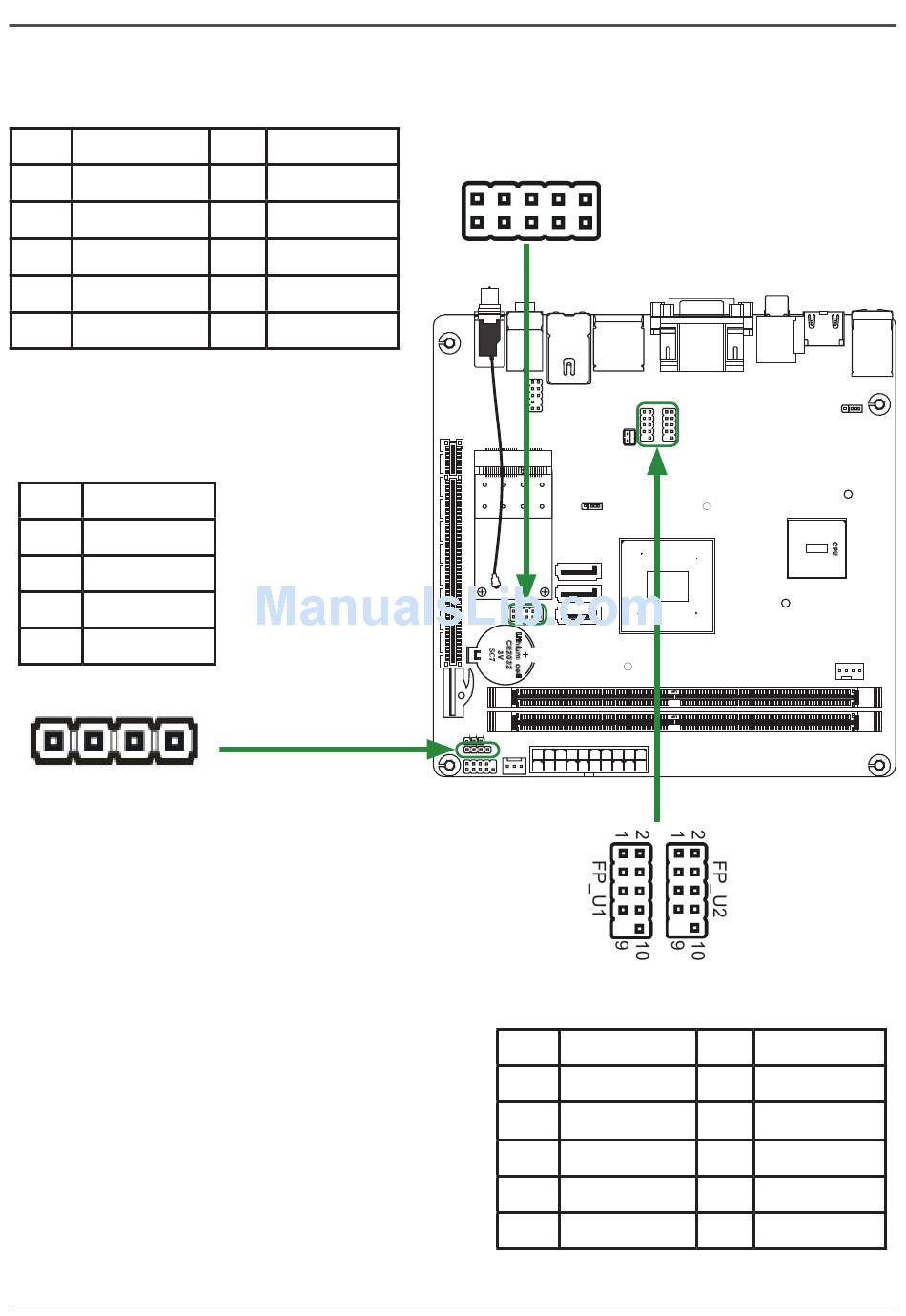

Serial Port Header - COM

COM-Pin Definition
PIN Assignment
1 DCD
2 RXD
3 TXD
4 DTR
5 GND

SPK Header

SPK-Pin Definition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
SPK

USB Headers

This motherboard contains six USB 2.0
ports that are exposed on the rear panel
of the chassis(Figure 2). The motherboard
also contains six 10-pin internal header
connectors onboard.
1. Secure the bracket to either the front or
rear panel of your chassis (not all chassis
are equipped with the front panel option).
4
PIN Assignment
6 DSR
7 RTS
8 CTS
9 RI
10 NC

COM
2 10
1 9
USB-Pin Definition
PIN Assignment
1 VCC
2 VCC
3 USBP0-
4 USBP1-
5 USBP0+
PIN Assignment
6 USBP1+
7 GND
8 GND
9 KEY
10 OC#
