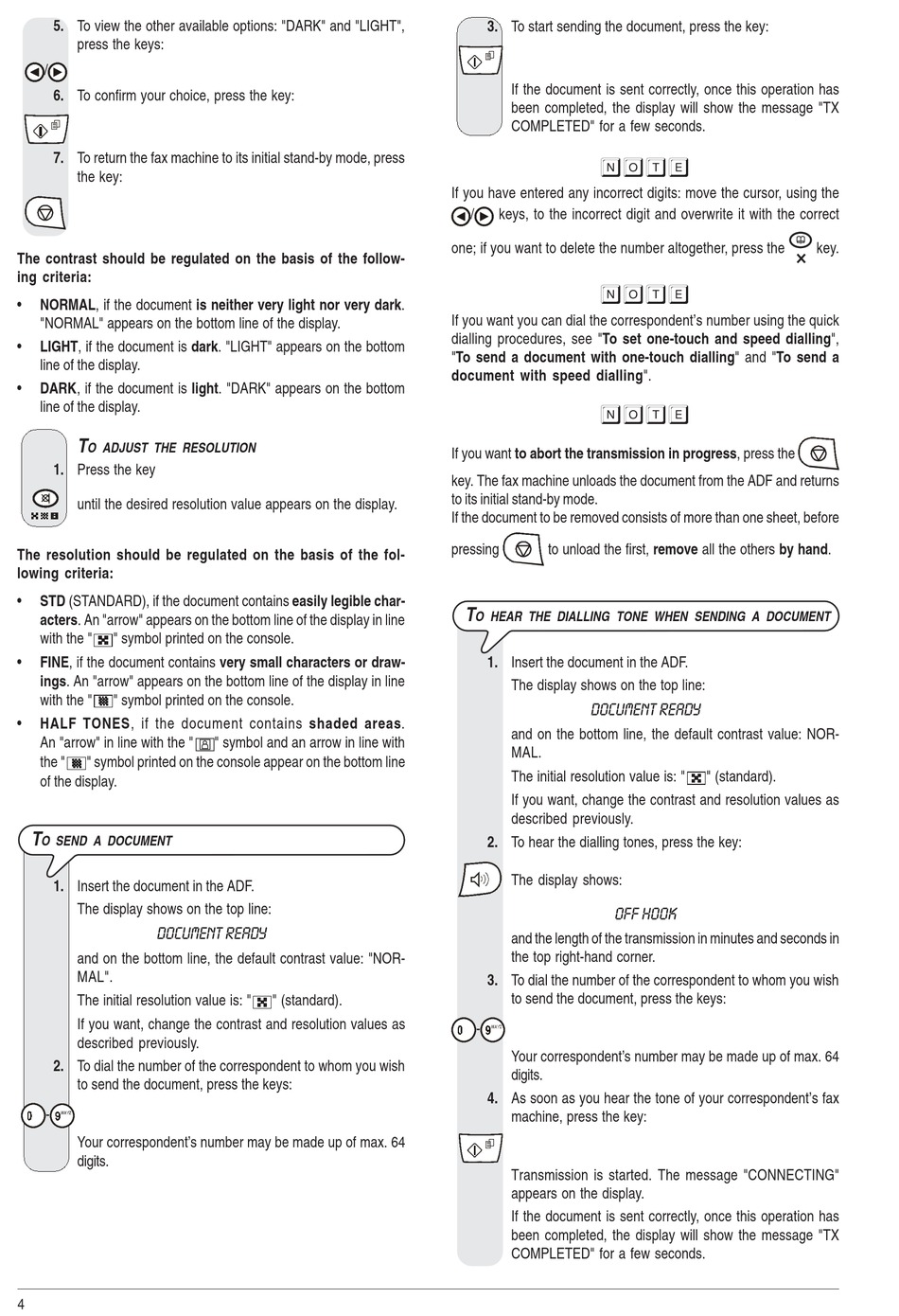

Olivetti Fax-Lab S101 Instructions Manual page 28

5. To view the other available options: "DARK" and "LIGHT",
press the keys:
/
6. To confirm your choice, press the key:
7. To return the fax machine to its initial stand-by mode, press
the key:
The contrast should be regulated on the basis of the follow-
ing criteria:
• NORMAL, if the document is neither very light nor very dark.
"NORMAL" appears on the bottom line of the display.
• LIGHT, if the document is dark. "LIGHT" appears on the bottom
line of the display.
• DARK, if the document is light. "DARK" appears on the bottom
line of the display.
T
O ADJUST THE RESOLUTION
1. Press the key
until the desired resolution value appears on the display.
The resolution should be regulated on the basis of the fol-
lowing criteria:
• STD (STANDARD), if the document contains easily legible char-
acters. An "arrow" appears on the bottom line of the display in line
with the " " symbol printed on the console.
• FINE, if the document contains very small characters or draw-
ings. An "arrow" appears on the bottom line of the display in line
with the " " symbol printed on the console.
• HALF TONES, if the document contains shaded areas.
An "arrow" in line with the "
the " " symbol printed on the console appear on the bottom line
of the display.
T
O SEND A DOCUMENT
1. Insert the document in the ADF.
The display shows on the top line:
and on the bottom line, the default contrast value: "NOR-
MAL".
The initial resolution value is: "
If you want, change the contrast and resolution values as
described previously.
2. To dial the number of the correspondent to whom you wish
to send the document, press the keys:
-
Your correspondent's number may be made up of max. 64
digits.
4
" symbol and an arrow in line with
" (standard).
3. To start sending the document, press the key:
If the document is sent correctly, once this operation has
been completed, the display will show the message "TX
COMPLETED" for a few seconds.
n o t e
If you have entered any incorrect digits: move the cursor, using the
/ keys, to the incorrect digit and overwrite it with the correct
one; if you want to delete the number altogether, press the
n o t e
If you want you can dial the correspondent's number using the quick
dialling procedures, see "To set one-touch and speed dialling",
"To send a document with one-touch dialling" and "To send a
document with speed dialling".
n o t e
If you want to abort the transmission in progress, press the
key. The fax machine unloads the document from the ADF and returns
to its initial stand-by mode.
If the document to be removed consists of more than one sheet, before
pressing to unload the first, remove all the others by hand.
T
O HEAR THE DIALLING TONE WHEN SENDING A DOCUMENT
1. Insert the document in the ADF.
The display shows on the top line:
and on the bottom line, the default contrast value: NOR-
MAL.
The initial resolution value is: "
If you want, change the contrast and resolution values as
described previously.
2. To hear the dialling tones, press the key:
The display shows:
and the length of the transmission in minutes and seconds in
the top right-hand corner.
3. To dial the number of the correspondent to whom you wish
to send the document, press the keys:
-
Your correspondent's number may be made up of max. 64
digits.
4. As soon as you hear the tone of your correspondent's fax
machine, press the key:
Transmission is started. The message "CONNECTING"
appears on the display.
If the document is sent correctly, once this operation has
been completed, the display will show the message "TX
COMPLETED" for a few seconds.
key.
" (standard).
