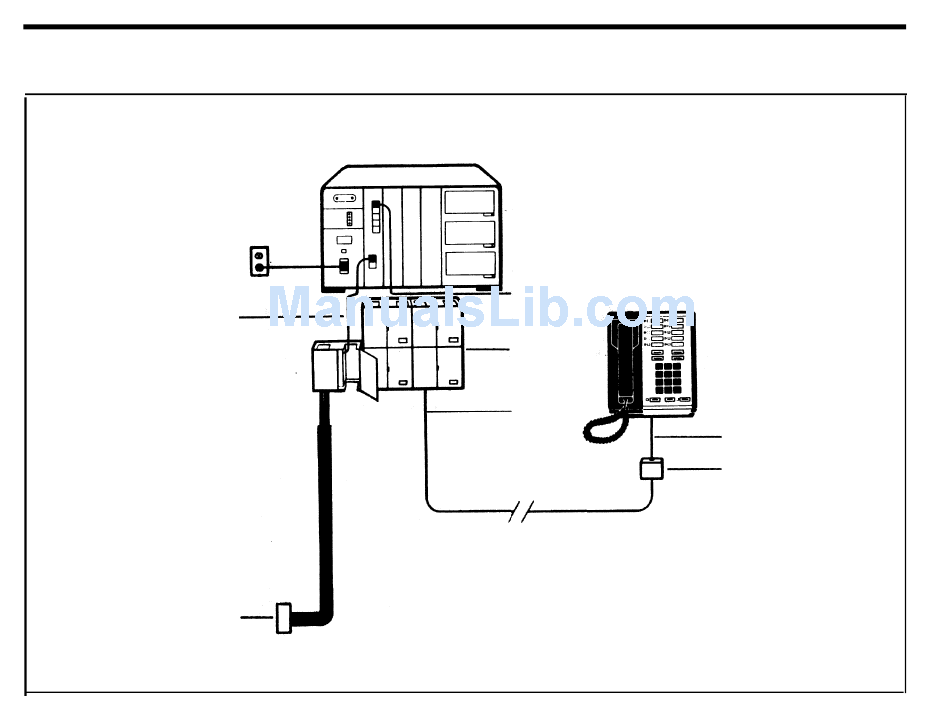

10
AC outlet
9
Line cord
8
Network
Interface
1
Control Unit
2
Modular jumper cord
3
Jack field
4
Building
wiring
7
Voice terminal
6
Modular voice terminal cord
5
Modular wall jack
5
