Label the Jacks and Box
1

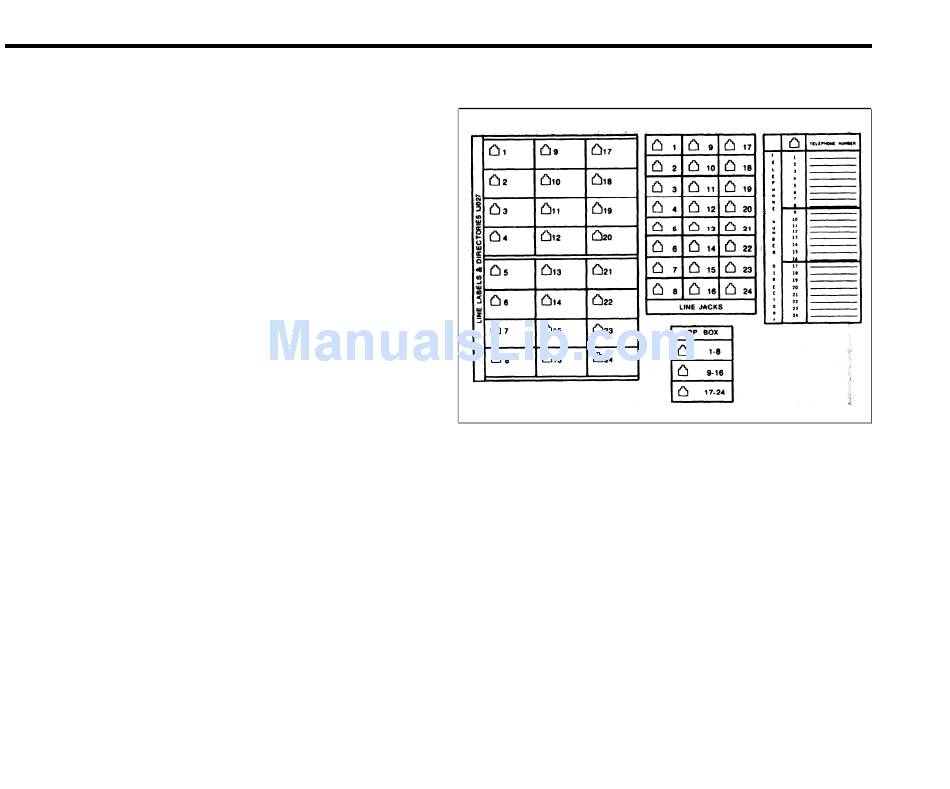

Find the green-on-white label sheet, which includes a telephone
number directory, line jack labels, jack panel box labels, and jack-
identifier label strips.
2
On the telephone number directory, fill in the telephone numbers for
your outside lines in the order in which they appear at the network in-
terface or on the list provided by the local telephone company.
3
Using the telephone number directory as a guide, label the jacks in the
jack panel box with the appropriate line jack labels.
4
Attach the label for jack panel box 1-8 to the outside of the right door
of the jack panel box.
5
Attach the long, narrow label showing jacks 1 through 8 to the inside
of the right door of the jack panel box.
6
Attach the telephone number directory inside the left door of the jack
panel box.
12
3
5
4
2
