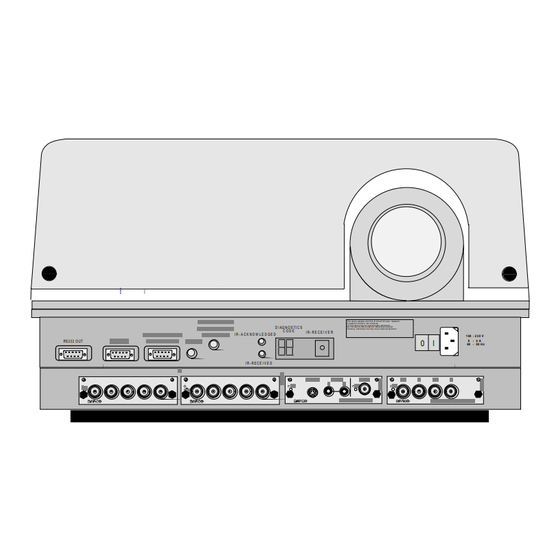

BARCO PROJECTION SYSTEMS
GRAPHICS
8200
R9001330
OWNER'S MANUAL
Art. No. :R5975288
Date: 110497

Advertisement

Table of Contents
loading

Related Manuals for Barco R9001330

Summary of Contents for Barco R9001330

  • Page 1 BARCO PROJECTION SYSTEMS GRAPHICS 8200 R9001330 OWNER'S MANUAL Art. No. :R5975288 Date: 110497...
  • Page 2 Due to constant research, the information in this manual is subject to change without notice. Produced by BARCO NV, April 1997. All rights reserved. Trademarks are the rights of their respective owners. Printed in Belgium...

  • Page 3: Table Of Contents

    Table of Contents WARNINGS & SAFETY INSTRUCTIONS ............................1-1 AVERTISSEMENTS & PRESCRIPTIONS DE SECURITE ......................1-1 UNPACKING & DIMENSIONS ................................ 2-1 Unpacking .................................... 2-2 Projector dimensions ................................2-3 Battery installation in the RCU.............................. 2-4 INSTALLATION GUIDELINES ................................ 3-1 Installation guidelines ................................3-2 * Environment ..................................
  • Page 4 Table of Contents RGB analog input module..............................7-6 Component input module..............................7-9 RGB3S/RG3sB input module.............................. 7-11 Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS 232 input of the projector....... 7-13 Set up of the baud rate for communication with a computer....................7-13 Connecting a RCVDS 05 to the projector.
  • Page 5 Table of Contents Gamma .................................... 11-15 Geometry ..................................11-16 Shift ....................................11-16 Size ....................................11-17 Side keystone .................................. 11-18 Blanking ................................... 11-19 Options .................................... 11-21 INSTALLATION ..................................... 12-1 Starting up the Installation Mode ............................12-2 Input Slots ..................................12-3 Convergence ..................................12-4 Configuration ..................................
  • Page 6 Table of Contents Hardwired RCU................................... 14-2 RCVDS 05 ..................................14-3 VS05 ....................................14-3 MAGIK Interface ................................. 14-4 Adapter and communication cables ............................. 14-4 Ceiling Mount Kit CM100 ..............................14-5 Projector Transport Handle ..............................14-6 Projector Frame for Dual or Triple Configurations ........................ 14-6 Multifunctional flight case ..............................
  • Page 7 Safety Instructions WARNINGS AVERTISSEMENTS Safety instructions Prescriptions de securite On safety Securite On installation Installation On servicing Entretien et reparation On cleaning Nettoyage On repacking R e-emballage On illumination E clairage 5975288 BARCOGRAPHICS 8200 110497...
  • Page 8 Lire ce manuel complètement avant de mettre l’appareil en fonction- nement et le conserver pour consultation ultérieure. L’installation et les réglages préliminaires devraient être faits par du personnel qualifié BARCO ou par des agents autorisés du service BARCO. 5975288 BARCOGRAPHICS 8200 110497...
  • Page 9 Record these numbers in the spaces provided below. Refer international safety standards IEC950, UL 1950 and CSA C22.2 No. to them whenever you call upon your BARCO dealer regarding this 950, which are the safety standards of information technology equip- product.
  • Page 10 Prescription de sécurtié ATTENTION RISQUE D'ELECTRO- CUTION NE PAS OUVRIR ATTENTION : AFIN DE REDUIRE LE RISQUE DE CHOCS ELECTRIQUES, NE PAS ENLEVER LE COUVERCLE (OU LE DOS) IL N'Y A PAS DE PIECES REPARABLES PAR L'UTILISATEUR A L'INTERIEUR LE SERVICE NE PEUT ETRE EFFECTUE QUE PAR DU PERSONNEL QUALIFIÉ...

  • Page 11: Safety Instructions

    Safety Instructions The lightning flash with an arrowhead within a The exclamation point within a triangle is in- triangle is intended to tell the user that parts tended to tell the user that important operating inside this product are risk of electrical shock and/or servicing instructions are included in the to persons.
  • Page 12 Prescription de sécurtié Instructions pour l’utilisateur : type avec terre. Ceci est une mesure de sécurité. Si le connecteur ne s’adapte pas dans la prise, contacter votre électricien pour Si cet équipement cause des interférences de radio ou de télévision, remplacer la prise non valable.
  • Page 13 Safety Instructions Instructions to the user : plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type if this equipment does cause interference to radio or television plug. WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE reception, the user may try to correct the interference by one or more GROUNDED (EARTHED) via the supplied 3 conductor AC power of the following measures :...
  • Page 14 Prescription de sécurtié * Pour débrancher le cordon, le tirer par le connecteur, jamais par le * Ne pas utiliser le projecteur à proximité d’eau. cordon lui-même. * N’utiliser que le cordon d’alimentation fourni avec votre projecteur. * Si on utilise une rallonge, vérifier que le total des courants des Bien qu’ils se ressemblent, d’autres cordons d’alimentation n’ont appareils raccordés à...
  • Page 15 Safety Instructions * To disconnect the cord, pull it out by the plug. Never pull the cord * Use only the power cord supplied with your projector. While itself. appearing to be similar, other power cords have not been safety tested at the factory and may not be used to power the projector.
  • Page 16 N’utili- - Si on a répandu du liquide dans le projecteur. ser que des lampes de projection indiquées par BARCO ou un agent autorisé de BARCO ou un service. - Si l’appareil a été exposé à la pluie ou à de l’eau.
  • Page 17 Refer all projector service to a qualified BARCO service center. The projecor uses a metal halide projection lamp. Replacing the...
  • Page 18 Prescription de sécurtié Pour garantir les meilleures performance et définition, les objectifs de Eclairage projection sont spécialement traités avec un revêtement anti-reflets. En conséquence : éviter de toucher les objectifs. Pour enlever la Pour garantir la meilleure qualité possible de l’image projetée, il est poussière de l’objectif, utiliser un chiffon sec et doux.
  • Page 19 Safety Instructions To ensure the highest optical performance and resolution, the On illumination projection lenses are specially treated with an anti-reflective coating, therefore : avoid touching the lens. To remove dust on the lens, use In order to obtain the best quality for the projected image, it is essential a soft dry cloth.

  • Page 20: Unpacking & Dimensions

    Unpacking & Dimensions UNPACKING DIMENSIONS BATTERY INSTALLATION ON THE RCU 5975646 BARCOGRAPHICS 8100 090296...

  • Page 21: Unpacking

    Unpacking & Dimensions Unpacking To open the banding, pull on the clip as shown in the first drawing. Pull To open Take the projector out of its shipping carton and place it on a table. For transportation, the projector is mounted on a wooden board with 3 bolts. Use a 13 mm wrench to remove these bolts. When using the projector as a table mounted configuration, always mount the 3 supporting feet (see drawing below).

  • Page 22: Projector Dimensions

    Unpacking & Dimensions Projector dimensions (units : mm) Some examples of lenses : Name lens L min L max mm(inch) mm(inch) HD(1.2:1) 1072 (42.20) 1087 (42.79) HD(2.2:1) 1043 (41.06) 1070 (42.12) HD(3.3:1) 1017 (40.04) 1072 (42.20) HD(3.9:1) 1022 (40.24) 1162 (45.75) HD(5:1) 1082 (42.60) 1202 (47.32)

  • Page 23: Battery Installation In The Rcu

    Unpacking & Dimensions Battery installation in the RCU. A battery (not yet installed to save the battery life time) is delivered inside the plastic bag with the power cord. To install the battery, remove the battery cover on the backside of the remote control by pushing the indicated handle a little to the bottom of the RCU.

  • Page 24: Installation Guidelines

    Installation Guidelines INSTALLATION GUIDELINES Environment What about ambient light? Which screen type? What image size? How big should the image be? Where to install the projector? How to install the projector? 5975288 BARCOGRAPHICS 8200 110497...

  • Page 25: Environment

    Installation Guidelines Installation guidelines Careful consideration of things as image size, ambient light level, projector placement and type of screen to use are critical to the optimum use of the projection system. Max. ambient temperature : 40°C. * Environment Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity.

  • Page 26: Which Screen Type

    Installation Guidelines * Which screen type? There are two major categories of screens used for projection equipment. Those used for front projected images and those for rear projection applications. Screens are rated by how much light they reflect (or transmit in the case of rear projection systems) given a determined amount of light Screen width projected toward them.

  • Page 27: Where To Install The Projector

    Installation Guidelines * Where to install the projector? Inputs and computer video format input compatibility : Some examples : Definitions of the Abbreviation on drawings VIDEO and S-VIDEO B = Distance between ceiling and top of the screen or between COMPONENT VIDEO floor and bottom of the screen.
  • Page 28 Installation Guidelines Ceiling mounting of the BARCOGRAPHICS 8200 Table mounting of the BARCOGRAPHICS 8200 Ce il in g Optical axis p rojection lens CD = B - A Pr o je c t o r S c re e n S c r e e n Proje ct or C D = B - A...

  • Page 29: How To Install A Projection Lens

    BARCOGRAPHICS 8200 to the ceiling. The following lenses are available as an option : HD(1.2:1) The installation instruction for this support is enclosed in the packet HD(2.2:1) of the set. You can order these instructions also from BARCO. HD(3.3:1) HD(4.0:1) HD(5:1) BARCO projection table.

  • Page 30: Installation Set Up

    Installation Set Up INSTALLATION SET UP Projector configuration 5975288 BARCOGRAPHICS 8200 110497...

  • Page 31: Installation Set Up

    Installation Set Up The BARCOGRAPHICS 8200 can be installed to project images in four different configurations : front/table, front/ceiling, rear/table and rear/ceiling. Rear/Ceiling Front/Ceiling Rear/Table Front/Table 5975288 BARCOGRAPHICS 8200 110497...
  • Page 32 Installation Set Up To change the Configuration, enter the adjustment mode by pushing ADJUST or ENTER . ADJUSTMENT MODE Highlight Installation by pushing the control disk up or down and press ENTER to select. The installation menu will be displayed. Select a path from below : GUIDED RANDOM ACCESS...

  • Page 33: Location And Function Of Controls

    Location and Functions of Control LOCATION AND FUNCTION OF CONTROLS Front panel terminology Local keypad Remote control 5975288 BARCOGRAPHICS 8200 110497...

  • Page 34: Front Panel Terminology

    Location and Functions of Control Front panel terminology P R O J E C T O R M O D E : T his devic e com plies wit h P ar t 15 of t he F CC r ules . Oper ation is s ubjec t t o f ollowing two condit ions : ( 1) T his dev ic e m ay not c ause har mf ul int er f erenc e D I A G NO S T I C S...

  • Page 35: Control Panel Terminology

    Location and Functions of Control Control Panel Terminology a. Local keypad Getting access The keypad is located behind a door, screened with the name of the projector. To open the door, push once on the indicated side of the door and turn it to the front side of the projector.

  • Page 36: Location And Functions Of Control

    Location and Functions of Control Remote Control (RCU) Local keypad EXIT ENTER STBY PAUSE TEXT FREEZ HELP PHASE SHARPNESS S T A N D B Y E X I T TINT E N T E R COLOR T E X T P A U S E BRIGHTNESS CONTRAST...

  • Page 37: Location And Functions Of Control

    Location and Functions of Control Terminology TEXT : when adjusting one of the image, e.g. controls during a meeting, the displayed bar scale can be removed by pressing 'TEXT' key first. To re-display the bar scale on Back light key : when activated, all keys will be lighted up the screen, press 'TEXT' key again.

  • Page 38: Power Connection

    Power Connection POWER CONNECTION 5975288 BARCOGRAPHICS 8200 110497...

  • Page 39: Fuses

    Power Connection Power (mains) cord connection Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the front of the projector. The power input is auto-ranging from 100 to 240 VAC. This projector may be connected to an IT-power system.
  • Page 40 Power Connection When switching on with the power switch, the projector starts in the stand by mode. The projector mode indication lamp is red. To start image projection : a. press the 'Stand by' button on the local keypad or on the remote PROJECTOR MODE : GREEN - OPERATION control.

  • Page 41: Switching To Stand-By

    (normal power mode). Do not use it longer. Replace always with a Operating the lamp longer than 1000 hours may damage same type of lamp. Call a BARCO authorized service technician for the projector. Please replace the lamp lamp replacement.

  • Page 42: Input Module Connections

    Connections INPUT MODULE CONNECTIONS Module insertion into the projector. Video/S-Video input module RGB analog input module Component input module RGB3S/RG3sB input module Peripheral equipment connection Connecting a computer Connecting a RCVDS05 Connecting a VS05 Connecting an IR Remote Receiver 800 5975288 BARCOGRAPHICS 8200 110497...

  • Page 43: Input Connections

    Connections Input connections. The projector has modular input facilities. The input slots can be filled up with the following modules : DIAGNOSTICS CODE IR- RECEI VER IR- ACKNO WLEDGED Video, S-video (PAL, SECAM, NTSC) input 1 00 - 23 0 V R S 2 32 O U T 9 - 4 A 60 - 50 H z...

  • Page 44: Video/S-Video Input Module

    Connections A U D I O Video/S-video input module To the Video input : Composite video signals from a VCR, OFF air signal decoder, etc... 1 x BNC 1.0Vpp ± 3 dB VID EO/S-VIDEO INPUT To the S-Video input : Audio input not S-Video input available...
  • Page 45 Connections Push the Control disk up or down to highlight Installation and press ENTER to display the Installation menu. ADJUSTMENT MODE EXIT returns to operational mode. Select a path from below : GUIDED RANDOM ACCESS INSTALLATION SERVICE Use the control disk to select Input Slots by pushing it up or down and Source 01 Select with press ENTER .
  • Page 46 Connections Straps on module level. Floating or non-floating input. Video input : J11 : strap "yes" : non floating strap "no" : floating S-Video input : J12 : strap "yes" : non floating strap "no" : floating J13 : strap "yes" : non floating strap "no" : floating Factory preset : strap on, input non floating.

  • Page 47: Rgb Analog Input Module

    Connections RGB analog input module. RGBS/RGsB analog : 5 x BNC Red : 0.7 Vpp ± 3 dB RGB analog input terminals with separate Horizontal and Vertical Blue : 0.7 Vpp ± 3 dB sync inputs(RGB-HV), with Composite sync input(RGB-S) or with Green : 0.7 Vpp ±...
  • Page 48 Connections RGB input selection : Sync selection Separate sync S y n c o n g r e e n Key in the corresponding slot number on the RCU or the local keypad. Straps on module level : Floating or non-floating input. Red : J3 : strap "yes"...
  • Page 49 Connections Push the control disk up or down to select Installation and press ENTER . ADJUSTMENT MODE Select a path from below : GUIDED RANDOM ACCESS INSTALLATION SERVICE Use the control disk to select Input Slots by pushing up or down and Source 01 Select with press ENTER .

  • Page 50: Component Input Module

    Connections Component input module. Connect your component signals (Y-luma, R-Y and B-Y), e.g. a professional VCR to the Component input module. Component video : 4 x BNC R-Y : 0.7 Vpp ± 3 dB B-Y : 0.7 Vpp ± 3 dB 0.7 Vpp ±...
  • Page 51 Connections Component input selection : Floating or non floating input N o n - F l o a t i n g Key in the corresponding slot number on the RCU or the local keypad. Floating Indication on the input slot menu : Component Video-SS = Component video with separate sync Component Video-SOY = Component video with sync on Y Component Video-3LSS = Component video with 3 level separate...

  • Page 52: Rgb3S/Rg3Sb Input Module

    Connections RGB3S/RG3sB input module. Connect your RGB signals with Tri-level sync, e.g. a professional H / C VCR to the RGB 3 level sync input module. RGB3S/RG3sB analog : 5 x BNC Red :0.7 Vpp ± 3 dB Blue : 0.7 Vpp ± 3 dB Green : 0.7 Vpp ±...
  • Page 53 Connections Straps on module level : Sync selection Separate sync S y n c o n g r e e n Floating or non-floating input. Red : J3 : strap "yes" : non floating strap "no" : floating Green : J4 : strap "yes" : non floating strap "no"...

  • Page 54: Connecting A Computer, E.g. Ibm Pc (Or Compatible), Apple Macintosh To The Rs 232 Input Of The Projector

    Connections Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS 232 input of the projector. T hi s d ev ic e c ompl i es w i th P a rt 1 5 o f th e F CC ru le s . O pe r at io n i s su bj ec t t o fo ll ow i ng tw o co n di ti on s : ( 1) Th i s d ev ic e ma y n ot ca u se ha r mf u l in t er f er e nc e DI AGNO STI CS...

  • Page 55: Connecting A Rcvds 05 To The Projector

    For more information about the use of the VS05, consult the VS05 P r o j e c ti o n r o o m C o n tr o l r o o m owner's manual, BARCO order number : R5975245. 7-14 5975288 BARCOGRAPHICS 8200 110497...

  • Page 56: Controlling

    Controlling CONTROLLING How to use the RCU. Projector address How to display a projector address. How to program an address into the RCU. Picture controls with direct access. 5975288 BARCOGRAPHICS 8200 110497...

  • Page 57: How To Use The Rcu

    Controlling The BARCOGRAPHICS 8200 can be controlled with b) RCU used in a hardwired configuration. a. the RCU b. the hardwired RCU (cable is not included) c. the local keypad. Controlling the projector with the RCU and the hardwired RCU is equal.

  • Page 58: Projector Address

    Controlling c) Point the front of the RCU directly at one of the IR sensors of the Projector address projector. a. Software set up of the projector address. IR s e ns o r IR s e ns o r Ce ilin g See 'Change projector address' in chapter 'Service mode'.

  • Page 59: How To Display A Projector Address

    Controlling How to display a projector address? Press the ADDRESS key (recessed key on the RCU) with a pencil. The projector's address will be displayed in a 'Text box'. This text box disappears after a few seconds. To continue using the RCU, it is necessary to enter the same address with the digit buttons (address between 0 and 9).
  • Page 60 Controlling Contrast Control Tint Control A correct 'contrast' setting is important for good image reproduction. Tint is only active for Video and S-Video when using the NTSC 4.43 Adjust the contrast to the level you prefer, according to room lighting or NTSC 3.58 system.

  • Page 61: Start Up Of The Adjustment Mode

    Start Up of the Adjustment Mode START UP OF THE ADJUSTMENT MODE 5975288 BARCOGRAPHICS 8200 110497...

  • Page 62: Adjustment Mode

    Start Up of the Adjustment Mode Adjustment Mode All source set ups, picture tunings and geometry are made while in the 'Adjustment mode' . Press the ADJUST or ENTER key to enter the 'Adjustment mode'. ADJUSTMENT MODE Select a path from below : You are now in the 'Adjustment mode'.
  • Page 63 Start Up of the Adjustment Mode Some items in the Adjustment mode are password protected. While selecting such an item, the projector asks to enter your password (Password protection is only available when the password strap on the controller module is ON, see 'Change password' in chapter 'Service mode'.

  • Page 64: Guided Adjustment Mode

    Guided Adjustment Mode GUIDED ADJUSTMENT MODE 10-1 5975288 BARCOGRAPHICS 8200 110497...

  • Page 65: Guided Adjustment Mode

    Guided Adjustment Mode The Guided Adjustment Mode is not active. ADJUSTMENT MODE Select a path from below : GUIDED RANDOM ACCESS INSTALLATION SERVICE Source 01 Select with then <ENTER> <EXIT> to return. 10-2 5975288 BARCOGRAPHICS 8200 110497...

  • Page 66: Random Access Adjustment Mode

    Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE File Service Picture Tuning Geometry 11-1 5975288 BARCOGRAPHICS 8200 110497...

  • Page 67: Starting Up The Random Access Adjustment Mode

    Random Access Adjustment Mode Starting up the Random Access Adjustment Mode ADJUSTMENT MODE Push the control disk up or down to highlight 'Random Access' and then press ENTER . Select a path from below : GUIDED RANDOM ACCESS INSTALLATION SERVICE Source 01 Select with then <ENTER>...

  • Page 68: File Service

    Random Access Adjustment Mode File service File annotation : xxxxxxxx.xxx x xxxxXxxxxi Before using a new source, a correct file has to be installed. The projector's memory contains a list of files corresponding to the most i or blanc : i = interlaced, blanc = not used sources.

  • Page 69: Load File

    Random Access Adjustment Mode Load file Push the control disk up or down to select LOAD and press ENTER to display the Load menu. FILE SERVICE The Load menu displays the corresponding files depending on the LOAD installed filter. EDIT RENAME COPY This filter can be "Fit"...

  • Page 70: Edit File

    Random Access Adjustment Mode Edit file The Edit file menu makes it possible to change the settings of the file according to the real settings of the connected source. Consult the FILE SERVICE source specification before entering the data. To start up the EDIT menu, push the control disk up or down to select LOAD EDIT EDIT in the FILE menu and press ENTER .
  • Page 71 Random Access Adjustment Mode up or down to scroll to desired digit. When finished press ENTER to of the projected image. This value is normally given in the specifica- confirm. tion of the source. If not, adjust until full image height is displayed (no c.
  • Page 72 Random Access Adjustment Mode Options Source number : The source number of a non-active source can be changed to any other source number. This makes it possible to EDIT FILE OPTIONS Source number create a file for future source numbers. Clamp position [leading] Clamp delay...
  • Page 73 Random Access Adjustment Mode Vertical refresh [sync/async] : The way of updating the image information on the LCD panels. For moving images, the vertical refresh has to be done on a synchronous way, for still images, asynchronous vertical refresh is possible. Vertical sync polarity : [leading] or [trailing] The vertical refresh can be synchronised with the leading sync edge or trailing sync edge.

  • Page 74: Rename

    Random Access Adjustment Mode Rename FILE SERVICE To change the name of a selected file. LOAD Use the control disk to select RENAME and press ENTER . The EDIT Rename selection menu will be displayed. RENAME COPY DELETE OPTIONS Use the control disk to select a file name and press ENTER to select. Select with then <ENTER>...

  • Page 75: Copy

    Random Access Adjustment Mode Copy FILE SERVICE To copy a selected file into a new file. LOAD Use the control disk to select COPY and press ENTER . The Copy EDIT RENAME selection menu will be displayed. COPY DELETE Use the control disk to select a file name and press ENTER to select. OPTIONS The Copy menu will be displayed with the selected file name already Select with...

  • Page 76: Delete

    Random Access Adjustment Mode Delete FILE SERVICE To delete a selected file out of the list of files. LOAD Use the control disk to select DELETE and press ENTER . The delete EDIT RENAME selection menu will be displayed. COPY DELETE OPTIONS Push the control disk up or down to select a file and press ENTER .

  • Page 77: File Options

    Random Access Adjustment Mode File Options FILE SERVICE Use the control disk to select OPTIONS and press ENTER . The LOAD option selection menu will be displayed. EDIT RENAME COPY DELETE OPTIONS Select with Press ENTER to toggle between [name] and [index] FILE OPTIONS then <ENTER>...

  • Page 78: Sync Slow/Fast

    Random Access Adjustment Mode Sync slow/fast PICTURE TUNING Highlight sync by pushing the control disk up or down and press ENTER to toggle SYNC [SLOW] between SLOW and FAST. STILL VIDEO [ON] COLOR BALANCE GAMMA Note : Sync is normally used in the SLOW position. The FAST position is used to compensate for unsteady sync pulses from older video playback equipment.

  • Page 79: Color Balance

    Random Access Adjustment Mode Color Balance PICTURE TUNING Highlight Color Balance by pushing the control disk up or down and SYNC : SLOW press ENTER to select the color balance selection menu. STILL VIDEO : ON COLOR BALANCE GAMMA The next choices are possible : Fixed color balance : Select with COLOR BALANCE...

  • Page 80: Gamma

    Random Access Adjustment Mode Gamma PICTURE TUNING With the gamma correction adjustment, it is possible to bring the SYNC [SLOW] details in dark image parts more to the front (lower image values) or STILL VIDEO [ON] COLOR BALANCE to reduce the importance of these details (higher gamma values). GAMMA To change the gamma value, highlight Gamma by pushing the control disk up or down and press ENTER .

  • Page 81: Geometry

    Random Access Adjustment Mode Geometry RANDOM ACCESS ADJUSTMENT MODE Highlight Geometry by pushing the control disk up or down and press FILE SERVICE ENTER to select the geometry selection menu. PICTURE TUNING The following adjustment are possible : GEOMETRY - horizontal and vertical image shift. - horizontal and vertical image size Select with - side keystone (only necessary if the projector is mounted under...

  • Page 82: Size

    Random Access Adjustment Mode Size GEOMETRY Highlight Size by pushing the control disk up or down and press SHIFT ENTER to select. SIZE SIDE KEYSTONE BLANKING OPTIONS Select with then <ENTER> <EXIT> to return. The size can be adjusted in a vertical or horizontal way. Fi xed si des When adjusting the vertical size, Horizontal size...

  • Page 83: Side Keystone

    Random Access Adjustment Mode Side keystone GEOMETRY Highlight Side Keystone by pushing the control disk up or down and SHIFT press ENTER to select. SIZE SIDE KEYSTONE BLANKING The side keystone adjustment is used to align the image if the OPTIONS projector is mounted as a non standard projection angle.

  • Page 84: Blanking

    Random Access Adjustment Mode Blanking GEOMETRY Highlight Blanking by pushing the control disk up or down and press SHIFT ENTER to select. SIZE SIDE KEYSTONE BLANKING OPTIONS Blanking adjustments affect only the edges of the projected image Select with then <ENTER> and are used to frame the projected image on to the screen and to <EXIT>...
  • Page 85 Random Access Adjustment Mode Adjustment of the blanking on the of the image BLANKING Adjustment of the blanking on the bottom of the image BOTTOM LEFT Correct by pushing the control disk up or down RIGHT Select with then <ENTER> <EXIT>...

  • Page 86: Options

    Random Access Adjustment Mode Options GEOMETRY Highlight Options by pushing the control disk up or down and press SHIFT ENTER. The Geometry Options menu will be displayed. SIZE The next question will be asked by the projector : SIDE KEYSTONE BLANKING 'Use the same side keystone correction for all files ? [YES] or [NO].

  • Page 87: Installation

    Installation INSTALLATION Convergence Configuration Internal Patterns 12-1 5975288 BARCOGRAPHICS 8200 110497...

  • Page 88: Starting Up The Installation Mode

    Installation Starting up the Installation Mode ADJUSTMENT MODE Push the control disk up or down to highlight Installation and then Select a path from below : press ENTER . GUIDED RANDOM ACCESS INSTALLATION SERVICE ENTER continues to the Installation mode selection menu. Source 01 EXIT returns to operational mode.

  • Page 89: Input Slots

    Installation Input Slots INSTALLATION Highlight Input Slots by pushing the control disk up or down and press INPUT SLOTS ENTER . CONVERGENCE The internal system will scan the input slots and displays the result CONFIGURATION INTERNAL PATTERNS in the Input Slots menu. Source indication Select with...

  • Page 90: Convergence

    Installation Convergence INSTALLATION Highlight "Convergence" by pushing the control disk up or down and INPUT SLOTS CONVERGENCE press ENTER to display the convergence selection menu. CONFIGURATION Every LCD panel has 6 adjustment screws. By turning these screws INTERNAL PATTERNS you change the relative position of the panels and converge the image.
  • Page 91 Installation To adjust the convergence, there are test patterns provided in the convergence menu. CONVERGENCE GREEN Use the control disk to hightlight Convergence and press ENTER to BLUE ON GREEN display the Convergence menu. RED ON GREEN HATCH Start with the Green test pattern and continue with the Red on green and finish with the Blue on green.
  • Page 92 Installation The three alignments influence each other, therefore repeat if neces- sary the above three steps (b,c and d). When the green pattern is correctly focused, press EXIT to return to the Convergence menu. Red on green convergence. CONVERGENCE Use the control disk to hightlight Red on green and press ENTER to display the Red on green test pattern.
  • Page 93 Installation If both lines are correctly converged, continue with screw 4. Adjust screw 4 until line 4 is correctly converged. It is possible that line 2 and 3 have to be reconverged. If so, repeat procedure for screw 2 and 3 (step b and c) If line 2, 3 and 4 are converged, continue with line 1 (screw 1).
  • Page 94 Installation Blue on green convergence. CONVERGENCE Use the control disk to highlight Blue on green and press ENTER to GREEN display the Blue on green test pattern. BLUE ON GREEN RED ON GREEN HATCH Repeat the same procedure as for Red on green lines but read blue when red is indicated.

  • Page 95: Configuration

    Installation Configuration INSTALLATION Highlight "Configuration" by pushing the control disk up or down and INPUT SLOTS press ENTER to select. CONVERGENCE CONFIGURATION INTERNAL PATTERNS For more information, see Projector configuration in chapter Installa- tion Set Up. Select with then <ENTER> <EXIT>...

  • Page 96: Service Mode

    Service Mode SERVICE MODE Identification Change Password Change Language Change Projector Address Change Baudrate PC Reset Lamp Run Time Lamp Run Time History Panel Adjustments Preset Color Balance I²C Diagnosis 13-1 5975288 BARCOGRAPHICS 8200 110497...

  • Page 97: Starting Up The Service Mode

    Service Mode Starting up the Service Mode ADJUSTMENT MODE Push the control disk up or down to highlight Service and then press Select a path from below : ENTER . GUIDED RANDOM ACCESS Some items in the Service mode are password protected (when the INSTALLATION SERVICE password function is active).
  • Page 98 Service Mode SERVICE BARCO CHANGE PASSWORD CHANGE LANGUAGE GRAPHICS 8200 IDENTIFICATION Enter new password ENGLISH CHANGE PASSWORD Proj. address : 001 0000 CHANGE LANGUAGE Soft. version : 3.0 CHANGE PROJ. ADDRESS Config : front/ CHANGE BAUDRATE PC ceiling RESET LAMP RUNTIME...
  • Page 99 Service Mode SERVICE PANEL ADJUSTMENT PRESET INPUT BALANCE RED COARSE IDENTIFICATION WHITE BALANCE CHANGE PASSWORD FIELD FLICKER CHANGE LANGUAGE BLACK LEVEL TOP CHANGE PROJ. ADDRESS BLACK LEVEL BOTTOM CHANGE BAUDRATE PC GAIN TOP RESET LAMP RUNTIME GAIN BOTTOM Select with <ENTER> <EXIT>...

  • Page 100: Identification

    Service Mode Identification To display the Identification sreen, push the control disk up or down to highlight SERVICE Identification and press ENTER to display the Identification screen. IDENTIFICATION CHANGE PASSWORD The Identification screen gives an overview of : CHANGE LANGUAGE CHANGE PROJ.
  • Page 101 Service Mode - Baud rate : transfer speed for communication with a IBM PC (or - Projector Run Time : gives the total run time since the first start up. compatible) or MAC. The baud rate of the projector must be the same All projectors leave the factory with a run time of approximately 24 as the baud rate of the connected computer.

  • Page 102: Change Password

    Service Mode Change Password Loosen the locking This item is password protected when the password strap is installed. screws. How to enable or disable the password function ? The password function is enabled when the password strap on the Th is de vic e com pli es wi th Pa rt 15 of th e F CC ru les . Op era ti on is su bje ct to fo llo win g two co nd iti ons : (1 ) Th is de vi ce m ay no t ca us e h ar mf ul i nte rf er en ce D I A G N O S TI C S...
  • Page 103 Service Mode When the strap is on leg 2-3 or no strap is mounted, the password function is enabled, when the strap is on leg 1-2, the password function is disabled. Password enabled Password disabled strap on leg 1-2 strap on leg 2-3 13-8 5975288 BARCOGRAPHICS 8200 110497...

  • Page 104: How To Change The Password

    Service Mode How to change the password ? SERVICE IDENTIFICATION Highlight Change password by pushing the control disk up or down CHANGE PASSWORD and press ENTER to display the Change Password menu. CHANGE LANGUAGE CHANGE PROJ. ADDRESS CHANGE BAUDRATE PC RESET LAMP RUNTIME LAMP RUNTINE HISTORY ENTER displays the Change Password menu...

  • Page 105: Change Projector Address

    Service Mode Change Projector Address SERVICE IDENTIFICATION Every projector requires an individual address between 0 and 255. CHANGE PASSWORD CHANGE LANGUAGE This address can be software installed. CHANGE PROJ. ADDRESS To change that address, push the control disk up or down to highlight CHANGE BAUDRATE PC RESET LAMP RUNTIME Change Proj.

  • Page 106: Reset Lamp Runtime

    Service Mode The following baud rates are available : - 9600 CHANGE BAUDRATE PC - 4800 9600 - 2400 4800 2400 - 1200 1200 - 600 - 300 - 150 Select with - 75 <ENTER> to accept The actual baud rate will be highlighted. To change the baud rate, <EXIT>...

  • Page 107: Lamp Run Time History

    Service Mode Lamp Run Time History To get an overview of the different lamp run times, highlight Lamp SERVICE Run Time History by pushing the control disk up or down and press IDENTIFICATION ENTER . CHANGE PASSWORD CHANGE LANGUAGE A listing with the lamp serial number and the corresponding run time CHANGE PROJ.

  • Page 108: Panel Adjustments

    Service Mode Panel Adjustments SERVICE PANEL ADJUSTMENTS Changing these settings may seriously affect the performance PRESET INPUT BALANCE of the projector. 60Hz TRACKING I2C DIAGNOSIS All panel adjustments are factory adjusted. If not really necessary, do MORE... not touch one of these adjustments. They are useful when a new panel is installed.

  • Page 109: Preset Input Balance

    Service Mode Preset Input Balance SERVICE PANEL ADJUSTMENTS Highlight White Balance by pushing the control disk up or down and PRESET INPUT BALANCE press ENTER to select. 60Hz TRACKING I2C DIAGNOSIS With the white balance adjustment, the gain of the red and blue MORE...

  • Page 110: 60 Hz Tracking

    Service Mode 60 Hz Tracking 60 Hz tracking is used to adjust the 60 Hz by sychronious signals SERVICE Highlight 60 Hz Tracking by pushing the control disk up or down and PANEL ADJUSTMENTS PRESET INPUT BALANCE press ENTER. 60Hz TRACKING I2C DIAGNOSIS When 60 Hz Tracking is selected in the Service Mode selection MORE...

  • Page 111: I2C Diagnosis

    Service Mode I2C diagnosis. Give an overview of the correct working of the I²C controlled IC's. SERVICE Highlight I2C diagnosis by pushing the control disk up or down and IDENTIFICATION press ENTER to display the overview. CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ.

  • Page 112: Optional Equipment

    Optional Equipment OPTIONAL EQUIPMENT IR remote receiver Hardwired RCU RCVDS05 VS05 MAGIK interface Adapter and communication cables Ceiling mount kit CM100 Transport handle Frame for dual or triple projection Multifunctional flightcase Mechanical shutter Adjustable lensholder 14-1 5975288 BARCOGRAPHICS 8200 110497...

  • Page 113: Ir Receiver 800

    Optional Equipment IR Receiver 800 C o mmu n ic atio n ca b le IR Re mo te Re c eiv e r 8 0 0 This infra red receiver unit makes it possible to control the BARCOGRAPHICS 8200 from another room. B A RCOGRA P HICS 8 1 0 0 S c r e e n There is a communication line with cable between the...

  • Page 114: Rcvds 05

    BARCO's digitally controlled large screen projectors. It offers the possibility to connect and switch up to 5 different Video sources, 3 different S-Video sources and 1 RGB Analog source to a BARCO projector. In addition, the audio signal proper to the source, can be switched to an audio amplifier.

  • Page 115: Magik Interface

    Optional Equipment MAGIK Interface Multifuctional Analog Graphics Interface Kit. BARCO's MAGIK interface allows the user to connect a presentation device such as a projector or a professional monitor to any computer with analog video signal with or without maintaining the connection with its own display.

  • Page 116: Ceiling Mount Kit Cm100

    Optional Equipment number R9827640; and 30 m (100ft), order number R9827570 b. Din Mini8-D9 adapter cable. - To connect a Macintosh computer to the BARCOGRAPHICS 8200. (only if the optional RS232 port is installed.) Available length : 1 m, order number R9827640. c.

  • Page 117: Projector Transport Handle

    Optional Equipment Projector Transport Handle 0 .7 2 m 1 . 1 5 m Order number : R9829170 Projector Frame for Dual or Triple Configurations The frame is designed for use in table as well as ceiling mount configurations. The projector can be easily locked in the solid black frame via three bolts.

  • Page 118: Multifunctional Flight Case

    Optional Equipment Multifunctional flight case BARCO's multifunctional flight case is a special designed flight case for temporary installations of a BARCOGRAPHICS 8200 projector. Due to the advanced mechanical design of the flight case and the built-in mirror, it is possible to install the projector in a horizontal as well as in a vertical position - in ceiling mount or table configuration - without removing the projector out of the flight case.

  • Page 119: Mechanical Shutter

    - Reaction time less than 0.5 seconds. Order number : R9829270 Adjustable lensholder With BARCO's special adjustable lensholder, it is possible to shift the - Makes it possible to project a geometric non-distored picture from displayed picture of the BARCOGRAPHICS 8200 projector up or a non-standard projection position.

  • Page 120: Appendix A : Standard Source Set Up Files

    Appendix A : Standard Source Set Up Files Standard source set up files. Standard preprogrammed set up files NAME RESOLUTION FVERT FHOR FPIX PTOT PACT LTOT LACT Name : name of file, contains the settings 640 X 200 59,924 15,700 14,318 912 Resolution : image resolution, when fol- lowed by ...I means interlaced.
  • Page 121 Appendix A : Standard Source Set Up Files NAME RESOLUTION FVERT FHOR FPIX PTOT PACT LTOT LACT MAC_4 560 X 384 60,147 24,480 17,234 704 8514-A 1024 X 384I 43,479 35,522 44,900 1264 1024 VGA_TXT 720 X 400 70,087 31,469 28,322 900 COMPUSC4 1024 X 480I 29,945 30,694 39,779 1296 1024...
  • Page 122 Appendix A : Standard Source Set Up Files NAME RESOLUTION FVERT FHOR FPIX PTOT PACT LTOT LACT XGA_75 1024 X 768 75,781 61,080 86,000 1408 1024 XGA75_GS 1024 X 768 74,534 59,701 79,284 1328 1024 XGA_72 1024 X 768 71,955 58,140 80,000 1376 1024 SUP_MAC 1024 X 768...
  • Page 123 Appendix A : Standard Source Set Up Files NAME RESOLUTION FVERT FHOR FPIX PTOT PACT LTOT LACT PC98_1 640 X 400 56,416 24,823 21,050 848 PC98_2 1120 X 375I 79,987 32,835 47,840 1457 1120 PC98_3 1120 X 750 60,000 50,000 78,569 1571 1120 MAC_6 832 X 624...

  • Page 124: Appendix B : Battery Replacement In The Rcu

    Appendix B : Battery Replacement in the RCU Battery replacement in the RCU. Remove the battery cover on he backside of the remote control by pushing the indicated handle a little to the bottom of the RCU. Lift up the top side of the cover at the same time. (fig.

  • Page 125: Appendix C : Focusing The Lens

    Appendix C : Focusing the Lens Focusing the lens Loosen the fastener ring of the lens by turning counter clockwise. Focus the image by turning the lens barrel to the left or the right. Attention : Do not turn out the lens too far, otherwise it will fall out of the lens holder. When the image is focused, secure the correct position of the lens with the fastener ring by turning this ring clockwise.

  • Page 126: Appendix D : Lens Cleaning Procedure

    Appendix D : Lens Cleaning Procedure Lens Cleaning Procedure Cleaning procedure for the other HD lens Cleaning procedure for HD(1.5-3:1) lens and HD(3-5.3:1) lens. To minimize the possibility of damaging the optical coating or scratch- To minimize the possibility of damaging the optical coating or scratch- ing exposed lens surfaces, we have developed recommendations for ing exposed lens surface, we have developed recommendations for cleaning lenses.
  • Page 127 Appendix D : Lens Cleaning Procedure the lens. Wipe at a speed that is equal to the evaporation rate. This is very important to prevent streaking and spotting. Start your wiping at one side of the lens and, with successive wipes, move to the other side.
  • Page 128 Appendix E : Source Number 90 - 99 Source numbers 90 - 99 These source numbers do not correspond to physical inputs. They can only be used when the projector is equipped with a RCVDS 05 or VS05. An additional adjustment file can be created for these source numbers.

  • Page 129: Appendix F : Lenses

    Appendix F : Lenses Lenses This APPENDIX gives an overview of the tables and formulas for the available lenses for the BARCOGRAPHICS 8200. The next lenses are available : Name length lens diam. lens weight order number mm (inch) mm (inch) kg (lbs) HD(1.2:1) 253 (9.96)
  • Page 130 Appendix F : Lenses Lens formulas to calculate the projector distance. HD(1.2:1) Metric PD=1.264 x SW + 0.126 + (0.018/SW) Inch PD= 1.264 x SW + 4.961 + (27.90/SW) HD(2.2:1) Metric PD=2.0566 x SW + 0.16 + (0.029/SW) Inch PD=2.0566 x SW + 6.299 + (44.95/SW) HD(3.3:1) Metric PD=3.33 x SW + 0.386 + (0.046/SW) Inch...
  • Page 131 Insert card RCU R C U R C U INPUT S O URCES INPUT S O URCES PR O J EC TO R PR O J EC TO R INPUT S O URCES INPUT S O URCES R C V D S R C V D S 5975288 BARCOGRAPHICS 8200 110497...

This manual is also suitable for:

Graphics 8200

Table of Contents
