114, 115, and 117
Users Manual

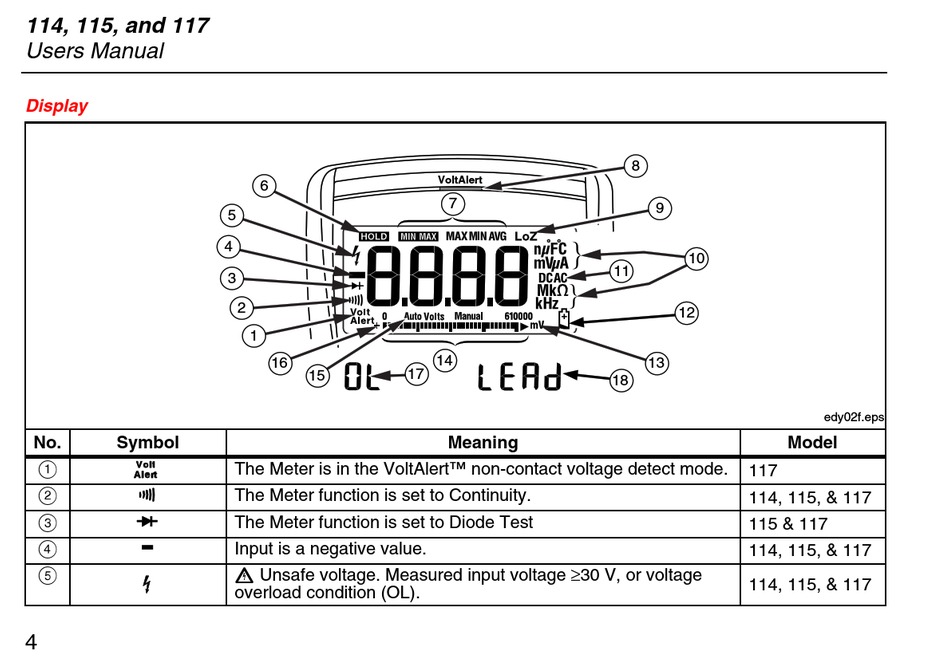

Display

No.
Symbol
A
w
B
s
C
R
D
O
E
Y
4
6
5
4
3
2
1
16
15
The Meter is in the VoltAlert™ non-contact voltage detect mode.
The Meter function is set to Continuity.
The Meter function is set to Diode Test
Input is a negative value.
X Unsafe voltage. Measured input voltage 30 V, or voltage
overload condition (OL).
VoltAlert
7
14
17
Meaning
8
9
10
11
12
13
18
Model
117
114, 115, & 117
115 & 117
114, 115, & 117
114, 115, & 117
edy02f.eps
