- Page 1 Audio KVM Extender CE-300 User Manual www.aten.com...
-
Page 2: Fcc Information
CE-300 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
CE-300 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America ATEN TECH http://www.aten-usa.com/product_registration ATEN NJ http://support.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 North America... -
Page 4: Package Contents
© Copyright 2008 ATEN® International Co., Ltd. Manual Part No. PAPE-0256-200G Printing Date: 03/2008 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
CE-300 User Manual Contents FCC Information ..........ii RoHS. - Page 6 CE-300 User Manual 5. Appendix Safety Instructions ......... . 19 General .
-
Page 7: About This Manual
CE-300 User Manual About this Manual This User Manual is provided to help you get the most from your CE-300 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers International – http://www.aten.com North America –... -
Page 9: Introduction

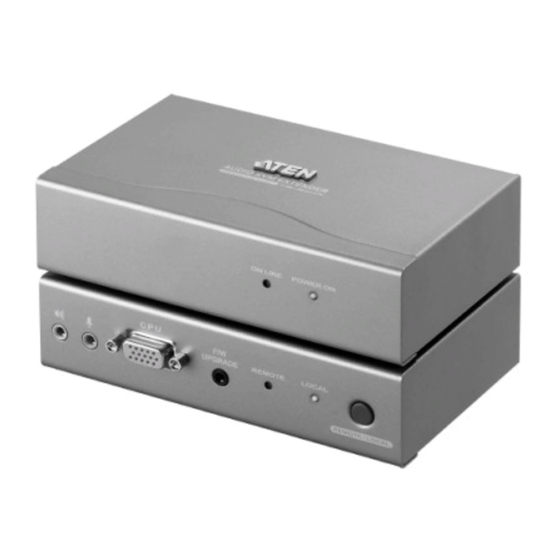

Chapter 1 Introduction Overview The CE-300 KVM Extender with onboard audio allows access to a computer system from a remote console (keyboard, monitor, stereo speakers, microphone and mouse). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place –... -
Page 10: Features
CE-300 User Manual Features Built-in ASIC for greater reliability and compatibility Cat 5 Ethernet cable to connect the local and remote units – up to 100 m apart Dual console operation – control your system from both the local and... -
Page 11: System Requirements
1. Introduction System Requirements Consoles A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation A PS/2 keyboard A PS/2 mouse Stereo microphone and stereo speakers (optional) Note: If you connect a DDC type monitor to the Local unit, the monitor that connects to the Remote unit must be able to support the highest video resolution that the DDC monitor can provide. -
Page 12: Operating Systems
CE-300 User Manual Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 3.5.1 and higher... -
Page 13: Components
1. Introduction Components CE-300L (Local Unit) Front View Component Description KVM Port Section This section is made up of a microphone jack, speaker jack and KVM (keyboard, video, mouse), data connector. The cable that links the CE-300L to your local KVM console plugs in here. -
Page 14: Ce-300R (Remote Unit) Front View
CE-300 User Manual CE-300R (Remote Unit) Front View Component Description On Line / Power On These LEDs indicate the operating status of the Local and LEDs Remote units (see page 12 for details). -
Page 15: Ce-300L / Ce-300R Rear View
1. Introduction CE-300L / CE-300R Rear View Component Description Power Jack The cable from the AC Power Adapter plugs into this jack. Remote I/O The Category 5 twisted pair cable that connects the Remote and Local units plugs into this connector. Console Audio The stereo microphone and stereo speaker plugs of the Jacks... - Page 16 CE-300 User Manual This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 19. Please review it before proceed- ing. 2. Make sure that power to all the devices you will be installing has been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. - Page 18 CE-300 User Manual 6. Connect one of the power adapters provided with this package into an AC source; connect the adapter's power cable to the Power Jack on the CE-300L. 7. Connect the other power adapter provided with this package into an AC source;...
-
Page 19: Operation
Chapter 3 Operation The CE-300 Local and Remote Units each have two LEDs to indicate their operating status, as shown in the tables below: CE-300L (Local Unit) Operating Mode Local Auto Remote Local Lights to The LED is Of Lights when the local console is indicate that the active (the Remote LED is off). -
Page 20: Ce-300R (Remote Unit)
CE-300 User Manual CE-300R (Remote Unit) Indication Power Lights steadily to indicate that the connection to the Local Unit is Flashes when there is a problem with the connection to the Local Unit. On Line Lights when the remote console is active. -
Page 21: The Firmware Upgrade Utility
New firmware upgrade packages are posted on our web site as new firmware revisions become available. Check the web site regularly to find the latest packages and information relating to them: http://www.aten.com Before You Begin To prepare for the firmware upgrade, do the following: 1. - Page 22 CE-300 User Manual 5. Make sure both units are connected by the Cat 5 cable, then turn on the power to the Remote unit. 6. Press and hold the the Local Unit’s Selection button, then turn on the power to the Local unit.
-
Page 23: Starting The Upgrade
4. The Firmware Upgrade Utility Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file – either by double clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility Welcome screen appears: Note: The screens shown in this section are for reference only. - Page 24 CE-300 User Manual 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel. 4. As you select a device in the list, its description appears in the Device Description panel.
-
Page 25: Upgrade Succeeded
4. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. After successfully upgrading the firmware, the switches automatically exit Firmware Upgrade Mode. - Page 26 CE-300 User Manual This Page Intentionally Left Blank...
-
Page 27: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 28 CE-300 User Manual Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock. Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
-
Page 29: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 30: Technical Support
CE-300 User Manual Technical Support Technical support is available both by email and online (with a browser over the web): International Email Support support@aten.com Online Technical Support http://support.aten.com Support Troubleshooting http://www.aten.com Documentation Software Updates Telephone Support 886-2-8692-6959 North America Email Support ATEN TECH support@aten-usa.com... -
Page 31: Specifications
Appendix Specifications Function CE-300L CE-300R Computer Connections 1 x 6-pin Mini-DIN Female (Purple) Connectors Console 1 x HDB-15 Female (Blue) Video Mouse 1 x 6-pin Mini-DIN Female (Green) Speaker 1 x Mini Stereo Jack (Green) Microphone 1 x Mini Stereo Jack (Pink) KVM Port Keyboard 1 x SPHD-15 Female (Yellow) -
Page 32: Tp Wiring Diagram
CE-300 User Manual TP Wiring Diagram PAIR 3 PAIR 2 PAIR 1 PAIR 4 1 2 3 4 5 6 W-O O W-G Bl W-Bl G W-Br Br JACK POSITIONS T568B AT&T 258A TP Pin Assignments Assignment /V OUT B... -
Page 33: About Sphd Connectors
Appendix About SPHD Connectors This product uses SPHD connectors for its KVM and/or Console ports. We have specifically modified the shape of these connectors so that only KVM cables that we have designed to work with this product can be connected. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR...
