ATEN CE620 User Manual

ATEN CE620 User Manual

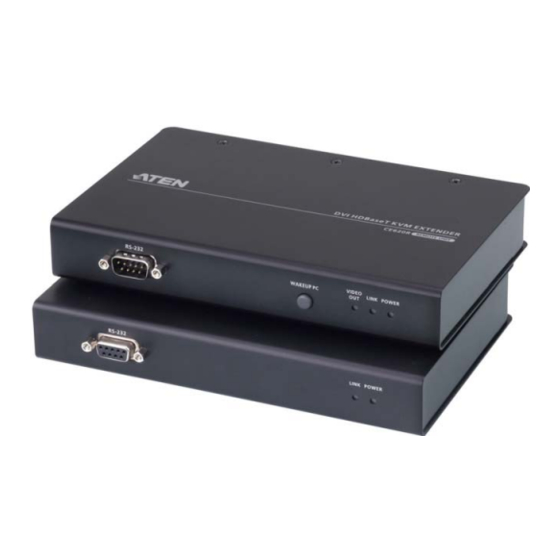

Usb dvi hdbaset 2.0 kvm extender

Advertisement

Quick Links

USB DVI HDBaseT 2.0 KVM Extender
CE620
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN CE620

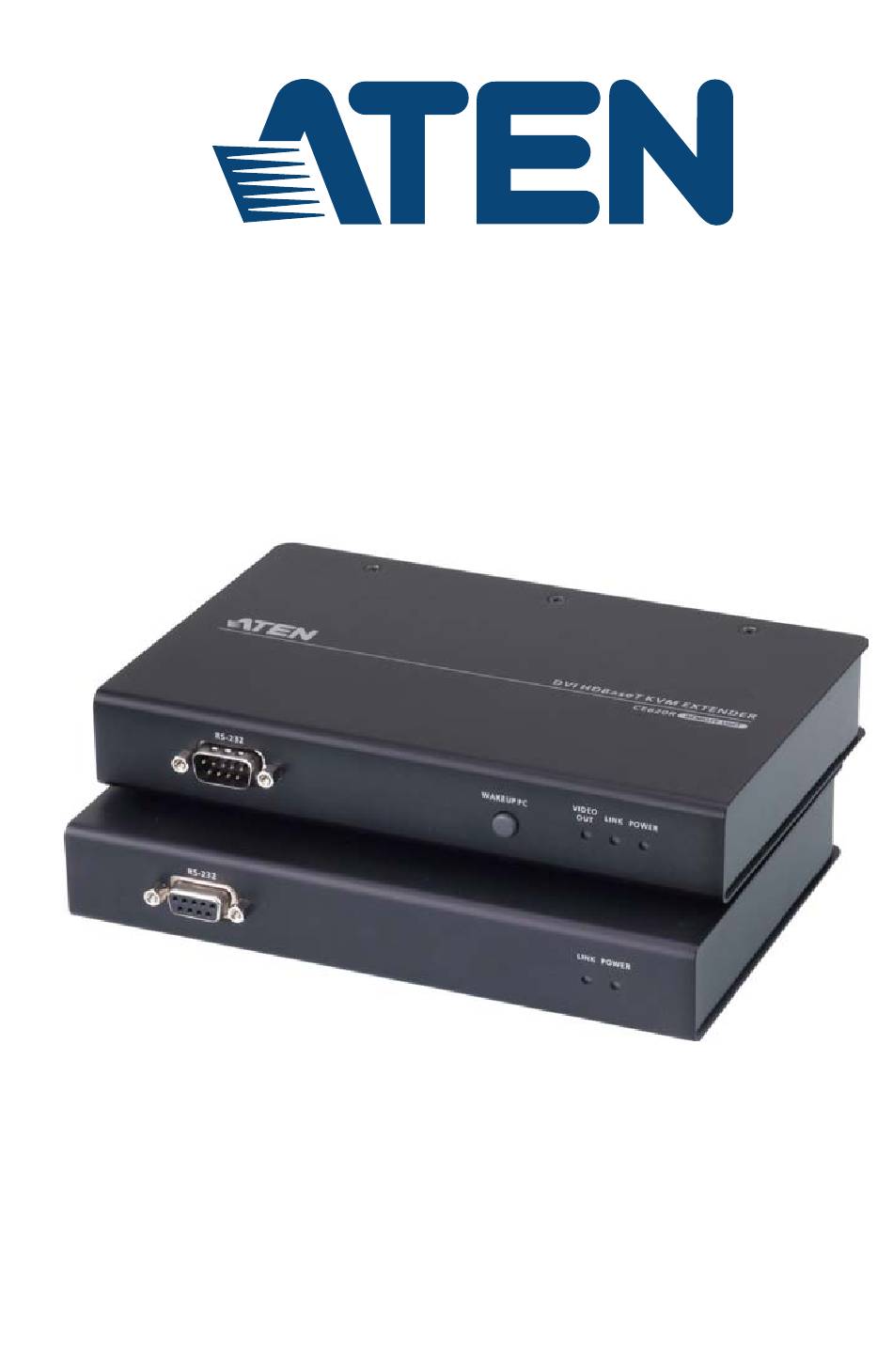

  • Page 1 USB DVI HDBaseT 2.0 KVM Extender CE620 User Manual www.aten.com...
  • Page 2: Emc Information

    CE620 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: User Information

    CE620 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    © Copyright 2019 ATEN® International Co., Ltd. Manual Date: 2019-05-14 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
  • Page 5: Table Of Contents

    CE620 User Manual Contents EMC Information ..........ii RoHS.
  • Page 6 CE620 User Manual North America ......... . 18 Specifications .
  • Page 7: About This Manual

    An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE620 system. Its purpose, features and benefits are presented, and its front and back panel components are described.
  • Page 8: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 9: Introduction

    Because it allows access to a computer system from a remote console, the CE620 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location –...
  • Page 10: Features

     Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)  Supports PC wakeup function via pushbutton or hotkey  Easy Installation Rack Mounting Kit  Firmware upgradeable *Note: The CE620 supports a maximum combined USB transfer rate of 30 Mbps for attached USB devices.
  • Page 11: Requirements

    DVI Cable that is provided with this package. For more information about using the correct Cat 5e/6 cable and setting up HDBaseT devices, you can download the ATEN HDBaseT Installation Guide: http://assets.aten.com/resource/epublication/ATEN_HDBaseT_InstallationGuide.pdf Maximum Cable Distances...
  • Page 12: Components

    These 2-segment switches allow you to put the unit in Long Reach / Normal Firmware Upgrade*, Long Reach and Normal mode. Switch Note: The firmware upgrade mode is reserved for technical support. To upgrade the device’s firmware, please contact ATEN customer support.
  • Page 13: Ce620R (Remote Unit) Front And Rear View

    Chapter 1. Introduction CE620R (Remote Unit) Front and Rear View Front View Rear View Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal for configuration. Wakeup PC Press this button if you are at the remote console’s Pushbutton location and you want to wake the computer on the local side.
  • Page 14 These 2-segment switches allow you to put the unit in Long Reach / Normal Firmware Upgrade*, Long Reach, and Normal mode. Switch Note: The firmware upgrade mode is reserved for technical support. To upgrade the device’s firmware, please contact ATEN customer support.
  • Page 15: Hardware Setup

    Stacking and Rack Mounting Stacking The CE620 can be placed on any appropriate level surface that can safely support its weight plus the weight of its attached cables. To place or stack the CE620, remove the backing material from the bottom of the rubber feet that...
  • Page 16: Rack Mounting

    CE620 User Manual Rack Mounting For convenience and flexibility, the CE620 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the top or bottom of the unit as show in the diagram below:...
  • Page 17: Installation

    Chapter 2. Hardware Setup Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.
  • Page 18: Setting Up

    CE620R. 12. To extend video, RS-232 and USB signals up to 150 m with a resolution of 1080p, on the rear of both CE620 units set the Long Reach switch to ON (see page 13 for more information).
  • Page 19: Installation Diagram

    Chapter 2. Hardware Setup Installation Diagram CE620L Rear View CE620L Front View RS-232 Local PC KVM Cable Set Cat 5e cable CE620R Front View CE620R Rear View...
  • Page 20 CE620 User Manual This Page Intentionally Left Blank...
  • Page 21: Operation

    The Operation chapter describes how the LED display lights work and how to use HDBaseT Long Reach Mode. LED Display The CE620 local and remote Units have front panel LEDs to indicate their operating status, as shown in the tables, following: Indication...
  • Page 22 CE620 User Manual This Page Intentionally Left Blank...
  • Page 23: Appendix

    Appendix Safety Instructions General  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  This product is for indoor use only.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 24 CE620 User Manual  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 25: Mounting

    Appendix Mounting  Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
  • Page 26: Technical Support

    CE620 User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com  For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates...
  • Page 27: Specifications

    Appendix Specifications Function CE620L CE620R Connectors DVI In 1 x DVI-D Female (White) DVI Out 1 x DVI-D Female (White) 1 x USB Type B Female 3 x USB Type A Female (White) (White) Power 1 x DC Jack Speakers 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) Unit to Unit...
  • Page 28: Limited Warranty

    ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
