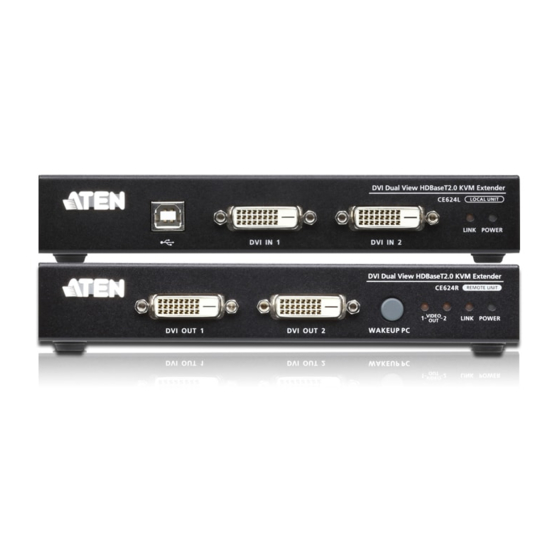

- Page 1 USB DVI Dual View HDBaseT 2.0 KVM Extender CE624 User Manual www.aten.com...
-
Page 2: Emc Information
CE624 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
CE624 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2017 ATEN® International Co., Ltd. Manual Date: 2017-07-21 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
CE624 User Manual Contents EMC Information ..........ii RoHS. - Page 6 CE624 User Manual North America ......... . . 16 Specifications .
-
Page 7: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE624 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1 Introduction
Introduction Overview The CE624 USB DVI Dual View HDBaseT 2.0 KVM Extender is a Dual DVI and USB Extender with HDBaseT™ technology. The CE624 can extend two DVI displays and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable. -
Page 10: Features
Supports PC wakeup function via pushbutton Plug-and-play – no software installation required Easy Installation Rack Mounting Kit Firmware upgradeable *Note: The CE624 supports a maximum combined USB transfer rate of 30 Mbps for attached USB devices. -
Page 11: Requirements
For better quality over longer distances, we suggest using an HDBaseT certified cable for the unit to unit connection. For more information on setting up HDBaseT devices, you can download the ATEN HDBaseT Installation Guide: http://assets.aten.com/resource/epublication/ATEN_HDBaseT_InstallationGuide.pdf Maximum Cable Distances... -
Page 12: Components
These 2-segment switches allow you to put the unit in Long Reach Switch Firmware Upgrade*, Long Reach and Normal mode. Note: The firmware upgrade mode is reserved for technical support. To upgrade the device’s firmware, please contact ATEN customer support. -
Page 13: Ce624R (Remote Unit) Front And Rear View
Chapter 1. Introduction CE624R (Remote Unit) Front and Rear View Front View Rear View Component Description DVI-D Output Ports Connect a DVI monitor to each of these DVI ports. Wakeup PC Press this button if you are at the remote console’s Pushbutton location and you want to wake the computer on the local side. - Page 14 These 2-segment switches allow you to put the unit in Long Reach Switch Firmware Upgrade*, Long Reach and Normal mode. Note: The firmware upgrade mode is reserved for technical support. To upgrade the device’s firmware, please contact ATEN customer support.
-
Page 15: Chapter 2. Hardware Setup
Stacking and Rack Mounting Stacking The CE624 can be placed on any appropriate level surface that can safely support its weight plus the weight of its attached cables. To place or stack the CE624, remove the backing material from the bottom of the rubber feet that... -
Page 16: Rack Mounting
CE624 User Manual Rack Mounting For convenience and flexibility, the CE624 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Mounting Kit, screw the mounting bracket to the bottom (either end) on unit, as show in the diagram below:... -
Page 17: Installation
Chapter 2. Hardware Setup Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. -
Page 18: Setting Up
11. Connect a Hardware/Software Controller to the RS-232 Serial port on the remote unit. 12. To extend video, RS-232 and USB signals up to 150 m with a resolution of 1080p, on the rear of both CE624 units set the Long Reach switch to ON (see page 12 for more information). -
Page 19: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram CE624L Front View Audio cable cables USB cable CE624L Rear View Cat 5e/6 cable CE624R Rear View CE624R Front View... -
Page 20: Chapter 3. Operation
The Operation chapter describes how the LED display lights work and how to use HDBaseT Long Reach Mode. LED Display The CE624 Local and Remote Units have front panel LEDs to indicate their operating status, as shown in the tables, following: Indication Power Lights (Green) steadily to indicate that the unit is receiving power. -
Page 21: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 22 CE624 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 23: Mounting
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 24: Technical Support
CE624 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://eservice.aten.com Technical Documentation Support Software Updates... -
Page 25: Specifications
Appendix Specifications Function CE624L CE624R Connectors DVI In 2 x DVI-D Female (Black) DVI Out 2 x DVI-D Female (Black) 1 x USB Type B Female 3 x USB Type A Female (White) (White) Power 1 x DC Jack Speakers 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) Unit to Unit... -
Page 26: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
