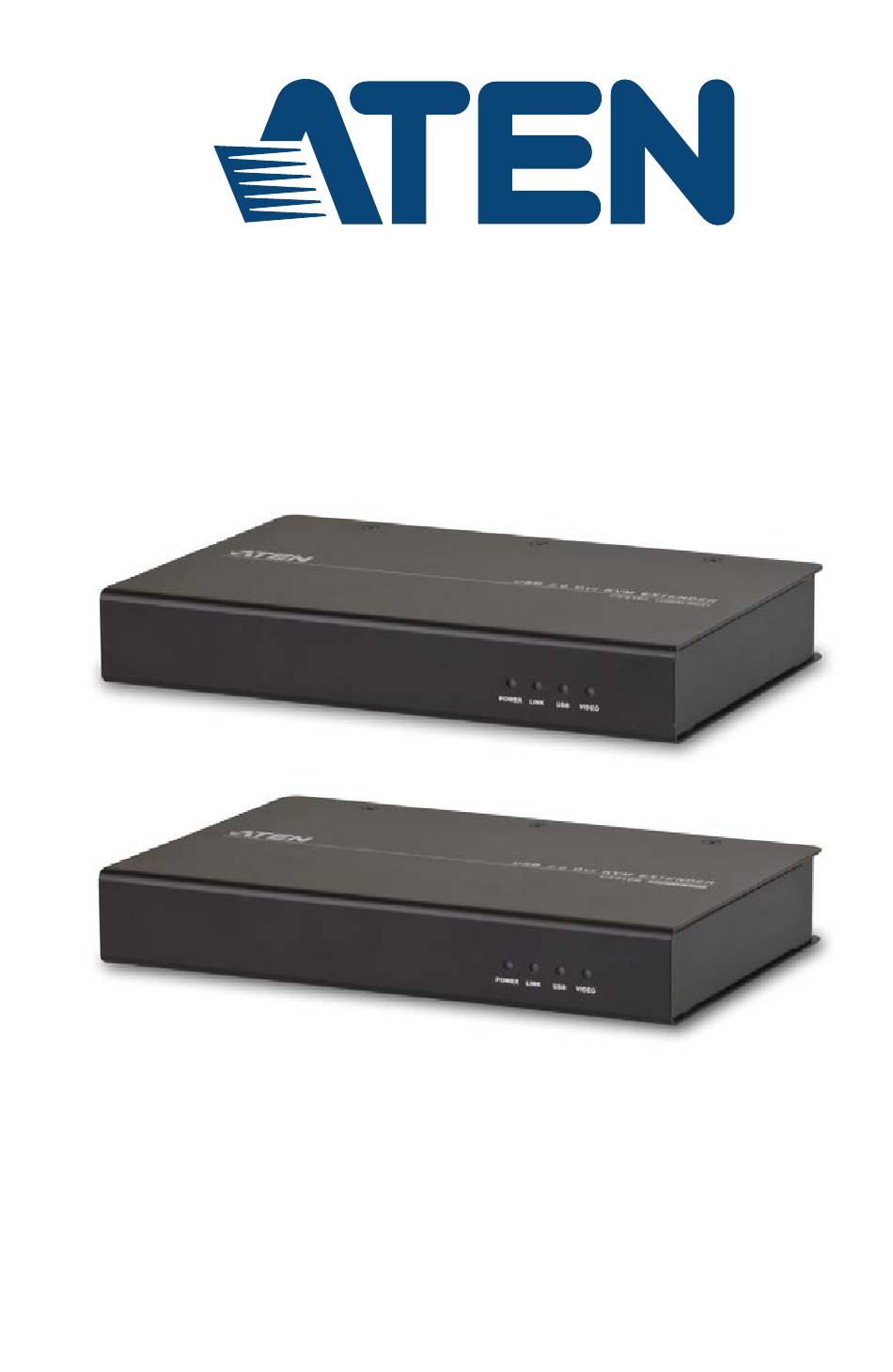

- Page 1 DVI HDBaseT KVM Extender with ExtremeUSB® CE610A User Manual www.aten.com...
-
Page 2: Emc Information
CE610A User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Sj/T 11364-2006
CE610A User Manual SJ/T 11364-2006 The following contains information that relates to China. -
Page 4: User Information
CE610A User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 5: Package Contents
© Copyright 2017 ATEN® International Co., Ltd. Manual Date: 2017-03-03 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 6: Table Of Contents
CE610A User Manual Contents EMC Information..........ii RoHS . - Page 7 CE610A User Manual Specifications ..........18...
-
Page 8: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE610A system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 9: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 10: Chapter 1 Introduction
Because it allows access to a computer system from a remote console, the CE610A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location –... -
Page 11: Features
USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth Works with all major operating systems: Windows®, OS X®, and Linux® *Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices. -
Page 12: Requirements
DVI Cable that is provided with this package. Cat 5e cable is required to connect the Local and Remote CE610A Units. Cable of a lower standard will result in degrading of the video signal. We strongly recommend using Cat 5e cables. -
Page 13: Operating Systems
10 / 11.1 and higher Debian 3.1 / 4.0 Ubuntu 7.04 / 7.10 UNIX FreeBSD 5.5 / 6.1 / 6.2 Novell Netware 6.0 and higher OS 10.1 and higher Note: The CE610A does not support OS that do not support USB. -
Page 14: Components
The Firmware Upgrade Port is reserved for technical Port support. If you would like to upgrade the unit’s firmware yourself, please contact your ATEN dealer. Unit to Unit Port The Cat 5e cable that connects the Local and Remote Units plugs in here. -
Page 15: Ce610Ar (Remote Unit) Front And Rear View
The Firmware Upgrade Port is reserved for technical Port support. If you would like to upgrade the unit’s firmware yourself, please contact your ATEN dealer. Unit to Unit Port The Cat 5e cable that connects the Local and Remote Units plugs in here. -
Page 16: Chapter 2. Hardware Setup
Keyboard Power On function. Rack Mounting For convenience and flexibility, the CE610A can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Mounting Kit, screw the mounting... - Page 17 Chapter 2. Hardware Setup 2. Screw the bracket into any convenient location on the rack. Note: These screws are not provided. We recommend that you use M5 x 12 Phillips Type I cross, recessed type screws.
-
Page 18: Installation
CE610A User Manual Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. - Page 19 Chapter 2. Hardware Setup 3. For increased grounding protection, use STP (shielded twisted pair) cable to connect the Local and Remote Units. There are two methods that can be used: a) In addition to the eight paired wires, STP cable also contains a grounding wire.
-
Page 20: Setting Up
DVI port on the local computer. 3. Plug either end of the Cat 5e cable into the CE610A's Unit to Unit R-J45 port. Plug the other end of the Cat 5e cable into the Unit to Unit RJ-45 port of the Remote Unit (CE610AR). -
Page 21: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram CE610AL Rear View Local PC cable USB cable Cat 5e cable CE610AR Rear View... -
Page 22: Chapter 3 Operation
Chapter 3 Operation LED Display The CE610A Local and Remote Units have front panel LEDs to indicate their operating status, as shown in the tables, following: CE610AL (Local Unit) and CE610AR (Remote Unit) Indication Power (Green) Lights steadily to indicate that the system is receiving power. -
Page 23: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 24 CE610A User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 25: Mounting
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 26: Technical Support
CE610A User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iv North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates... - Page 27 Appendix Specifications Function CE610AL CE610AR Connectors DVI In 1 x DVI-D Female (White) DVI Out 1 x DVI-D Female (White) 1 x USB Type B Female 3 x USB Type A Female (White) (White) Power 1 x DC Jack F/W Upgrade 1 x Mini-USB Unit to Unit 1 x RJ-45 Female (Black)
- Page 28 CE610A User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
