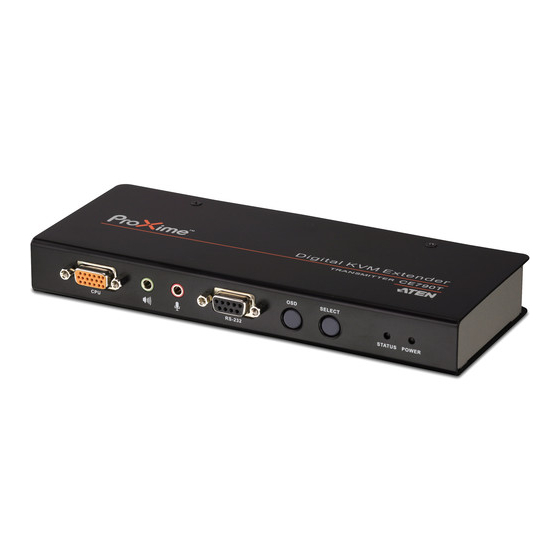

- Page 1 CE790 Digital KVM Extender Graphical User Interface (GUI) User Manual www.aten.com...
-
Page 2: Fcc Information
CE790 GUI User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Before You Begin
CE790 GUI Operation Overview A CE790 installation can be managed via a Graphical User Interface (GUI) on systems that are running Windows. In order to use this management utility, two separate items of software must be installed on all of the PCs in your installation –... -
Page 4: Network Adapters
The CE790 Management Utility is a convenient and intuitive method to manage your complete CE790 installation from one screen. To invoke the GUI, simply click on the CE790 icon in your file system. The main page appears: The various elements of the GUI are described in the following sections. - Page 5 CE790 GUI User Manual Connections The Connections section displays the connections between the CE790T Transmitters and CE790R Receivers in the installation. It also displays basic configuration information for each unit – topology (Unicast or Multicast – Transmitters only); IP address; and Mac address.
- Page 6 The Available Receivers section displays the CE790R Receivers that are currently attached to the installation and are available for connection. Select a CE790R Receiver in this list to view detailed information in the CE790 Configuration section. See CE790 Configuration, page 7.
- Page 7 CE790 GUI User Manual CE790 Configuration The CE790 Configuration section displays details about the Transmitter or Receiver units that have been selected, and allows you to change the configuration information of the selected unit. Name – Each unit can be given a name (15 characters or less, upper case only) IP Address –...
- Page 8 CE790 GUI User Manual Backup Receivers The Backup Receivers section displays the backup CE790R Receivers for selected CE790T Transmitters, depending on the CE790T’s topology (see page 7). If the selected CE790T is configured as “Unicast,” you can set one CE790R as Backup 1. The CE790T will attempt to connect to this backup CE790R if it loses the connection with its current CE790R for more than five seconds.
