Unlocking The Sfp Module Latch, Wire Bale Type - IBM SAN16B-2 - TotalStorage Express Model Switch User And Service Manual

I O
I O
!
I
Open Bale
O I
O I
!
SFP
Bale

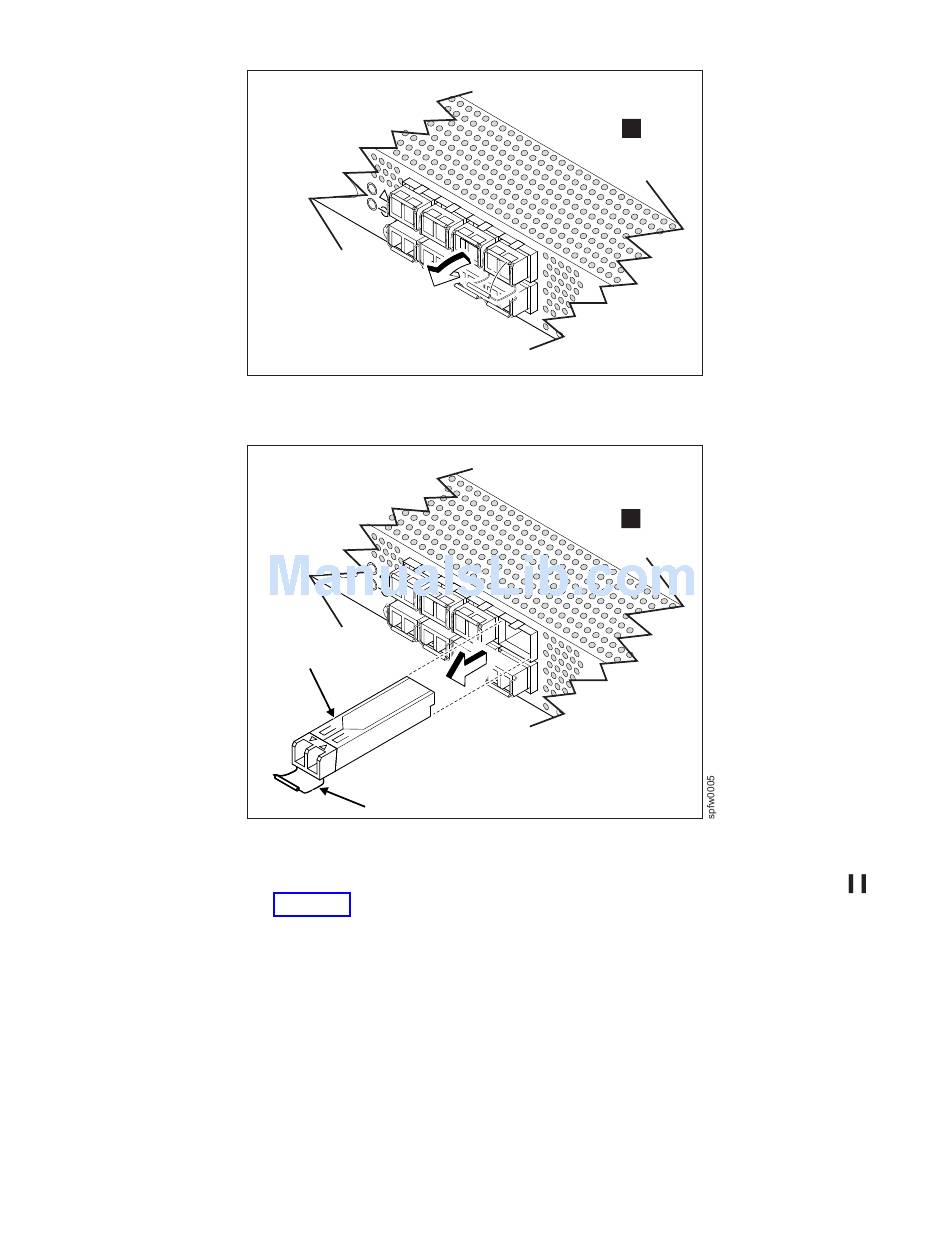

Figure 23. Unlocking the SFP module latch, wire bale type
2. Grasping it by the bale, gently but firmly pull the SFP out of the port (see 2 in
Figure 23).
3. Replace the protective cover on the SFP module.
4. Place the SFP module into a static-protective package.
5. Replace the protective cover on the switch port.
6. Repeat this procedure for any additional SFPs, as required.
1
2
Chapter 4. Monitoring and maintaining the SANB16-2
35
