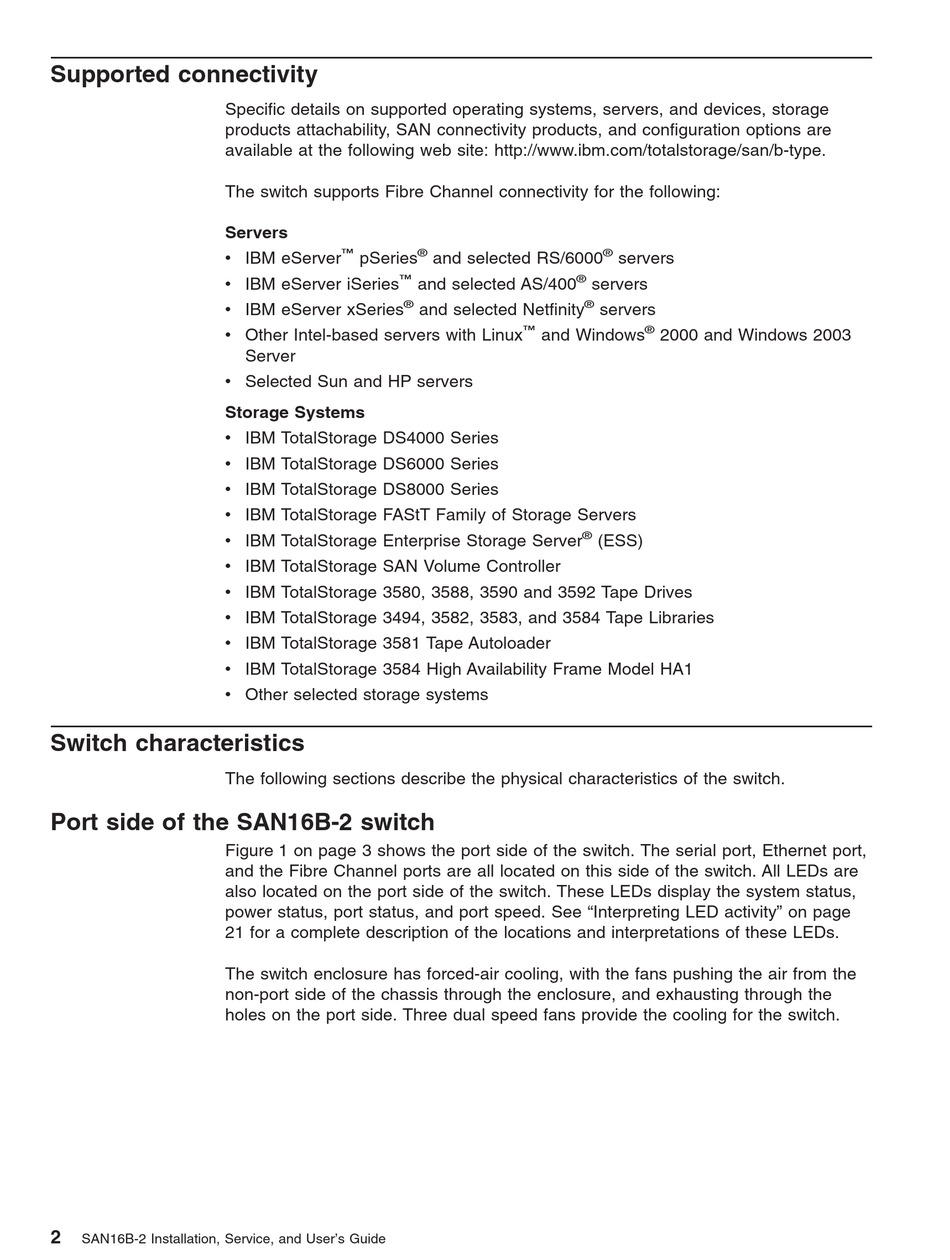

Supported connectivity

Specific details on supported operating systems, servers, and devices, storage
products attachability, SAN connectivity products, and configuration options are
available at the following web site: http://www.ibm.com/totalstorage/san/b-type.
The switch supports Fibre Channel connectivity for the following:
Servers
v IBM eServer
v IBM eServer iSeries
v IBM eServer xSeries
v Other Intel-based servers with Linux
v Selected Sun and HP servers
Storage Systems
v IBM TotalStorage DS4000 Series
v IBM TotalStorage DS6000 Series
v IBM TotalStorage DS8000 Series
v IBM TotalStorage FAStT Family of Storage Servers
v IBM TotalStorage Enterprise Storage Server
v IBM TotalStorage SAN Volume Controller
v IBM TotalStorage 3580, 3588, 3590 and 3592 Tape Drives
v IBM TotalStorage 3494, 3582, 3583, and 3584 Tape Libraries
v IBM TotalStorage 3581 Tape Autoloader
v IBM TotalStorage 3584 High Availability Frame Model HA1
v Other selected storage systems

Switch characteristics

The following sections describe the physical characteristics of the switch.

Port side of the SAN16B-2 switch

Figure 1 on page 3 shows the port side of the switch. The serial port, Ethernet port,
and the Fibre Channel ports are all located on this side of the switch. All LEDs are
also located on the port side of the switch. These LEDs display the system status,
power status, port status, and port speed. See "Interpreting LED activity" on page
21 for a complete description of the locations and interpretations of these LEDs.
The switch enclosure has forced-air cooling, with the fans pushing the air from the
non-port side of the chassis through the enclosure, and exhausting through the
holes on the port side. Three dual speed fans provide the cooling for the switch.
2
SAN16B-2 Installation, Service, and User's Guide
™ ®
pSeries
™
and selected AS/400
®
and selected Netfinity
Server
®
and selected RS/6000
®
servers
®
servers
™
and Windows
®
(ESS)
servers
®
2000 and Windows 2003
