Accton Technology SwitcHub-2s Installation Manual

2-port ethernet switching hub for 10base-t/100base-tx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SwitcHub-2s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SwitcHub-2s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Accton Technology SwitcHub-2s

Summary of Contents for Accton Technology SwitcHub-2s

  • Page 1 SwitcHub-2s...

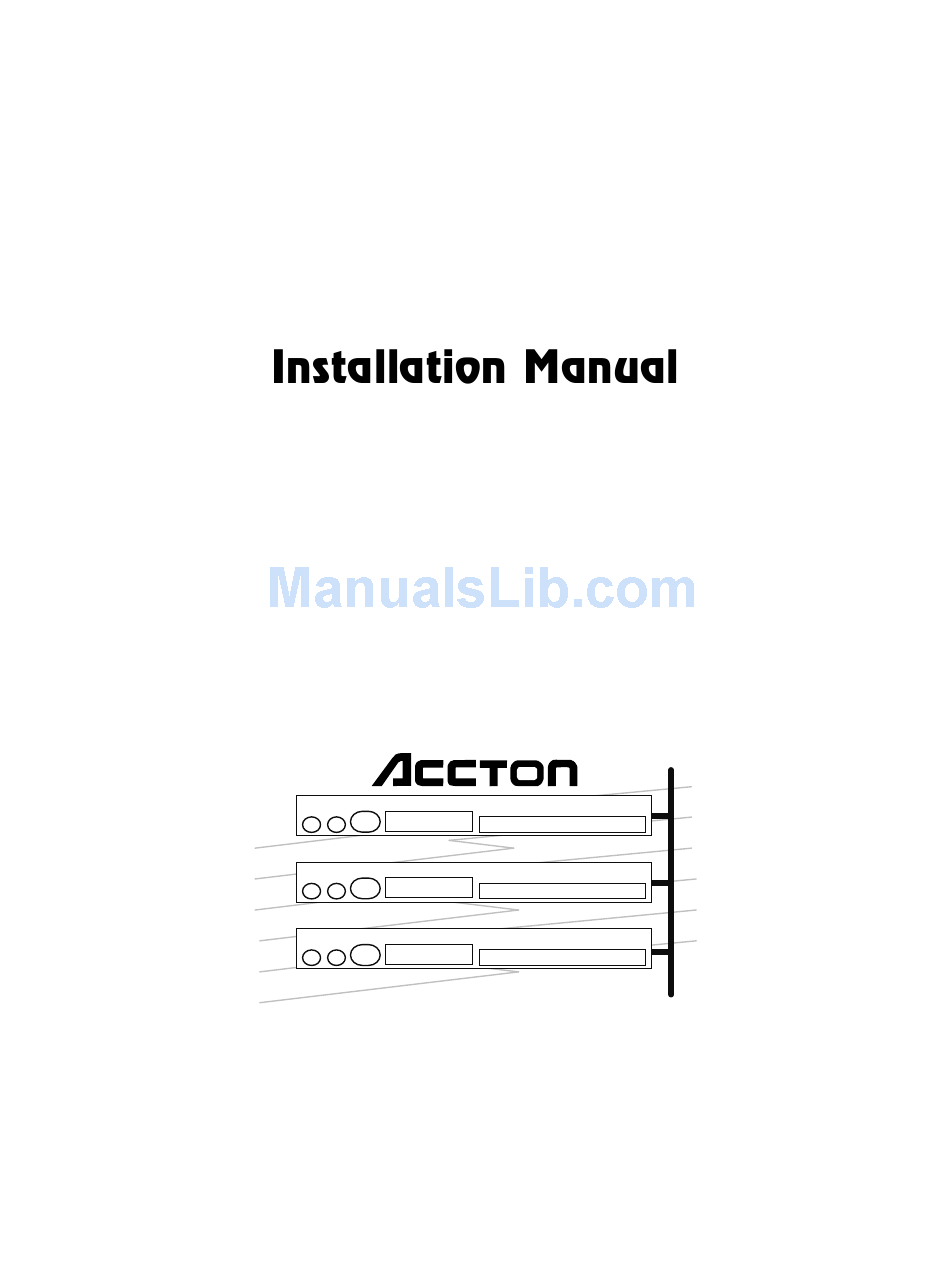

  • Page 2 Installation Manual SwitcHub-2s 2-Port Ethernet Switching Hub for 10BASE-T/100BASE-TX...
  • Page 3 FAX: 886-35-770-267 BBS: 408-452-8828 BBS: 886-35-770-654 FAST FAX: 408-452-8811 Internet: support@accton.com.tw Accton and SwitcHub are trademarks or registered trademarks of Accton Technology Corporation. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. EH3001 E0496-R03...

  • Page 4: About This Guide

    About this Guide This guide is designed for the experienced network installer. It describes how to install and operate Accton’s Fast SwitcHub-2s Ethernet switch. After reading this manual, you should be able to use the front display panel and configure options to manage all your network connections.

  • Page 5: Package Contents

    To qualify for product updates and product warranty registration, fill in the and return it to Accton Technology Corporation. Owner Registration Card Package Contents...

  • Page 6: Quick Installation

    Quick Installation The SwitcHub-2s contains 2 Ethernet ports, each of which supports 100BASE-TX or 10BASE-T connections, operating at full or half-duplex. The smart design built into the front display panel and configure options, provides a friendly interface that simplifies installation and network troubleshooting. If you are already familiar with basic network operations, you should be able to install this switch as described below: 1.

  • Page 7: Table Of Contents

    Contents Chapter 1: Introduction............1-1 Switching Technology....................1-1 Accton’s Smart Extender (The Fast SwitcHub-2s)............1-2 Features of the Fast SwitcHub-2s................1-4 Chapter 2: Hardware Description .......... 2-1 Front Panel .......................2-1 Configure Button ....................2-2 SmartWatch LED Panel..................2-3 Power ......................2-3 Statistical Display for System Performance............2-4 Setting the Communication Mode ..............2-6 Diagnostics Display Mode ................2-7 Port Status Display..................2-8...
  • Page 8 SwitcHub-2s User’s Guide Setting the Display Mode ..................3-5 Selections Available .....................3-6 Bandwidth Utilization..................3-6 Packet Forwarding Ratio.................3-6 Packet Filtering Ratio ..................3-6 Collision Ratio ....................3-6 Full/Half Duplex Mode Selection ..............3-7 Diagnostic Function ..................3-7 Verifying Port Status ....................3-8 Verifying System Operation..................3-8 Appendix A: Troubleshooting..........A-1 Diagnosing Hub Indicators..................A-1 System Diagnostics ....................A-2 Installation ......................A-2...
  • Page 9 SwitcHub-2s User’s Guide Appendix E: Product Support Services ........ E-1 Product Registration ....................E-1 Problem Report ......................E-1 Hardware Repair Service...................E-1 Software Update and Upgrade Service..............E-2 Bulletin Board Service (BBS) ...................E-2 Interactive Fast Fax (U.S.A. office) ................E-2 Technical Support .....................E-3 Limited Warranty ......................E-4 Customer Remedies....................E-4 Return Process......................E-5 Accton Distributors ....................E-6...

  • Page 10: Chapter 1: Introduction

    Chapter 1: Introduction Switching Technology The Ethernet Switch allows simultaneous transmission of multiple packets via an internal high-speed data channel. This means that it can partition a network more efficiently than bridges or routers in most environments. The Ethernet Switch is therefore fast being recognized as one of the most important building blocks for today’s networking technology.

  • Page 11: Accton's Smart Extender (The Fast Switchub-2S)

    SwitcHub-2s User’s Guide Accton’s Smart Extender (The Fast SwitcHub-2s) Accton’s Smart Extender can boost network bandwidth fourfold, depending on your configuration (i.e., if running at 100Mbps and full-duplex operation for both ports). It provides two 10/100 Mbps RJ-45 ports (set at full or half-duplex) to connect to either a subnetwork, or directly to a server or key workstation.
  • Page 12 SwitcHub-2s User’s Guide Traditional bridges and routers use a switching method called store-and- forward in which the entire frame must be received before the bridge can perform a table look-up for the destination node and forward the packet to the corresponding port.

  • Page 13: Features Of The Fast Switchub-2S

    SwitcHub-2s User’s Guide Features of the Fast SwitcHub-2s Conforms to the IEEE 802.3 and IEEE 802.3u specifications, as well as 10BASE-T and 100BASE-TX standards Provides two independent RJ-45 10BASE-T / 100BASE-TX Ethernet station ports, where each logical port consists of 1 MDI port (for connection to hubs or switches) and 1 MDI-X port (for connection to workstations or servers), eliminating the need for crossover cables Both ports support full-duplex and half-duplex operation...
  • Page 14 SwitcHub-2s User’s Guide Provides frame filtering and forwarding functions for each port, which are capable of filtering and forwarding 100% of all Ethernet packets at line speed Provides a 160K byte buffer per port Routing table contains 4K entries per port to store node MAC addresses Uses fast hashing scheme to retrieve information from routing table when making routing decisions An indicator panel for configuring the system or monitoring the overall...

  • Page 15: Chapter 2: Hardware Description

    Chapter 2: Hardware Description Accton’s SwitcHub-2s is a highly reliable network switch that complies with IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) specifications. This switching hub delivers superior performance compared to the bridge and router solution, and at a much lower cost. By confining local traffic to the originating segment, and only forwarding cross-segment traffic to the other port, this hub meets the requirements for Ethernet and IEEE 802.3 networks.

  • Page 16: Configure Button

    SwitcHub-2s User’s Guide Configure Button button is located on the left front panel. This button is used to Configure select the following configuration functions: System Performance (displays relative bandwidth utilization rate, forwarding ratio, filtering ratio, and collision ratio for each port) Full/Half Duplex (sets port communication mode to full-duplex or half- duplex operations) Diagnostics (tests the status of various system components)

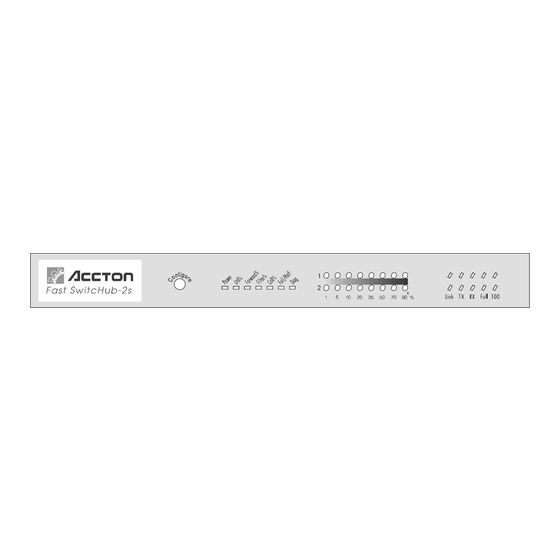

  • Page 17: Smartwatch Led Panel

    SwitcHub-2s User’s Guide SmartWatch LED Panel The comprehensive LED array on the front panel (1) shows if the unit is receiving power, (2) indicates the current display mode, (3) displays network performance for each port, (4) indicates the status of port connections, and (5) shows the result of diagnostic tests.

  • Page 18: Statistical Display For System Performance

    SwitcHub-2s User’s Guide Statistical Display for System Performance (Utilization, Forward, Filter & Collision Display Mode) Display – Mode – Port 1 Statistical – Indicators Port 2 – Value Color: Green and Orange Active LEDs: LED rows labeled Function: Indicates a functional value for each port depending on the selected display mode.
  • Page 19 SwitcHub-2s User’s Guide For example, if network utilization reaches 1%, the LED labeled 1% will light up. However, if network utilization rises above 1% (e.g., 35%), the LED labeled 35 and all the other LEDs before it (i.e., 1, 5, 10 and 20) will also light up in rapid succession.

  • Page 20: Setting The Communication Mode

    SwitcHub-2s User’s Guide level marked on the front panel display, the corresponding LED lights up. For example, if packet collision reaches 1%, the LED labeled 1% will light up. However, if collisions go beyond 1% (e.g., 30%), the LED labeled 30 % and all the other LEDs before it (i.e., 1, 5, 10 and 20) also light up in rapid succession.

  • Page 21: Diagnostics Display Mode

    SwitcHub-2s User’s Guide Diagnostics Display Mode Color: Green Active LED: Diag Function: Indicates that the system is in Diagnostic mode. (Refer to the section earlier in this chapter for instructions on Configure Button how to select the display mode.) After power on, the hub automatically performs a self-diagnostic test. This test is done in two stages.

  • Page 22: Port Status Display

    SwitcHub-2s User’s Guide Port Diagnostic Test The Port Diagnostic Test checks all ports. If a problem is detected, an LED in the corresponding row (which indicates the malfunctioning port) and column (which indicates the failed component) will light up as shown below. LED Indicator Color Diagnostic Test Status...
  • Page 23 SwitcHub-2s User’s Guide Indicates outgoing traffic traversing the port. Transmit (TX) - LED Activity Condition Indication BLINKING LIGHT Indicates the port is transmitting packets; blinking is proportional to the traffic passing through the port. NO LIGHT No packets are being transmitted from this port. Indicates incoming traffic entering the port.

  • Page 24: Rear Panel

    SwitcHub-2s User’s Guide Rear Panel The unit’s rear panel includes two logical Ethernet ports and a full-range power socket. Although 10BASE-T and 100BASE-TX connections are automatically sensed by the SwitcHub, you must use the Configure button to set the data transfer mode to full-duplex or half-duplex operation, as described under Setting in this chapter.

  • Page 25: Chapter 3: Setup And Configuration

    Chapter 3: Setup and Configuration This chapter provides information on pre-installation requirements, establishing network connections, and configuring the system. Pre-Installation Requirements Before you start making network connections to the SwitcHub, make sure you can provide the right operating environment, including power requirements, and proximity to other network devices that are to be connected.

  • Page 26: Connecting The Hub System

    SwitcHub-2s User’s Guide Connecting the Hub System The SwitcHub has two logical RJ-45 Ethernet ports. Use twisted pair cable to connect either of the RJ-45 ports to a server/workstation or to another compatible hub as described below. Server/Workstation Connection 1. Prepare the workstations you wish to network. Make sure they have properly installed 10BASE-T or 100BASE-TX network interface cards.

  • Page 27: Daisy-Chain Connection

    SwitcHub-2s User’s Guide Daisy-Chain Connection 1. Prepare Category 5 straight-through twisted-pair cables with RJ-45 plugs at both ends. Connect the SwitcHub to another compatible hub using the crossover port (labeled ) on either the SwitcHub or on the attached hub (but not both).

  • Page 28: Providing Power To The Switchub

    SwitcHub-2s User’s Guide Providing Power to the SwitcHub 1. Power on the hub by plugging the power cord into the power socket at the rear of the SwitcHub, and the other end into a power outlet. 2. Check the LED marked on the front panel to see if it is on.

  • Page 29: Setting The Display Mode

    SwitcHub-2s User’s Guide Setting the Display Mode button is located on the left front panel. This button is used to Configure access the following configuration functions in sequence: Bandwidth Utilization The percentage of LAN bandwidth utilized. The percentage of packets that are forwarded to the Forwarding Ratio other port.

  • Page 30: Selections Available

    SwitcHub-2s User’s Guide Selections Available This section shows the information available for each display mode and the corresponding LED indicators. The display functions are listed here in the sequence selected by the configure button. For a more detailed description of these indicators, refer to Chapter 2.

  • Page 31: Full/Half Duplex Mode Selection

    SwitcHub-2s User’s Guide Full/Half Duplex Mode Selection Active LED: (ON) Full/Half This function is used to set the communication mode for selected ports to full- duplex or half-duplex. 1. Use the button to light the Display Mode indicator. Note Configure Full/Half that before the button is released, the current communication mode...

  • Page 32: Verifying Port Status

    SwitcHub-2s User’s Guide Verifying Port Status Check each connection by viewing the port status indicators listed below. (For a more detailed description of these indicators, refer to Chapter 2.) Indicates that the port has established valid network connection. Link Indicates outgoing traffic traversing the port. Transmit Indicates incoming traffic entering the port.
  • Page 33 SwitcHub-2s User’s Guide Verify that the workstation’s adapter card is functioning properly by trying it in another computer that has been successfully connected to the network. If you still can’t resolve the problem, please refer to in Appendix A. Troubleshooting Hardware Installation...

  • Page 34: Appendix A: Troubleshooting

    Appendix A: Troubleshooting Diagnosing Hub Indicators The SwitcHub-2s can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems the hub may encounter. This section describes common problems you may encounter and possible solutions. Link indicator does not light up (green LED) after making a connection.

  • Page 35: System Diagnostics

    SwitcHub-2s User’s Guide System Diagnostics Installation Verify that all system components have been properly installed. If one or more components appear to be malfunctioning, test them in an alternate environment where you are sure that all the other components are functioning properly. Transmission Mode Be sure each port on the SwitcHub is set to the same transmission mode as the attached device;...

  • Page 36: Hub Integrity

    SwitcHub-2s System User’s Guide Hub Integrity As a last resort verify the hub’s integrity with a power-on reset. Turn the power to the hub off and then on. If the problem still persists and you have completed all the preceding diagnoses, then contact your Accton distributor for further assistance.

  • Page 37: Appendix B: Port And Cable Assignments

    Appendix B: Port and Cable Assignments RJ-45 Port Figure B-1 RJ-45 Connector (on the Hub Side) MDI-X Assignment MDI Assignment Station Port 1 ~ 2 Cascade Port 1 ~ 2 Input Receive Data + Output Transmit Data + Input Receive Data - Output Transmit Data - Output Transmit Data + Input Receive Data +...

  • Page 38: Appendix C: Specifications

    Appendix C: Specifications Product Specifications Basic Criteria CSMA/CD, 10/100 Mbps (auto-sensed) Access Method IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Standards Conformance Full-duplex or half-duplex Communication Mode Media Supported 10BASE-T Category 3,4,5 twisted-pair cable 100BASE-TX Category 5 twisted-pair cable 2 RJ-45 ports (selectable 10BASE-T or 100BASE-TX per port) Number of Ports 273mm x 166mm x 42.9mm (10.75 x 6.54 x 1.69 ) Dimensions...

  • Page 39: Appendix D: Regulatory Standards Compliance

    Appendix D: Regulatory Standards Compliance EMI Warning FCC Class B Certification Accton Technology Corporation Model Numbers: EH3001-TX FCC ID: HED3001EHLCT-TX This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2.
  • Page 40 SwitcHub-2s User’s Guide Warnings 1. Wear an anti-static wrist strap or take other suitable measures to prevent electrostatic discharge whenever handling this equipment. 2. When connecting this hub to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.

  • Page 41: Voluntary Control Council For Interference (Vcci-2

    SwitcHub-2s User’s Guide Voluntary Control Council for Interference (VCCI-2) This product also complies with CISPR22 Class B (EN55022 Class B). EN55022 Declaration of Conformance This is to certify that the Accton Ethernet Hub is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a.

  • Page 42: Safety Compliance

    SwitcHub-2s User’s Guide Safety Compliance Underwriters Laboratories Compliance Statement Important! Before making connections, make sure you have the correct Cord Set. Check it (read the label on the cable) against the following specification list. Operating Voltage Cord Set Specifications 120 Volts UL Listed/CSA Certified Cord Set Minimum 18 AWG Type SVT or SJT three conductor cord...

  • Page 43: Sicherheitshinweise

    SwitcHub-2s User’s Guide Sicherheitshinweise 1. Die Steckdose muß sich in der Nähe des Gerätes befinden und leicht zugänglich sein. 2. Zum Reinigen den Stecker aus der Steckdose ziehen. Beim Reinigen keine Flüssigreiniger oder Sprays verwenden, sondern ein angefeuchtetes Tuch. 3. Das produkt gerät nicht in Naßräume oder in der Nähe von Wasser benutzen, wie z.B.

  • Page 44: Appendix E: Product Support Services

    Write a description of the problem, including what problems occurred, when they occurred, duration of the problems, the unit number, serial number, hardware, software and the DOS version that you are using. Then contact your dealer or Accton Technology Corporation for assistance.

  • Page 45: Software Update And Upgrade Service

    SwitcHub-2s User’s Guide After repair, Accton will inform you of the date of delivery and the exact amount due. Please send the payment by T/T (Telegram Transfer), and Accton will send you the fixed component after receiving payment. With or without warranty, if the hardware is found to be free of defects, you will only be charged for testing and handling.

  • Page 46: Technical Support

    To obtain software upgrades connect via ftp to ftp.accton.com.tw Send your technical questions by email to support@accton.com.tw Mail your technical questions to: International Headquarters USA Headquarters Accton Technology Corporation Accton Technology Attn: Technical Support Corporation No. 1 Creation Road III...

  • Page 47: Limited Warranty

    SwitcHub-2s User’s Guide Limited Warranty Accton warrants to the original owner that the product delivered in this package will be free from defects in material and workmanship for the lifetime of the product. For the warranty to apply, you must register your purchase by returning the registration card indicating the date of purchase and including proof of purchase.

  • Page 48: Return Process

    Accton’s Limited Lifetime Warranty for this product. The product may contain fully tested, recycled parts, warranted as if new. For warranty information: All territories except North and South America: Accton Technology Corporation, International Headquarters No. 1, Creation Rd. III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Phone: 886-35-770-270 Fax: 886-35-770-267...

  • Page 49: Accton Distributors

    SwitcHub-2s User’s Guide Accton Distributors Accton Australia, Accton Technology Corporation Unit 23, No.27 Doomben Ave., International Headquarters, Eastwood, N.S.W. 2122, Australia No. 1 Creation Rd. III, Phone: 612-8582436 Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Fax: 612-8581723 Hsinchu: Phone: 886-35-770-270,...

  • Page 50: Glossary

    Glossary 10BASE-T IEEE’s specifications for 10 Mbps Ethernet using twisted-pair cable (100 STP or UTP . The maximum length of cable for a point-to-point connection is 100 meters. 100BASE-TX IEEE’s specifications for 100 Mbps Ethernet using twisted-pair cable (100 STP or UTP .
  • Page 51 SwitcHub-2s User’s Guide Ethernet A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access, logical bus topology, and coaxial cable. The successor IEEE 802.3 standard provides for integration into the OSI model and extends the physical layer and media with repeaters and implementations that operate on fiber optics, broadband, and twisted-pair.
  • Page 52 SwitcHub-2s User’s Guide Unshielded Twisted-Pair (UTP) Cable composed of two insulated wires twisted together to reduce electrical interference; used in common telephone cord. Glossary...

  • Page 53: Index

    Index Accton's Ethernet Switch (SwitcHub-2se) • Hardware Description • 2-1 Installation Requirements • 3-1 Configure Button • 2-2 Long Press • 3-5 Short Press • 3-5 Connecting the Hub System • 3-2 LED Indicators Connection 100 • 2-9 Verifying • 3-8 Coll% •...
  • Page 54 SwitcHub-2s User’s Guide System Diagnostic Test • 2-7 Package Contents • iii Port and Cable Assignments • B-1 Port Diagnostic Test • 2-8 Troubleshooting • 2-8, A-1 Port Status • 3-8 Configuration • A-2 Port Status Indicators • 2-8 Hub Indicators • A-1 Power Socket •...
  • Page 55 EH3001-TX E0496-R03 150652-101...
