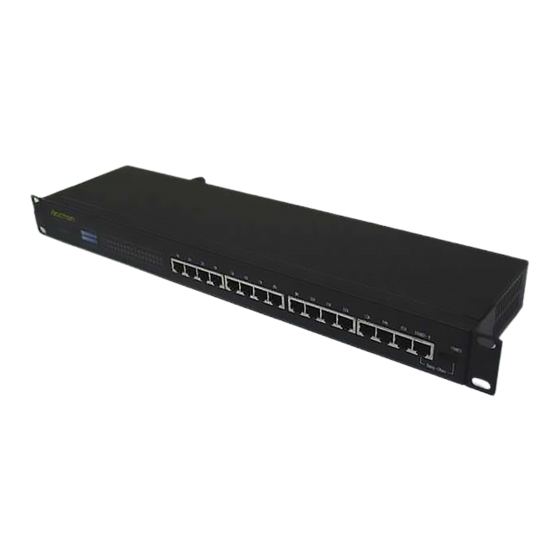

EtherHub-16
Smart Ethernet Hub with 16 RJ-45 Ports and 2 AUI/BNC Ports
This 10 Mbps Ethernet hub includes 16 RJ-45 ports on the front panel, and 2 AUI/BNC ports on
the rear panel. This hub can be operated in a stand-alone configuration, cascaded to other hubs,
or linked to one or more AUI/BNC backbones. This hub is suitable for desktop or rack-mount
installation, and supports full-range power input. The EtherHub-16 conforms to the IEEE 802.3
standard for local area networks based on CSMA/CD, and provides10BASE-T, 10BASE2 and
10BASE5 repeater functions including:
Signal amplification and retiming
Preamble regeneration and fragment extension
Automatic port partition and reconnection

Hardware Installation

The EtherHub-16 has 16 RJ-45 ports, of which Port 16 can serve as either a standard port or a
daisy-chain port. It also has two AUI/BNC ports. Use twisted-pair cable (100
connect any standard RJ-45 (MDI-X) port to a server/workstation, or to connect the RJ-45 daisy-
chain port (i.e., Port 16MDI ) to another compatible hub or switch. You can also attach up to two
Ethernet LAN backbones by connecting thin coaxial cable to a BNC port or connecting thick
coaxial cable to an AUI port.
Making RJ-45 Connections
1. Prepare straight-through twisted-pair cable (100 ) with RJ-45 plugs at both ends. The
length of each cable should not exceed 100 meters (328 feet).
Do not plug a phone jack connector into any RJ-45 port. This may damage the hub. Instead,
use only twisted-pair cables with RJ-45 connectors that conform with FCC standards.
Quick Start Guide
STP or UTP) to
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherHub-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Accton Technology EtherHub-16

Summary of Contents for Accton Technology EtherHub-16

  • Page 1: Hardware Installation

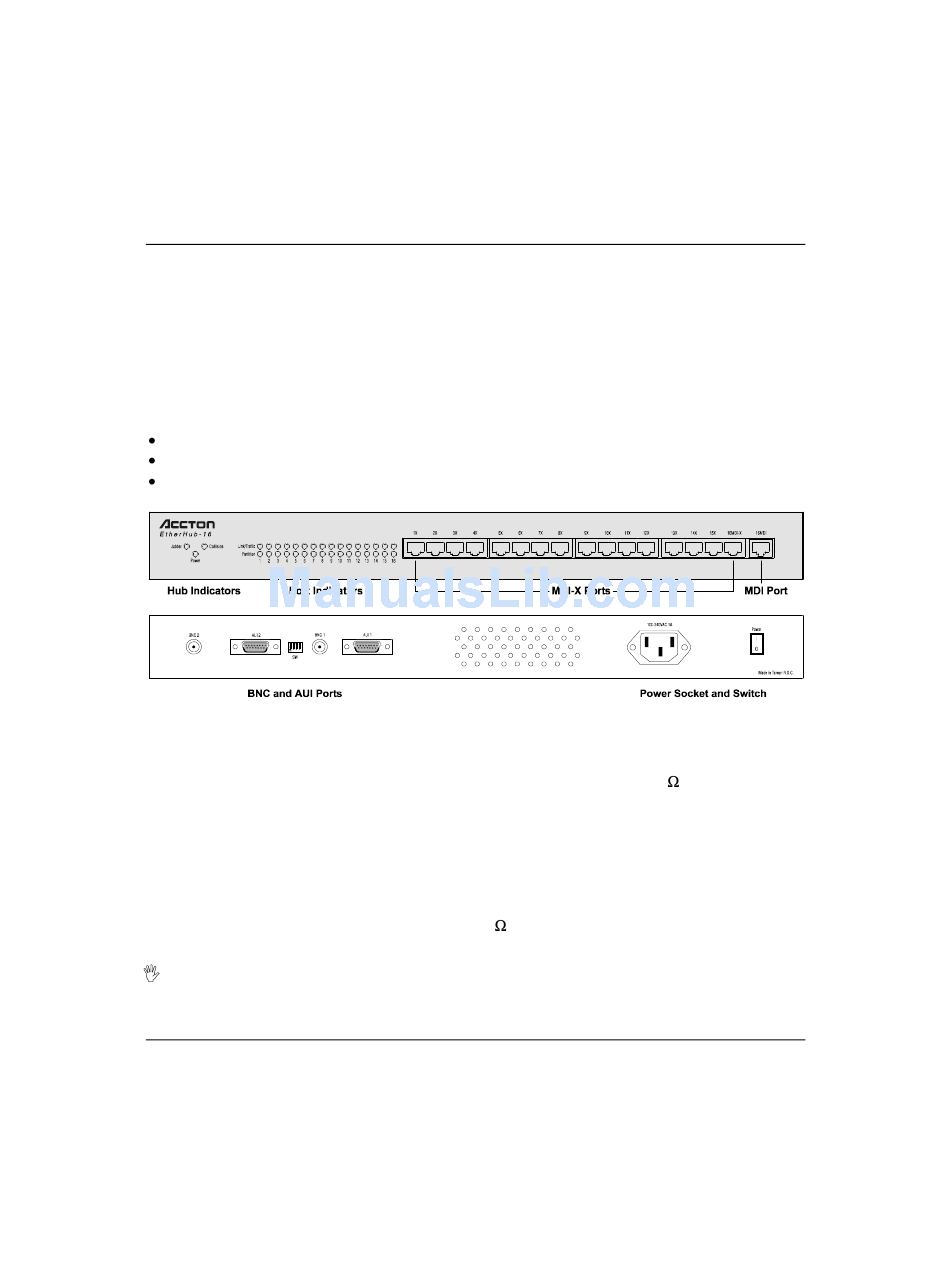

    EtherHub-16 Quick Start Guide Smart Ethernet Hub with 16 RJ-45 Ports and 2 AUI/BNC Ports This 10 Mbps Ethernet hub includes 16 RJ-45 ports on the front panel, and 2 AUI/BNC ports on the rear panel. This hub can be operated in a stand-alone configuration, cascaded to other hubs, or linked to one or more AUI/BNC backbones.
