Summary of Contents for Accton Technology CHEETAHUB POWER-3012A

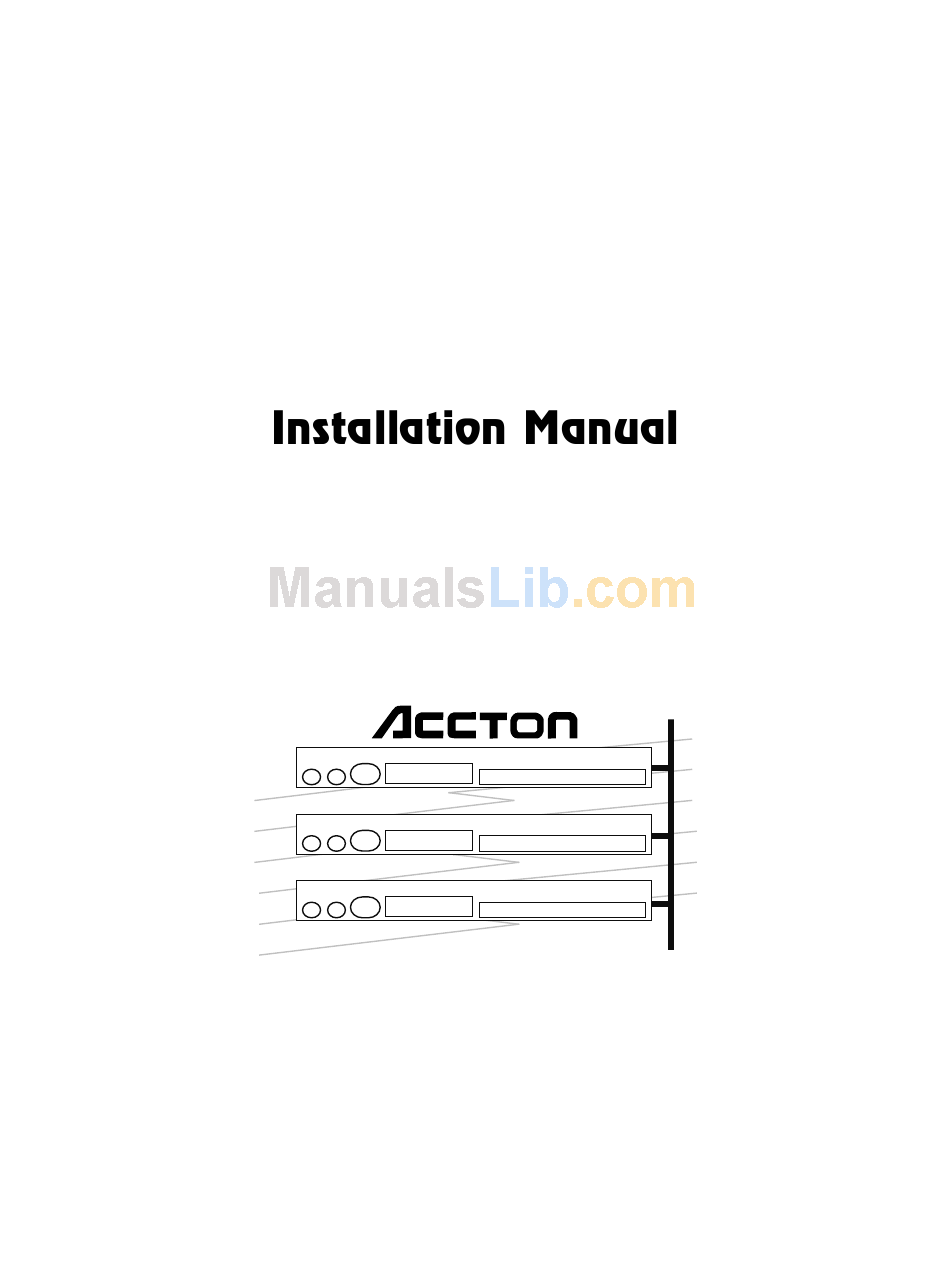

- Page 1 ™ CheetaHub Power-3012A...
- Page 2 Installation Manual ™ CheetaHub Power-3012A Smart Fast Ethernet Stackable Hub with 12 100BASE-TX Ports and Optional Fast Ethernet Switch Modules...
- Page 3 Copyright © 1997 by Accton Technology Corporation. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Accton Technology Corporation. Accton makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose.
-
Page 4: Package Checklist
To qualify for product updates and product warranty registration, fill in the and return it to Accton Technology Corporation. Owner Registration Card Package Contents... -
Page 5: Quick Installation
Quick Installation The CheetaHub Power-3012A is a Class I Fast Ethernet repeater. It contains 12 100BASE-TX Fast Ethernet ports. This hub also includes two stack ports on the rear panel, allowing you to stack up to 5 hubs, and one slot for optional switch modules which support an additional Fast Ethernet connection (100BASE-TX or 100BASE-FX). - Page 6 CheetaHub Power-3012A User’s Guide 6. To connect a Fast Ethernet switch, run straight-through twisted-pair cable from the MDI daisy-chain port on this hub (Port 12) to any MDI-X station port on the other device (or vice versa). Refer to Figure 3.3. If necessary, you can also cascade between two station ports using crossover cable.
-
Page 7: About This Guide
About this Guide This guide is designed for the experienced network installer. It describes how to install and operate the CheetaHub Power-3012A. After reading this manual, you should be able to use the front display panel and configure options to manage all your network connections. - Page 8 Contents Chapter 1: Product Overview ... 1-1 Introduction to Fast Ethernet ...1-1 Accton’s CheetaHub Power-3012A ...1-1 Basic Features ...1-2 Chapter 2: Installing the System... 2-1 Pre-Installation Requirements ...2-1 Hardware Installation ...2-2 Stacking Hubs on a Flat Surface...2-2 Mounting Hubs in a Rack ...2-3 Connecting the Hub System ...2-4...
- Page 9 CheetaHub Power-3012A User’s Guide Appendix B: Port and Cable Assignments... B-1 RJ-45 Port ...B-1 Appendix C: Specifications... C-1 Product Specifications...C-1 Appendix D: Regulatory Standards Compliance... D-1 EMI Certification ...D-1 FCC Class B Certification ...D-1 Voluntary Control Council for Interference (VCCI-B) ...D-2 European Community Immunity Requirements...D-3...
-
Page 10: List Of Figures
CheetaHub Power-3012A User’s Guide List of Figures Figure 2-1 Stacking Hubs on a Flat Surface ...2-2 Figure 2-2 Mounting Hubs in a Rack...2-3 Figure 2-3 Connecting the Backplane Bus in a Stack ...2-5 Figure 2-4 Fast Ethernet Switch Modules...2-6 Figure 2-5 Switch Indicators...2-11 Figure 3-1 Stand-Alone Configuration ...3-1...
