EtherHub-5st
5-Port 10BASE-T Smart Ethernet Hub
Thank you for purchasing our product. This quick start guide contains information necessary to
install and operate Accton's EtherHub-5st smart Ethernet hub. This guide is designed for the
experienced network installer.

Package Contents

Your package includes the following:
EtherHub-5st (EH2045S).
Quick Start Guide
Power Adapter (optional)

Hardware Description

To stand the hub upright on a desk or nearby shelf, slide the stand onto the base of the hub. To
lay the hub flat on a convenient surface, slide the stand onto the back of the hub. Or to mount it
directly on a wall or office partition, first attachthe stand (i.e., mounting bracket) to the required
location with two small screws and then slide the back of the hub onto the bracket.
Quick Start Guide

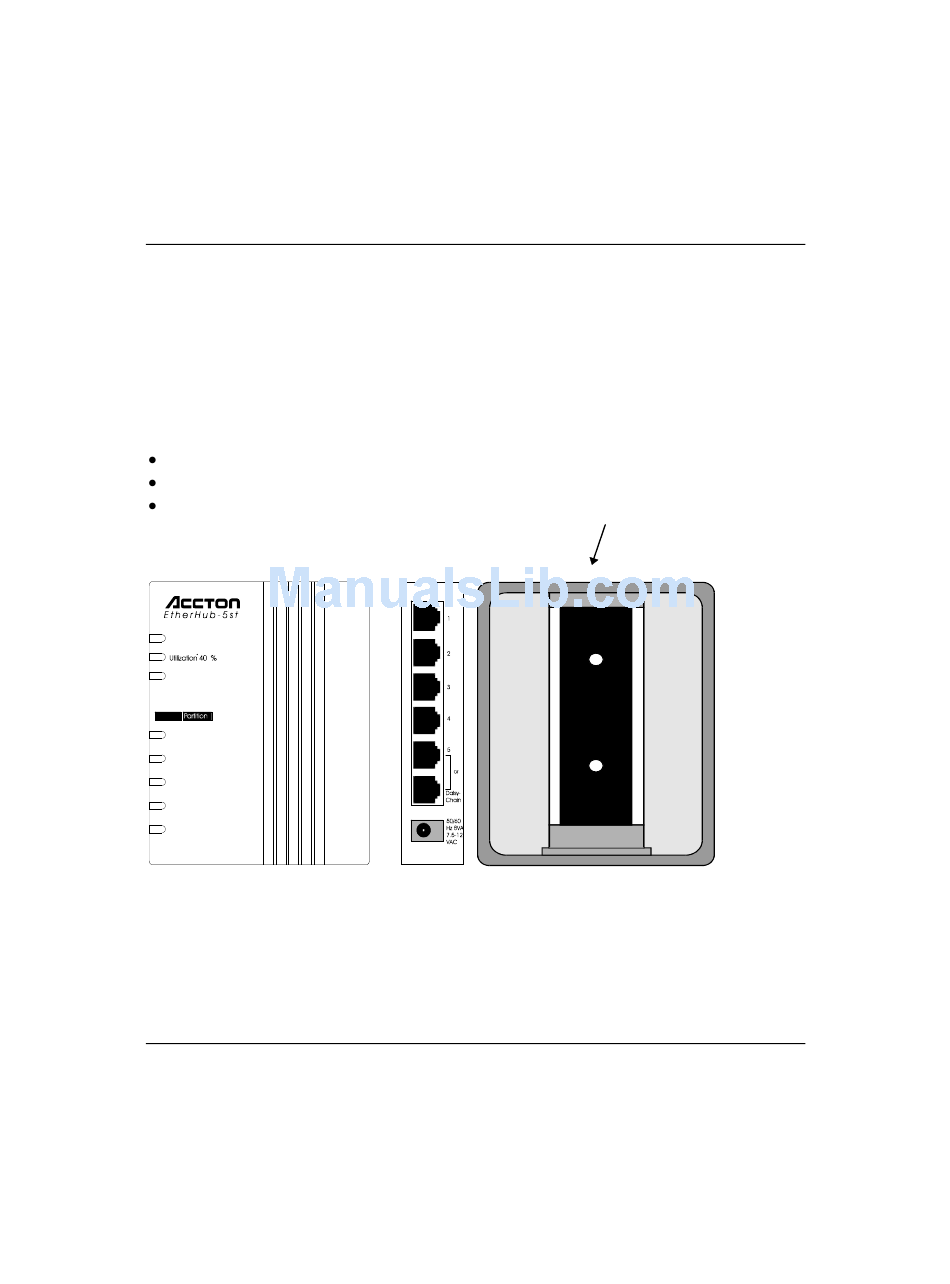

Frant and Side Panels, and Hub Stand
Use the stand to mount the
hub standing upright , lying
flat , or directly on a wall.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH2045S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Accton Technology EH2045S

Summary of Contents for Accton Technology EH2045S

  • Page 1: Package Contents

    EtherHub-5st Quick Start Guide 5-Port 10BASE-T Smart Ethernet Hub Thank you for purchasing our product. This quick start guide contains information necessary to install and operate Accton’s EtherHub-5st smart Ethernet hub. This guide is designed for the experienced network installer. Package Contents Your package includes the following: EtherHub-5st (EH2045S).

  • Page 2: Led Indicators

    EtherHub-5st User’s Guide LED Indicators This hub provides LED indicators for monitoring various network conditions. A glance at the front panel allows you to instantly monitor the status of each station port plus the overall condition of the hub. Color Indication Power Green...

  • Page 3: Troubleshooting

    EtherHub-5st User’s Guide Connect the hub to another hub in a daisy-chain configuration, if necessary. When daisy- chaining, use port 5MDI instead of station port 5MDI-X. To limit the number of hubs in a path (when daisy-chaining more than two hubs), link several hubs to one central hub.

  • Page 4: Specifications

    EtherHub-5st User’s Guide Hub’s RJ-45 Pin Assignments MDI-X Assignment MDI-Assignment (port 1~5) (Daisy-Chain Port) Input Receive Data + Output transmit Data + Input Receive Data - Output transmit Data - Output transmit Data + Input Receive Data + Output transmit Data - Input Receive Data - 4,5,7,8 Not Used...

  • Page 5: Emi Warning

    EtherHub-5st User’s Guide EMI Warning FCC Class B Certification Accton Technology Corporation Model Number: EH2045S FCC ID: HEDEH2045S This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2.
  • Page 6 EtherHub-5st User’s Guide Note: In order to maintain compliance with the limits of a Class B digital device, Accton requires that you use a quality interface cable when connecting to this device. Changes or modifications not expressly approved by Accton could void the user’s authority to operate this equipment.
  • Page 7 EtherHub-5st User’s Guide Sicherheitshinweise 1. Die Steckdose muß sich in der Nähe des Gerätes befinden und leicht zugänglich sein. 2. Zum Reinigen den Stecker aus der Steckdose ziehen. Beim Reinigen keine Flüssigreiniger oder Sprays verwenden, sondern ein angefeuchtetes Tuch. 3. Das Ethernet hub gerät nicht in Naßräume oder in der Nähe von Wasser benutzen, wie z.B. Badezimmer, Schwimmbad, Spülbecken usw.
  • Page 8 CONSEQUENTIAL DAMAGES. ACCTON NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY OTHER LIABILITY. Copyright Copyright 1995 by Accton Technology Corporation. All rights reserved. Product specification are subject to change without notice. All trademarks or brand names are properties of their respective companies. Disclaimer The publisher assumes no responsibility for errors that may appear in this document, nor does it make any commitment to update information it contains.
