- Page 1 SwitcHub-2se...

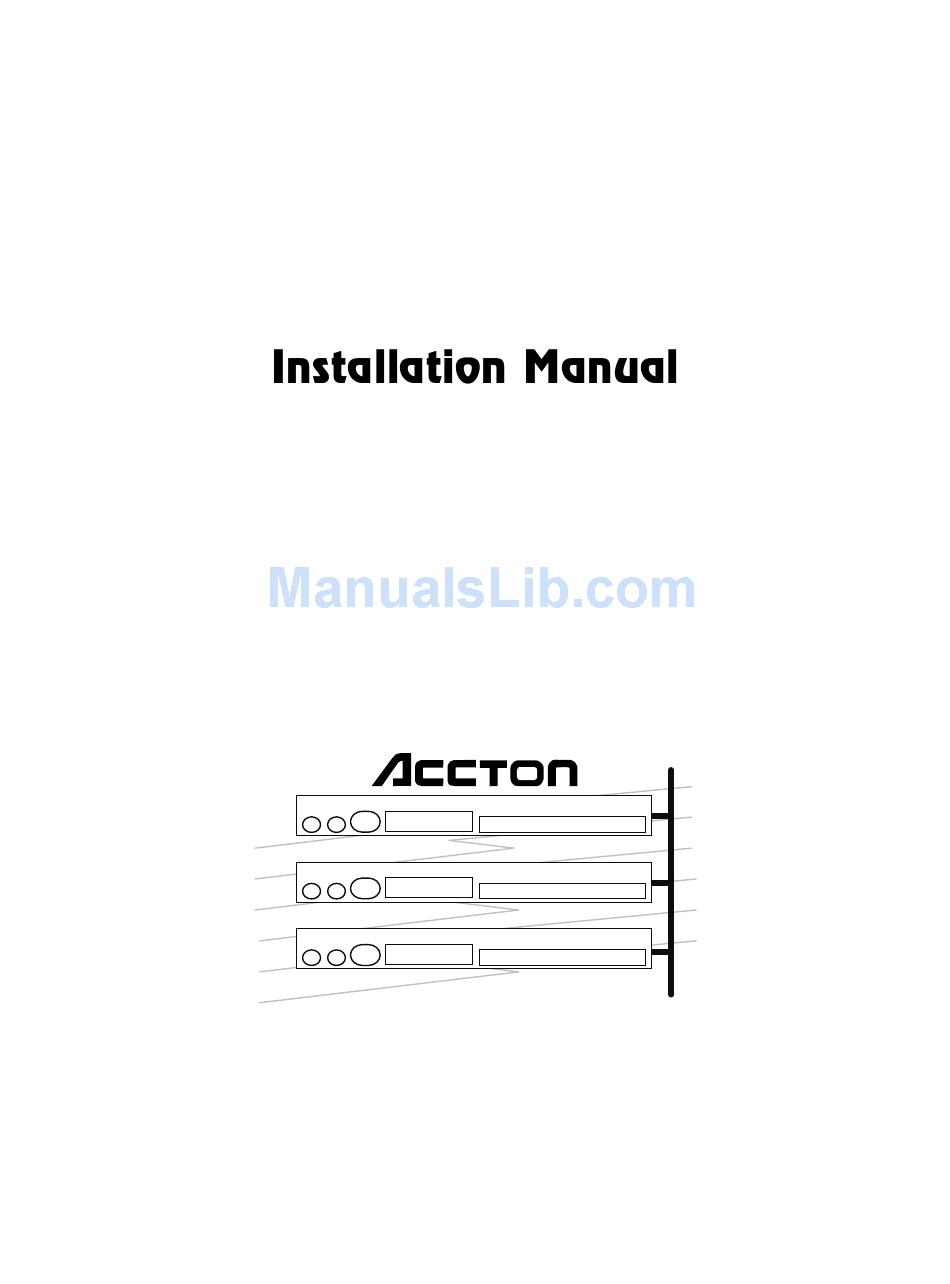

- Page 2 Installation Manual SwitcHub-2se Smart Fast Ethernet Switch with one 10BASE-T/100BASE-TX Port and one 100BASE-FX Port...
- Page 3 BBS: 408-452-8828 BBS: 886-35-770-654 FAST FAX: 408-452-8811 Internet: support@accton.com.tw Accton, SmartWatch and SwitcHub are trademarks or registered trademarks of Accton Technology Corporation. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. ES3002-TF E0596-R01...
-
Page 4: Package Contents
To qualify for product updates and product warranty registration, fill in the Owner Registration Card and return it to Accton Technology Corporation. Package Contents... -
Page 5: Quick Installation
Quick Installation The Fast SwitcHub-2se contains 2 Ethernet ports that can operate at full-duplex or half-duplex. One of these ports supports 100BASE-TX or 10BASE-T (twisted- pair) connection, while the other port supports 100BASE-FX (fiber optic) connection. The smart design built into the front display panel and configure options, provides a friendly interface that simplifies installation and network troubleshooting. - Page 6 (Refer to Full/Half Duplex Mode Selection in Chapter 2). If you encounter any problems in installing the Fast SwitcHub-2se, refer to Chapter 2 for a detailed description of installation procedures, or to Appendix A for help in troubleshooting.
-
Page 7: About This Guide
About this Guide This guide is designed for the experienced network installer. It describes how to install and operate Accton’s Fast SwitcHub-2se Ethernet switch. After reading this manual, you should be able to use the front display panel and configure options to manage all your network connections. -
Page 8: Table Of Contents
Contents Chapter 1: Introduction............1-1 Switching Technology....................1-1 Accton’s Smart Extender...................1-2 Switching Methods....................1-3 Features of the Fast SwitcHub-2se ................1-4 Chapter 2: Setup and Configuration........2-1 Pre-Installation Requirements ...................2-1 Connecting the Switch System ..................2-1 Making RJ-45 Connections ..................2-2 Making Fiber Optic Connections................2-3 Providing Power to the SwitcHub ................2-4... - Page 9 Fast SwitcHub-2se User’s Guide Chapter 3: Hardware Reference..........3-1 Front Panel .......................3-1 Configure Button ....................3-2 SmartWatch Indicator Panel .................3-3 Power ......................3-3 Statistical Display for System Performance............3-4 Setting the Communication Mode ..............3-6 Diagnostics Display Mode ................3-7 Port Status Display..................3-8 Rear Panel .......................3-10 Ethernet Ports .......................3-10...
- Page 10 Fast SwitcHub-2se User’s Guide Appendix D: Regulatory Standards Compliance....D-1 EMI Warning ......................D-1 FCC Class B Certification ..................D-1 Voluntary Control Council for Interference (VCCI-2) .........D-2 EN55022 Declaration of Conformance ..............D-3 Safety Compliance.....................D-4 Underwriters Laboratories Compliance Statement ..........D-4 Sicherheitshinweise ....................D-5 Appendix E: Product Support Services ........ E-1 Product Registration ....................E-1...
-
Page 11: Chapter 1: Introduction
Chapter 1: Introduction Switching Technology The Ethernet Switch allows simultaneous transmission of multiple packets via an internal high-speed data channel. This means that it can partition a network more efficiently than bridges or routers. The Ethernet Switch is therefore fast being recognized as one of the most important building blocks for today’s networking technology. -
Page 12: Accton's Smart Extender
Fast SwitcHub-2se User’s Guide Accton’s Smart Extender Accton’s Fast Switch-2se can boost network bandwidth fourfold (i.e., if running at 100Mbps and using full-duplex operation for both ports). It provides one 10/100 Mbps RJ-45 port for 10BASE-T or 100BASE-TX media attachment (which is automatically detected by the switch), and one 100 Mbps fiber optic port for 100BASE-FX media attachment via an SC or ST type connector. -
Page 13: Switching Methods
Although cut-though switching is recommended as the fastest method for most applications, the other methods mentioned above are also supported by the Fast SwitcHub-2se to guarantee flawless performance. To ensure that you can manage any kind of network load, the Smart Extender uses adaptive cut- through switching based on Accton’s smart algorithm. -
Page 14: Features Of The Fast Switchub-2Se
By using this method, the Fast SwitcHub-2se delivers the best networking performance under any environment. - Page 15 Fast SwitcHub-2se User’s Guide • Transparent bridging function supported • Address learning function to build the routing information database • Operates at maximum packet filtering and forwarding rate • Supports multimode fiber optic backbone of up to 2 kilometers for a dedicated link (i.e., a full-duplex connection) or 412 meters for a shared...
-
Page 16: Chapter 2: Setup And Configuration
Chapter 2: Setup and Configuration This chapter provides information on pre-installation requirements, establishing network connections, and configuring the system. Pre-Installation Requirements Before you start making network connections to the SwitcHub, make sure you can provide the right operating environment, including power requirements, and proximity to other network devices that are to be connected. -
Page 17: Making Rj-45 Connections
Fast SwitcHub-2se User’s Guide Making RJ-45 Connections 1. Prepare a straight-through twisted-pair cable with RJ-45 plugs at both ends. 2. If you are making a connection to a server or workstation (i.e., a dedicated connection to an end-node device), be sure that it has a properly installed 100BASE-TX or 10BASE-T network interface card. -
Page 18: Making Fiber Optic Connections
Fast SwitcHub-2se User’s Guide Making Fiber Optic Connections 1. Prepare a pair of fiber-optic cables with SC or ST type connectors at both ends. SC-Type Connector ST-Type Connector 2. If you are making a connection to a server or workstation, be sure it that has a properly installed 100BASE-FX network interface card. - Page 19 Fast SwitcHub-2se User’s Guide For a sample calculation, assume the following values: • cable gauge - 62.5/125 m, which means a 13 dB power budget, • 2 patch panels between the switches, each with 0.5 dB power loss, and 1 splice with 0.4 dB power loss (i.e., 2 * 0.5 + 0.4 = 1.4 dB power loss for intervening devices), and •...
-
Page 20: Providing Power To The Switchub
Fast SwitcHub-2se User’s Guide Providing Power to the SwitcHub 1. Power on the switch by plugging the power cord into the power socket at the rear of the SwitcHub, and the other end into a power outlet. 2. Check the LED marked on the front panel to see if it is on. -
Page 21: Setting The Display Mode
Fast SwitcHub-2se User’s Guide Setting the Display Mode button is located on the left front panel. This button is used to Configure access the following configuration functions in sequence: • Bandwidth Utilization The percentage of LAN bandwidth utilized. • The percentage of packets that are forwarded to the Forwarding Ratio other port. -
Page 22: Selections Available
Fast SwitcHub-2se User’s Guide Selections Available This section shows the information available for each display mode and the corresponding LED indicators. The display functions are listed here in the sequence selected by the configure button. For a more detailed description of these indicators, refer to Chapter 3. -
Page 23: Full/Half Duplex Mode Selection
Fast SwitcHub-2se User’s Guide Full/Half Duplex Mode Selection Active LED: (ON) Full/Half This function is used to set the communication mode for selected ports to full- duplex or half-duplex. 1. Use the button to light the Display Mode indicator. Note... -
Page 24: Verifying Port Status
Fast SwitcHub-2se User’s Guide Verifying Port Status Check each connection by viewing the port status indicators listed below. (For a more detailed description of these indicators, refer to Chapter 3.) • Indicates that the port has established a valid network connection. - Page 25 Fast SwitcHub-2se User’s Guide • When making a fiber optic connection, be sure the Tx/Rx ports on the switch are attached to the Rx/Tx ports on the other device. Verify that the fiber optic cable snaps into place when attached.
-
Page 26: Chapter 3: Hardware Reference
Chapter 3: Hardware Reference The Fast SwitcHub-2se is a highly reliable network switch that complies with IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX and 100BASE-FX) specifications. This switch delivers superior performance compared to the bridge and router solution, and at a much lower cost. By confining local traffic to the originating segment, and only forwarding cross-segment traffic to the other port, this switch meets the requirements for Ethernet and IEEE 802.3... -
Page 27: Configure Button
Fast SwitcHub-2se User’s Guide Configure Button button is located on the left front panel. This button is used to Configure select the following configuration functions: • System Performance (displays relative bandwidth utilization rate, forwarding ratio, filtering ratio, and collision ratio for each port) •... -
Page 28: Smartwatch Indicator Panel
Fast SwitcHub-2se User’s Guide SmartWatch™ Indicator Panel The comprehensive LED array on the front panel (1) shows if the unit is receiving power, (2) indicates the current display mode, (3) displays network performance for each port, (4) indicates the status of port connections, and (5) shows the result of diagnostic tests. -
Page 29: Statistical Display For System Performance
Fast SwitcHub-2se User’s Guide Statistical Display for System Performance (Utilization, Forward, Filter & Collision Display Mode) Display Mode – Port 1 – Statistical Indicators Port 2 – Value – Color: Green and Orange Active LEDs: LED rows labeled (which indicate the status of Port 1 and Port 2 respectively... - Page 30 Fast SwitcHub-2se User’s Guide For example, if network utilization reaches 1%, the LED labeled 1% will light up. However, if network utilization rises above 35%, the LED labeled 35 and all the other LEDs before it (i.e., 1, 5, 10 and 20) will also light up in rapid succession.
-
Page 31: Setting The Communication Mode
Fast SwitcHub-2se User’s Guide collisions encountered by the corresponding port. When collisions reach a level marked on the front panel display, the corresponding LED lights up. For example, if packet collision reaches 1%, the LED labeled 1% will light up. -
Page 32: Diagnostics Display Mode
Fast SwitcHub-2se User’s Guide Diagnostics Display Mode Color: Green Active LED: Diag Function: Indicates that the system is in Diagnostic mode. (Refer to the section earlier in this chapter for instructions on Configure Button how to select the display mode.) After power on, the switch automatically performs a self-diagnostic test. -
Page 33: Port Status Display
Fast SwitcHub-2se User’s Guide Port Diagnostic Test The Port Diagnostic Test checks all ports. If a problem is detected, an LED in the corresponding row (which indicates the malfunctioning port) and column (which indicates the failed component) will light up as shown below. - Page 34 Fast SwitcHub-2se User’s Guide Indicates outgoing traffic traversing the port. Transmit (TX) - LED Activity Condition Indication BLINKING LIGHT Indicates the port is transmitting packets; blinking is proportional to the traffic passing through the port. NO LIGHT No packets are being transmitted from this port.
-
Page 35: Rear Panel
Setting the Communication in this chapter. The following figure shows the rear panel. Mode Figure 3.3 The Fast SwitcHub-2se Rear Panel Ethernet Ports – The SwitcHub has 2 Ethernet ports one is used for 100BASE-TX or 10BASE-T media and the other for 100BASE-FX media. -
Page 36: Power Socket
Fast SwitcHub-2se User’s Guide Notes: 1. Both 50/125 mm and 62.5/125 mm cable are commonly available. 2. This same guage of mutilmode fiber optic cable can be used for making connections to both 10 Mbps and 100 Mbps Ethernet. Therefore, when upgrading older fiber optic Ethernet to the newer Fast Ethernet, check to see if you actually need to change your present cabling. -
Page 37: Appendix A: Troubleshooting
Appendix A: Troubleshooting Diagnosing Switch Indicators The Fast SwitcHub-2se can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems the switch may encounter. This section describes common problems you may encounter and possible solutions. -
Page 38: System Diagnostics
Fast SwitcHub-2se User’s Guide System Diagnostics Installation Verify that all system components have been properly installed. If one or more components appear to be malfunctioning, test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 39: Configuration
Fast SwitcHub-2se User’s Guide Configuration If problems occur after altering the network configuration, restore the original connections, then try to track the problem down by implementing the new changes, one step at a time. Ensure that cable distances and other physical aspects of the installation do not exceed recommendations. -
Page 40: Appendix B: Port And Cable Assignments
Appendix B: Port and Cable Assignments RJ-45 Port Figure B-1 RJ-45 Connector (on the Switch Side) MDI-X Assignment MDI Assignment Station Port 1 Cascade Port 1 Input Receive Data + Output Transmit Data + Input Receive Data - Output Transmit Data - Output Transmit Data + Input Receive Data + Output Transmit Data -... -
Page 41: Appendix C: Specifications
Appendix C: Specifications Product Specifications Basic Criteria CSMA/CD, 10/100 Mbps (auto-sensed) Access Method IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX and 100BASE-FX Standards Conformance Full duplex or half duplex Communication Mode Media Supported 10BASE-T Category 3,4,5 twisted-pair cable (100 ) 100BASE-TX Category 5 twisted-pair cable (100 ) 100BASE-FX 50/125 m or 62.5/125 m guage... -
Page 42: Appendix D: Regulatory Standards Compliance
Appendix D: Regulatory Standards Compliance EMI Warning FCC Class B Certification Accton Technology Corporation Model Numbers: ES3002-TF FCC ID: HED3002ESLCT-TF This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. -
Page 43: Voluntary Control Council For Interference (Vcci-2
Fast SwitcHub-2se User’s Guide You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Warnings 1. Wear an anti-static wrist strap or take other suitable measures to prevent electrostatic discharge whenever handling this equipment. -
Page 44: En55022 Declaration Of Conformance
Fast SwitcHub-2se User’s Guide EN55022 Declaration of Conformance This is to certify that this product is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN55022:1987 Class B (CISPR 22:1985/BS 6527:1988). -
Page 45: Safety Compliance
Fast SwitcHub-2se User’s Guide Safety Compliance Underwriters Laboratories Compliance Statement Important! Before making connections, make sure you have the correct Cord Set. Check it (read the label on the cable) against the following specification list. Operating Voltage Cord Set Specifications... -
Page 46: Sicherheitshinweise
Fast SwitcHub-2se User’s Guide Sicherheitshinweise 1. Die Steckdose muß sich in der Nähe des Gerätes befinden und leicht zugänglich sein. 2. Zum Reinigen den Stecker aus der Steckdose ziehen. Beim Reinigen keine Flüssigreiniger oder Sprays verwenden, sondern ein angefeuchtetes Tuch. -
Page 47: Appendix E: Product Support Services
Write a description of the problem, including what problems occurred, when they occurred, duration of the problems, the unit number, serial number, hardware, software and the DOS version that you are using. Then contact your dealer or Accton Technology Corporation for assistance. -
Page 48: Software Update And Upgrade Service
Fast SwitcHub-2se User’s Guide After repair, Accton will inform you of the date of delivery and the exact amount due. Please send the payment by T/T (Telegram Transfer), and Accton will send you the fixed component after receiving payment. With or without warranty, if the hardware is found to be free of defects, you will only be charged for testing and handling. -
Page 49: Technical Support
Fast SwitcHub-2se User’s Guide Technical Support Your dealer or installer is the person who understands your network and Accton units. If neither is available to help you, Accton technical support engineers are available by FAX, mail or phone. • Send your technical questions by FAX to:... -
Page 50: Limited Warranty
Fast SwitcHub-2se User’s Guide Limited Warranty Accton warrants to the original owner that the product delivered in this package will be free from defects in material and workmanship for the lifetime of the product. For the warranty to apply, you must register your purchase by returning the registration card indicating the date of purchase and including proof of purchase. -
Page 51: Return Process
Fast SwitcHub-2se User’s Guide Return Process Before you may return any Accton product to Accton, you must request an RMA number by calling, FAXing or writing Accton’s Service Department at the address listed below. If you ship the product, you must assume the risk of damage or loss in transit. You must use the original container (or the equivalent) and pay the shipping charge. -
Page 52: Accton Offices
Fast SwitcHub-2se User’s Guide Accton Offices Accton Australia, Accton Technology Corporation Unit 23, No.27 Doomben Ave., International Headquarters, Eastwood, N.S.W. 2122, Australia No. 1 Creation Rd. III, Phone: 612-8582436 Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Fax: 612-8581723 Hsinchu: Phone: 886-35-770-270,... -
Page 53: Glossary
Glossary 10BASE-T IEEE’s specifications for 10 Mbps Ethernet using twisted-pair cable (100 STP or UTP . The maximum length of cable for a point-to-point connection is 100 meters. 100BASE-TX IEEE’s specifications for 100 Mbps Ethernet using twisted-pair cable (100 STP or UTP . - Page 54 Fast SwitcHub-2se User’s Guide Daisy-Chain Port MDI port on the SwitcHub. Port 1 can be used to connect the fast Ethernet switch to other compatible switches or other network interconnection devices. Ethernet A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access and logical bus topology, and coaxial cable.
- Page 55 Fast SwitcHub-2se User’s Guide MDI-X Port (Medium Dependent Interface - Crossed) This RJ-45 port, which crosses the receive and transmit signals internally, can be used with straight-through cable to connect the switch to any workstation or server that has a properly installed network adapter card.
-
Page 56: Index
Util% • 3-4 EMI Warning • D-1 Limited Warranty • E-4 Ethernet Ports • 3-10 Link indicator • 2-9 Fast SwitcHub-2se • 1-2 Maximum Cable Length Filter Packets • 1-1 Fiber Optic • 2-9 Forward Packets • 1-1 Twisted-Pair • 2-9 Front Panel •... - Page 57 Fast SwitcHub-2se User’s Guide Port Status Indicators • 3-8 Ports 100BASE-FX • 3-10 Safety Compliance • D-4 100BASE-TX or 10BASE-T • 3-10 Setup and Configuration • 2-1 Power Loss in Fiber Optics • 2-3 SmartWatch Indicators • 3-3 Power Socket • 3-11 Standards Compliance •...
- Page 58 ES3002-TF E0596-R01 150050-101...
