Intel® IP Network Server NSW1U
Features
Support for one 64-bit Quad-Core Intel® Xeon® processor
5400 series on 45nm technology
Also supports 64-bit Dual-Core Intel® Xeon® processor
5100 series
Three-year production life (with option to extend)
Shallow 20-inch-depth
Single or redundant (optional) AC or DC power supply
Scalable Gigabit Ethernet ports
I/O bypass capability (optional)
Flash storage capability supports Intel® Z-U130 Value
Solid State Drive (VSSD) [requires TMWVSSDRIVE01W,
purchased separately]
Dual GbE
x8 PCIe
Riser
Dual GbE
Dual GbE
(Front)
Dual GbE
(Front)
NSRA0401W only

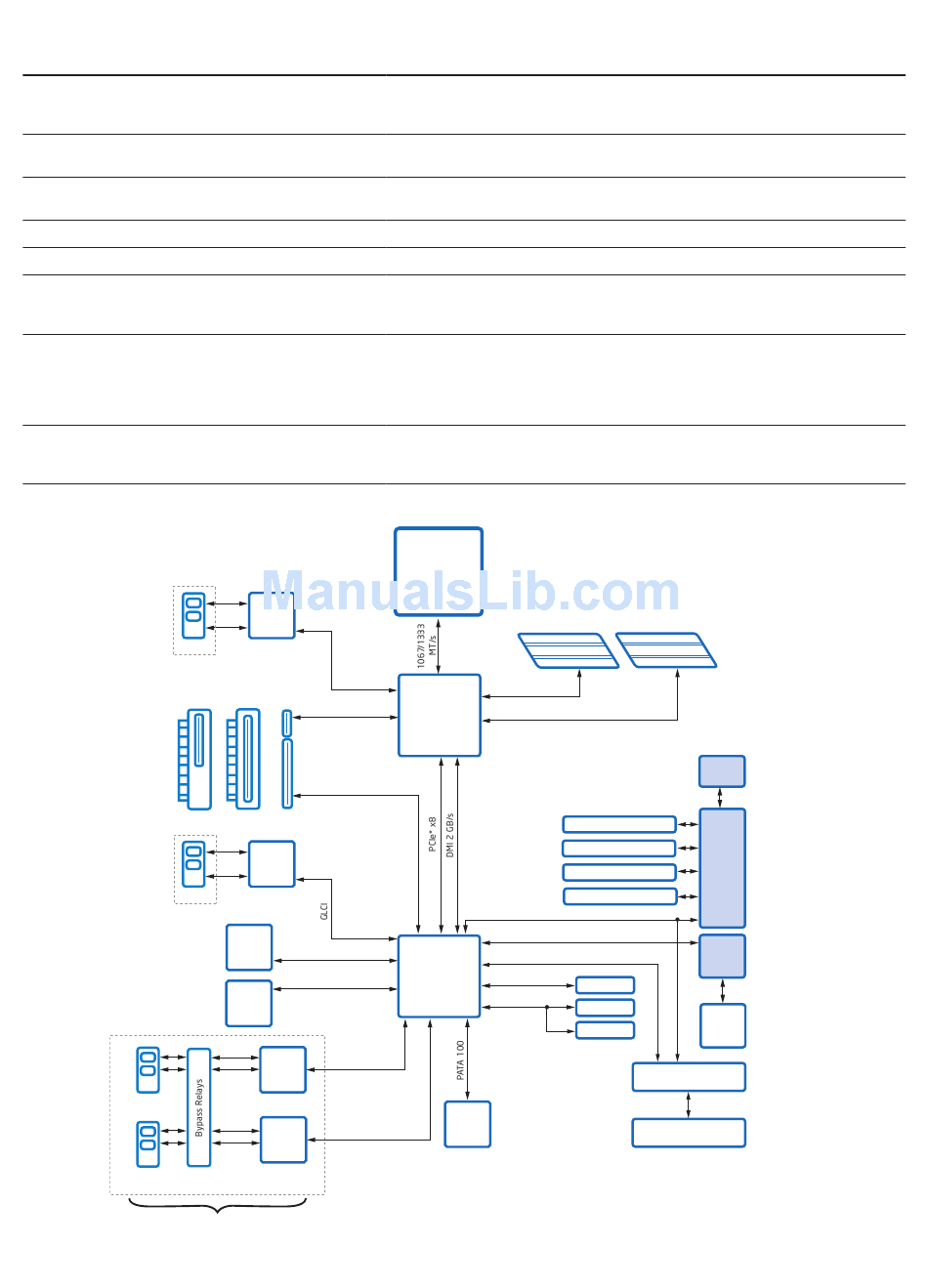

Figure 1. Intel® IP Network Server NSW1U Block Diagram (fully configured system)
Gbit LAN
Intel®
Gbit LAN
82571EB PCIe* x4
Dual GbE PHY
64-bit
PCI-X* Adaptive
Riser Slot
PCIe* x8
PCI-X 133
Gbit LAN
Intel®
Gbit LAN
82563EB
Dual GbE PHY
SATA
Drive 0
SATA
Drive 1
Gbit LAN
PCIe x4
Intel®
82571EB
Gbit LAN
Gbit LAN
Intel® PCIe x4
82571EB
Gbit LAN
Dual GbE PHY
Benefits
• New 45nm enhanced Intel® Core™ microarchitecture boosts performance on multiple
applications/user environments and data-demanding workloads
• Performance-optimized, energy-efficient processor enables denser deployments
• Continues long-life support for designs using those processors
• Reduces customer risk for long product roll-outs
• Fewer platform transitions requiring additional testing and software
• Increases installation and service flexibility
• Flexibility for installation and applications; uninterrupted operation
• Four or eight (optional) front or four rear-panel Gigabit Ethernet ports supporting
Intel® I/OAT enhance applicability to I/O-intensive applications, and allow versatility
1
in cabling
• Four front Gigabit Ethernet (GbE) bypass-enabled ports support uninterrupted
packet flow in the event of a system failure
• Programmable bypass mode with watchdog timer features real-time control,
fail-open or shut down upon power failure detection
• Four additional front or rear NIC bypass ports may be added using an available NIC
• High-speed, high-density storage, faster boot times, USB interface
Quad-Core Intel®
Xeon® Processor
5400 Series or
Dual-Core Intel®
Xeon® Processor
5100 Series
FBDIMM Memory
FBD Channel 0
Intel® 5000P
FBD Channel 1
Chipset
(Northbridge)
LPC
PCI 33 MHz
USB 2.0 (x2)
Intel® 6321ESB
USB 2.0 (x2)
(Southbridge)
USB 2.0 (x2)
PATA
Optical
Drive
FBDIMM Memory
Flash
Serial Port A (Internal)
Serial Port B (External)
SIO3
PS/2 Mouse
PS/2 Keyboard
ATI RN50
Video
Controller
Rear USBs
Front USB
Video
Memory
Intel® VSSD
(16 MB)
Intel Remote
Management Module
mii
Intel Remote
Management NIC
