Configuring the Protocol Analysis Module
7.
Verbose mode is disabled by default. When enabled, the sensor will log events. To enable it,
click verbose in the Property column, then select yes from the drop-down list in the Value
column.
8.
The sensor looks at traffic traveling in any direction on port 1722. To edit the existing port 1722
configuration, select that row in the table and click Edit Port. The Add Port Information
dialog box is displayed.
9.

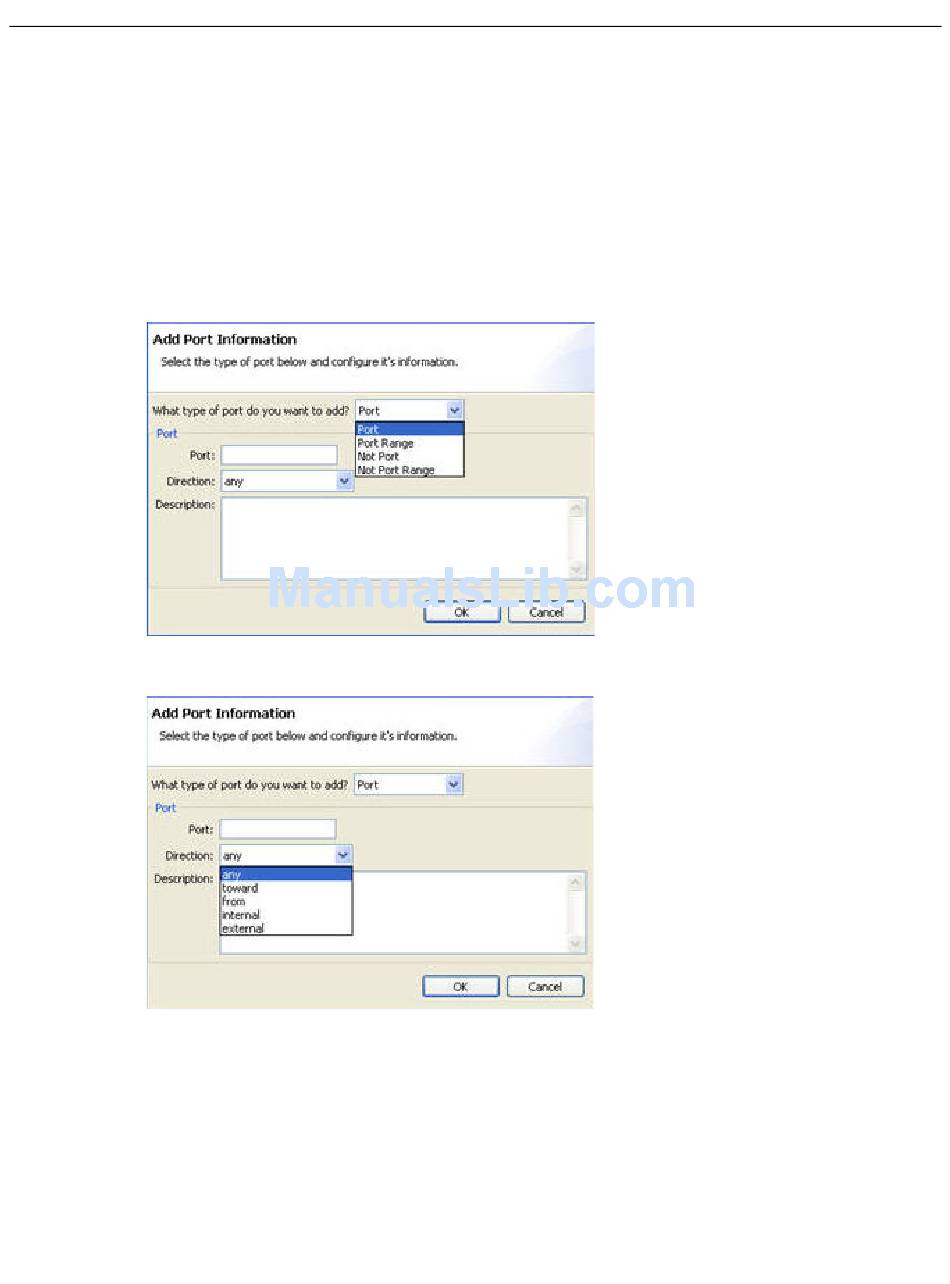

To add or exclude a port or port range for analysis, click Add Port. The Add Port Information
dialog box is displayed.
a.
b. Select the direction of the traffic to be analyzed and click OK.
2-62 Creating Network Sensor Policies
Select the type of port to add or exclude, then enter the port number or low and high
numbers for a range. Refer to
Table 2-1
on page 2-8 for a list of common port numbers.
