Configuring the Transport Layer Module
Procedure
To configure Log Session rules:
1. Click the Network Policy View icon and the Network Policies tab.
2. Expand the tree by clicking the expansion symbols and select the desired custom policy name.
The modules for that policy are displayed in the tree.
3. Click the Transport Layer Module in the tree.
4. Click the Log Session tab.

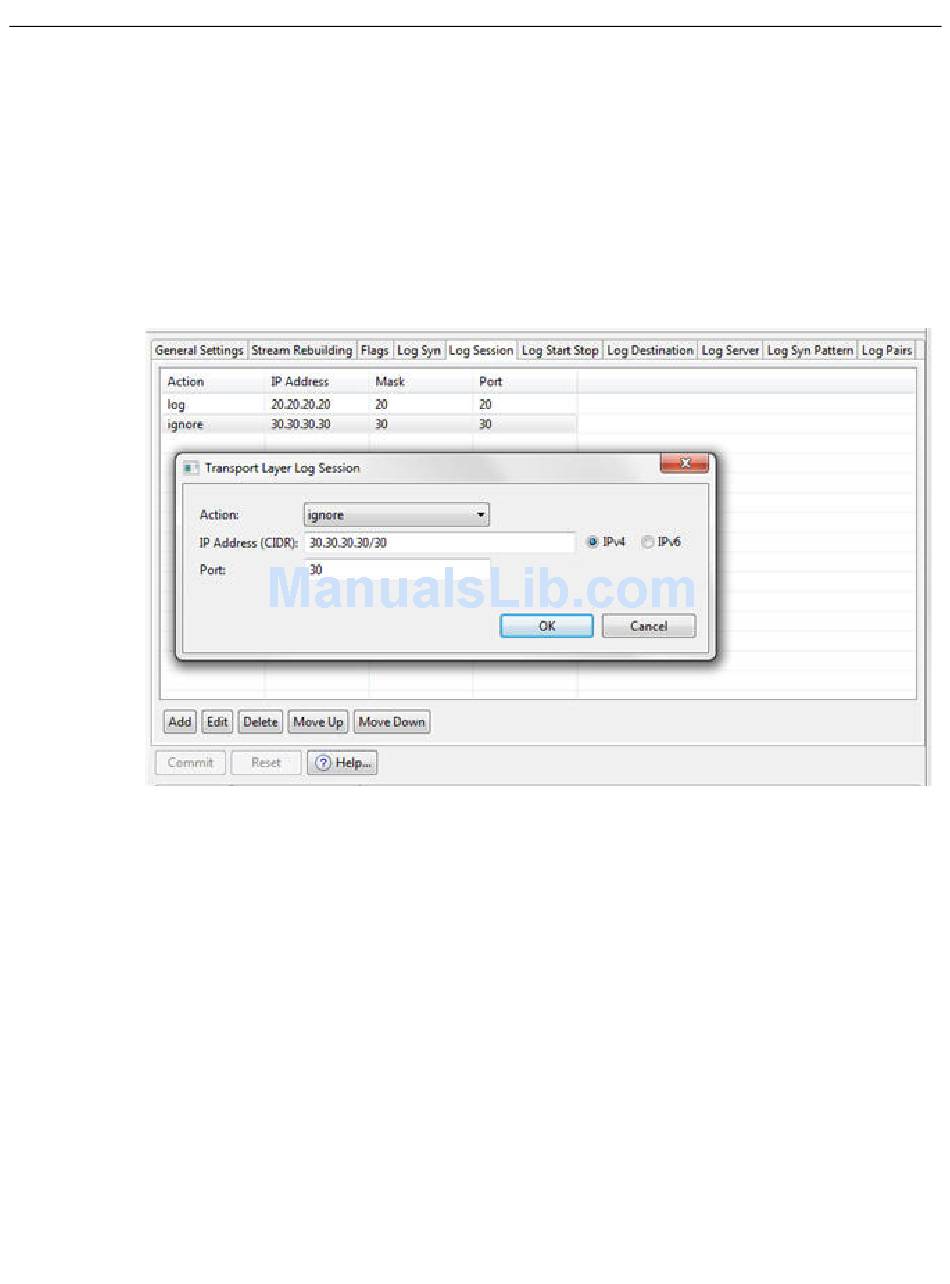

5. Click Add to add a new rule. The Transport Layer Log Session dialog box is displayed.
6. Select the desired Action, either log or ignore.
7. Enter the destination IP address or CIDR block for the rule using the following format:
<IP address>/<mask>
Select the appropriate IP version checkbox. Network masks can range from 0-32 for IPv4 and
0-128 for IPv6.
8. Enter the port number. Refer to
as a wildcard meaning any port.
9. Click OK. The rule is displayed in the table.
10. Click Edit or Delete to change or delete existing rules.
11. Use the Move Up and Move Down buttons to place the rules in the desired order.
12. Click Commit to add your changes to the policy being configured.
2-100 Creating Network Sensor Policies
Table 2-1 on page 2-8 for a list of common port numbers. Use 0
