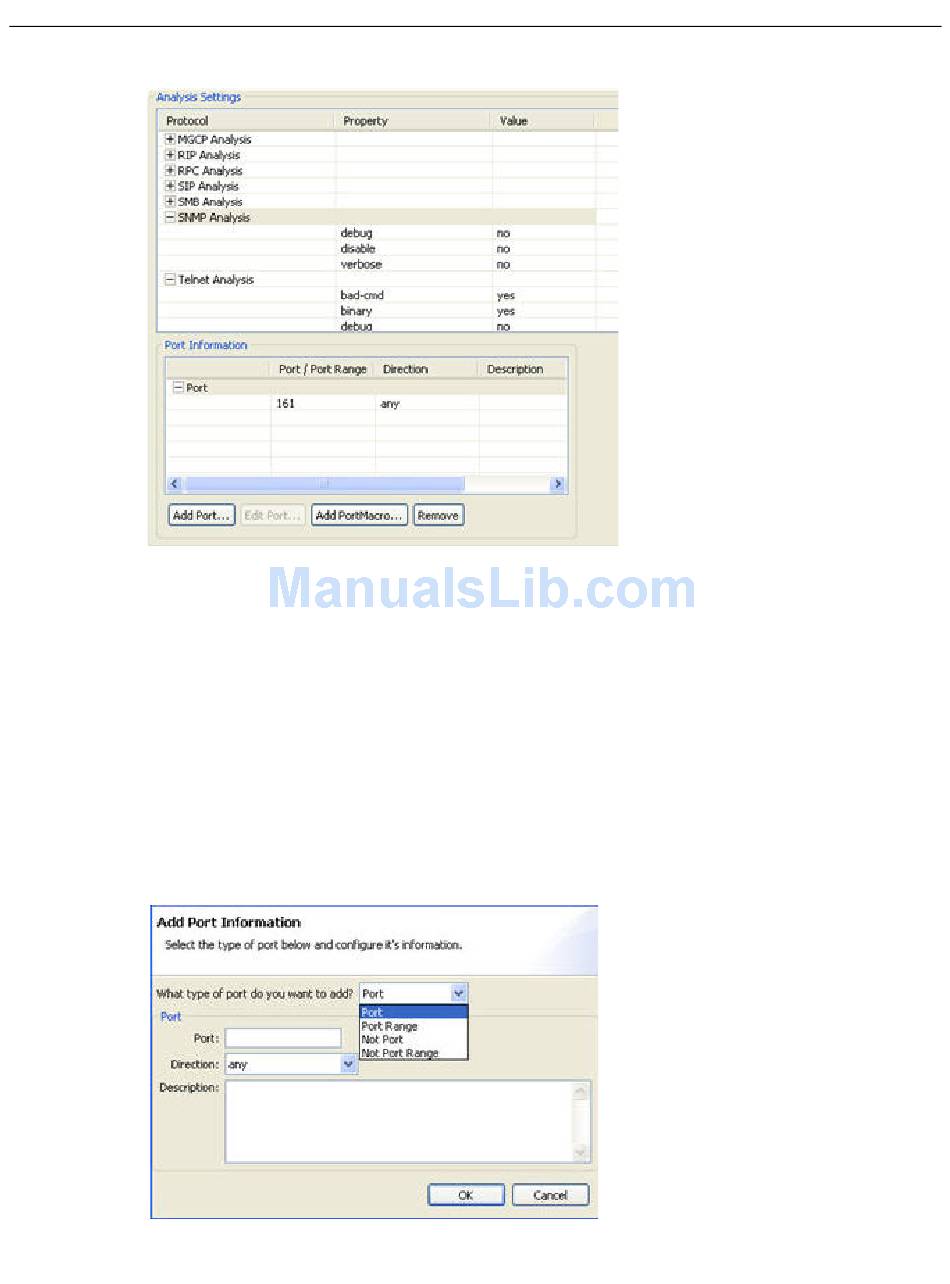

Configuring the Protocol Analysis Module
4.
Expand SNMP Analysis in the Protocol column.
5.
SNMP analysis is enabled by default. To disable it, click disable in the Property column, then
select yes from the drop-down list in the Value column.
6.
Verbose mode is disabled by default. When enabled, the sensor will log events. To enable it,
click verbose in the Property column, then select yes from the drop-down list in the Value
column.
7.
The sensor looks at traffic traveling in any direction on port 161. To edit the existing port
configuration, select that row in the table and click Edit Port. The Add Port Information
dialog box is displayed.
8.
To add or exclude a port or port range for analysis, click Add Port. The Add Port Information
dialog box is displayed.
a.
2-84 Creating Network Sensor Policies
Select the type of port to add or exclude, then enter the port number or low and high
numbers for a range. Refer to
Table 2-1
on page 2-8 for a list of common port numbers.
